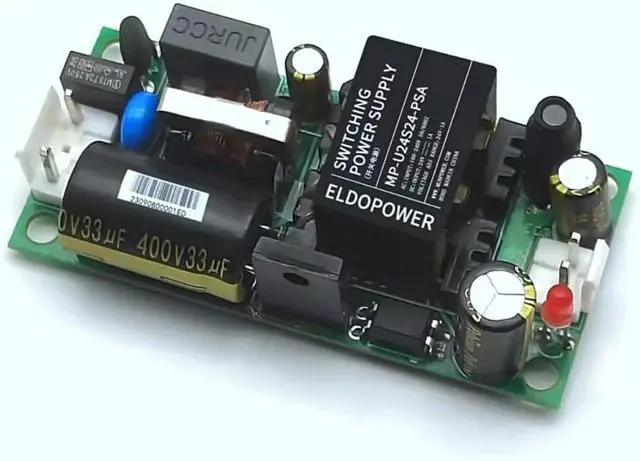

24W AC-DC 220V to 24V 1A Isolated Switching Power Supply Module Board - Model MP-U24S24-PSA

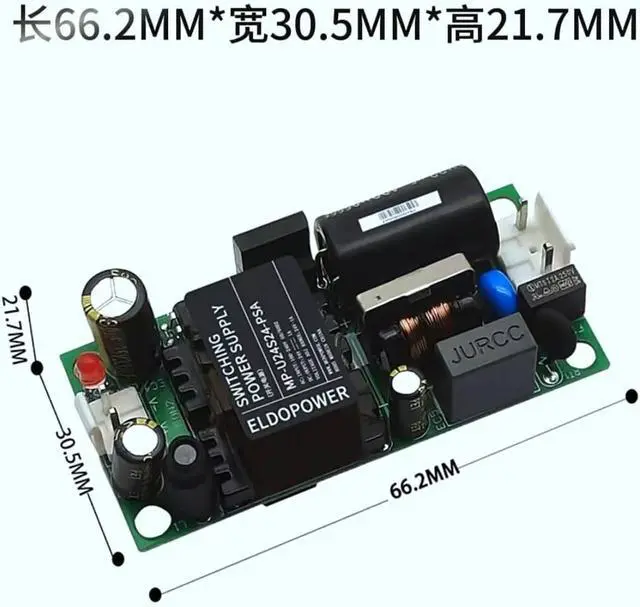

The MP-U24S24-PSA is a high-performance 24W AC-DC power supply module designed to convert an input voltage of 220V AC (or 120V-373V DC) into a stable 24V DC output with a maximum current of 1A. With compact dimensions of 66.2mm x 30.5mm x 21.7mm, this module is perfect for applications with limited space. Its bare board design promotes natural air cooling, ensuring effective thermal management. The module operates within a wide temperature range of -25°C to +60°C and features an isolation voltage rated at 3000VAC for safe use. Reliability is a key feature, supported by a long lifespan and a 3-year warranty. It also includes multiple protection functions to safeguard against input undervoltage, output overvoltage, overcurrent, short circuit, and over-temperature conditions, making it an excellent choice for industrial automation machinery and control systems.
