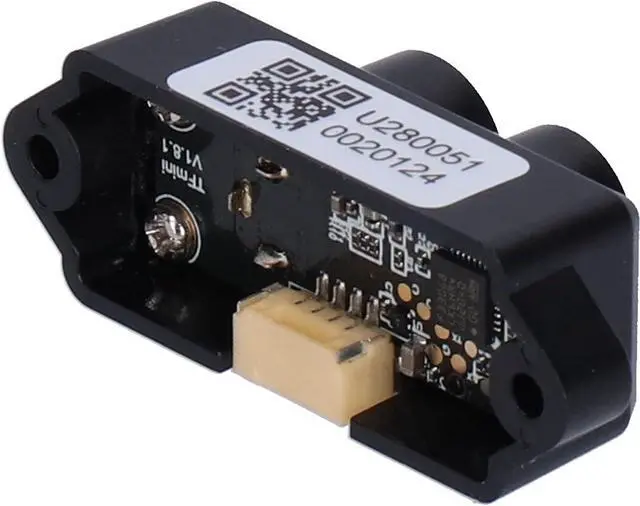

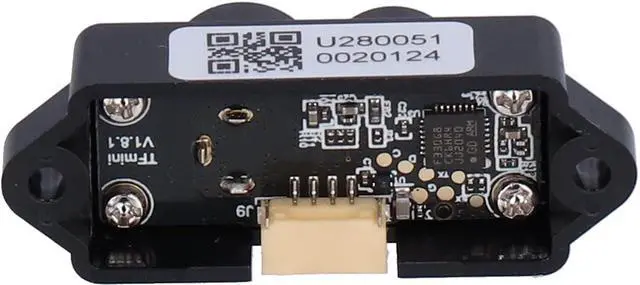

Respicefinem Sensor Uart 10×8×2 Lidar Module Range Electronic Component for Vehicle Inspection Tfminis 0.112M
- Excellent Performance More Adaptable To Different Environments Such Outdoor Strong Light, Different Temperature, Different Reflectivity, Lower Power Consumption, And More Flexible Detection Frequency
- Feature The Module Has The Characteristics Of Low Cost, Small Size, Distance Measurement, Etc., And The Distance Measurement Accuracy Is Higher, Tfmini-S
- Compatible With Uart And I2C Communication Interface At The Same Time, Be By Instruction
- Tfmini Is An Upgrade Project Based On Tfmini, Miniaturized Single Point Ranging Product, Based On Tof Time Of Fly Principle
- Multifunctional With Unique Optical,Al, And Algorithm, Mainly Realizes The Functions Of Stable, Accurate, High Sensitivity And High Distance Measurement, Tfmini-S
+
+
Overview
Specs
Reviews
Item Type: Mini Lidar Module
Material: ABS, PCB
Main Application Scenarios: Pedestrian Detection, Vehicle Detection, Smart Isolation Door and Altimeter
Measuring Range: Approx. 0.1m~12m / 0.3~39.4ft
Accuracy: ±6cmat)0.1-6m)±1%at)6m-12m)
Default Distance Unit: Cm
Distance Resolution: 1Cm
Signal Receiving Angle: 2°
Output Frequency: 1~1000Hz (Adjustable)
Input Voltage: 5V±0.1V
Average Current: 140mA
LPK: 200mA
Power Consumption: 700mW
Communication Level: LVTTL (3.3V)
Package List

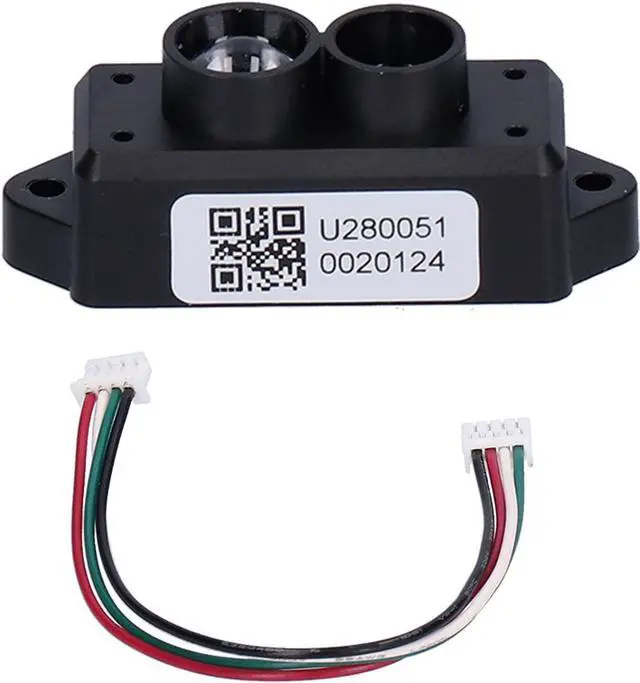

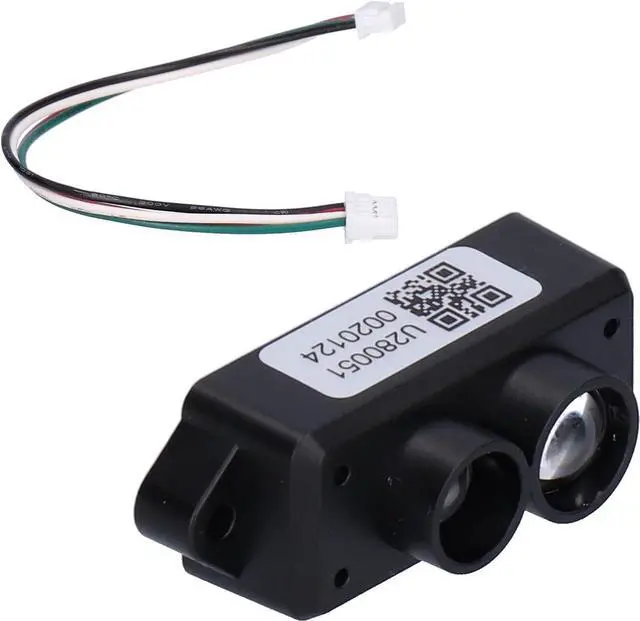

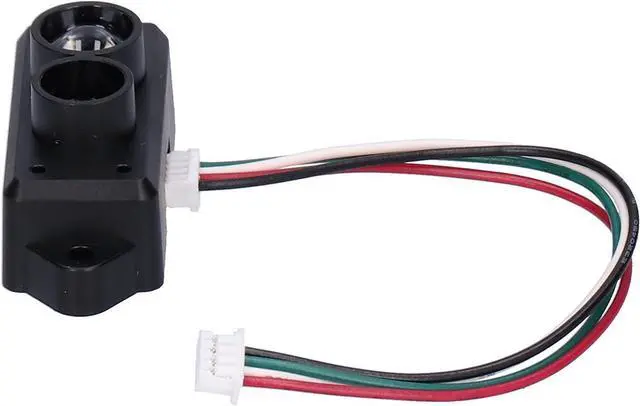

1 x Module1 x Connection Line
Note:
1. The product itself has no polarity protection and overvoltage protection, please connect and supply power correctly.
2. The working temperature of the product is 060, please do not use it outside this temperature range to avoid risks.
3. The storage temperature of the product is 2075, please do not store it outside this temperature range to avoid risks.
4. Do not open the shell for assembly or maintenance other than this instruction, so as not to affect the product's protective performance and cause the product to fail.
