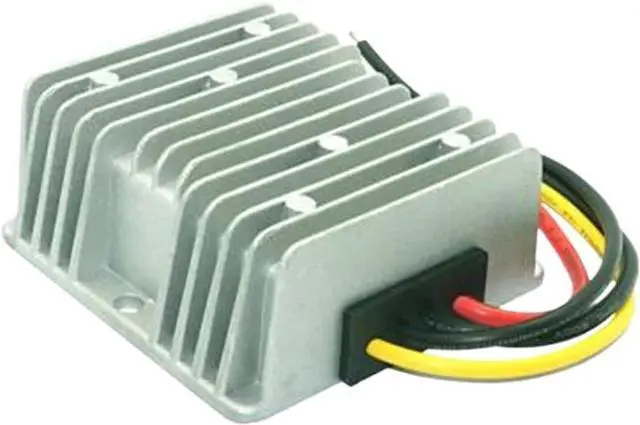

DC DC Converter 12V to 19V 10A Laptop Power Supply with Waterproof IP68

Converters
Features:
1. full power & stable current output
2 Imported components
3. Wide input voltage from 9-18Vdc
4. Industry grade DC12V to DC19V booster converter, high efficiency up to 94%
5. waterproof & antishock protection Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and so on. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
Specifications:
Model
SDS-12S1910
Input rated voltage
12V DC
Input voltage range
9-18V DC
Efficiency
95% (half load), 94% (full load)
Output voltage
19V DC
Output current
10 Amps
Output rated power
190 Watts
Output peak power
230 Watts
Voltage regulation
<; 1%
Load regulation
<; 2%
<; 270mV
No-load current 25mA
Working temperature
-40°c ~ +80°c
Waterproof rating
IP68
Over-voltage protection
YES
Over-current protection
YES
Over-temperature protection
YES
Short-circuit protection
NO
Machine size
74*74*32mm
Package size
98*82*34mm
N. Weight
290g
G. Weight
300g
Cooling way
Free air convection
Other
Carton packaging
==========
Output Power : 101 - 200W
is_customized : Yes
Model Number : SDS-12S1910
Output Type : SINGLE
Product Name : DC/DC Converter
Rated Power : 190W
Efficiency : up to 94%
Working Temperature : -40-+80degree C
Waterproof IP : IP68
Over Current Protection : Yes
Over Temperature Protectopn : Yes
Short Circuit Protection : No
Over Load Protectipn : Yes
Size : 74*74*32mm
Output Voltage : 19VDC
Output Current : 10A
