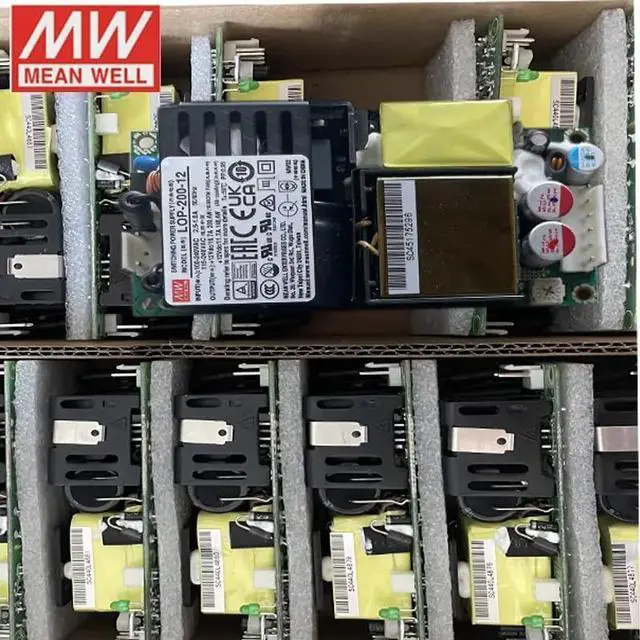

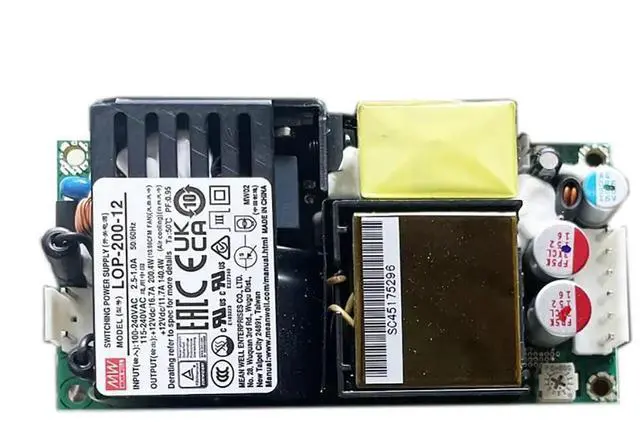

Original Mean Well LOP-200-12 200W 12V PCB Open Frame 110V/220VAC to 12V DC Green Power Unit PSU Transformer Switching Power Supply

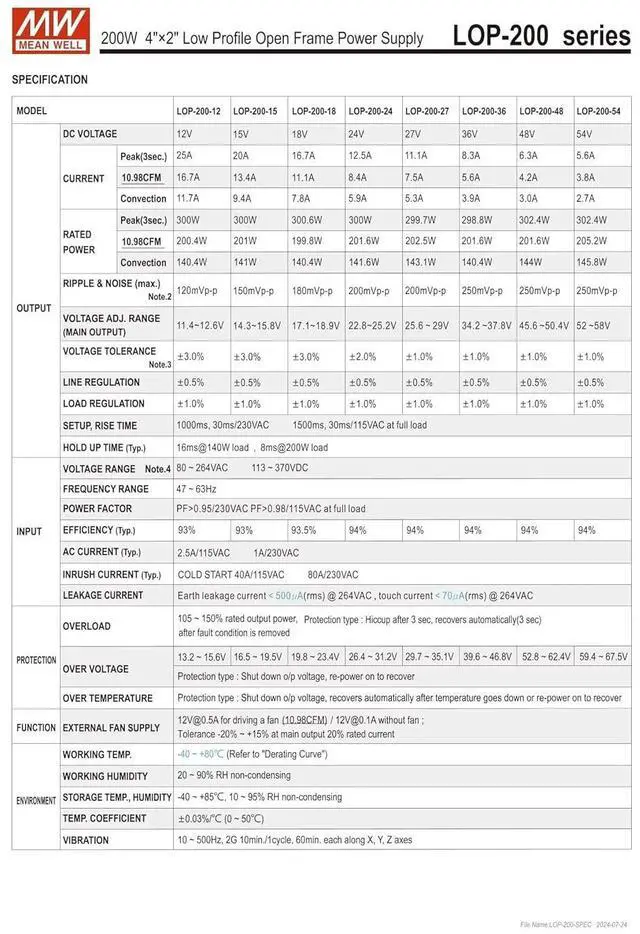

- Model LOP-200-12 PCB type power supply, 16.7A 200.4W(10.98CFM), 11.7A 140.4W(Convection)
- 4x 2 compact size with low profile(25.4mm)
- Full range 80~264VAC input and built-in PFC, no-load standby <0.5W
- 140W convection, 200W with fan 10.98CFM forced-cooled
- Extremely low leakage current, 2*MOPP
- Suitable for a broader range of applications, including telecommunications equipment, medical devices, factory automation, household devices, and more.
- Protection functions: Short Circuit, Overload, Overvoltage, Over Temperature
+
+
Overview
Specs
Reviews

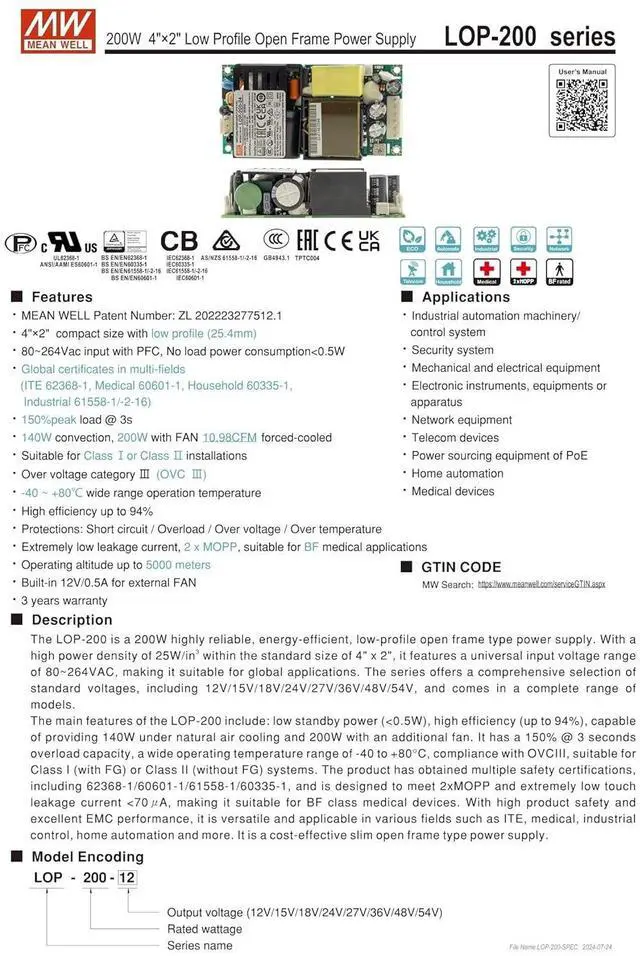

Features
MEAN WELL patent number ZL 202223277512.1
Standard universal ultra low profile dimensions 4" x 2" x 1" (L x W x H)
80~264Vac input and built-in PFC, no-load standby <0.5W
Passed international certifications in multiple fields (ITE/Medical/Industrial/Household)
Comply with 2xMOPP, suitable for Type BF medical applications
Comply with 2xMOPP, suitable for Type BF medical applications
Delivers 150% peak power for up to 3 seconds
Suitable for Class I or Class II systems
Operating temperature -40~+80
Maximum efficiency reaches 94%
Protection functions: Short Circuit, Overload, Overvoltage, Over Temperature
Extremely low leakage current (<500µA to ground, <70µA to contact)
Can operate at an altitude of 5,000 meters
Built-in 12V/0.5A auxiliary power supply
3 years warranty
Applications
Industrial automation machinery/control system
Security system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Network equipment
Telecom devices
Power sourcing equipment of PoE
Home automation
Medical devices
MEAN WELL patent number ZL 202223277512.1
Standard universal ultra low profile dimensions 4" x 2" x 1" (L x W x H)
80~264Vac input and built-in PFC, no-load standby <0.5W
Passed international certifications in multiple fields (ITE/Medical/Industrial/Household)
Comply with 2xMOPP, suitable for Type BF medical applications
Comply with 2xMOPP, suitable for Type BF medical applications
Delivers 150% peak power for up to 3 seconds
Suitable for Class I or Class II systems
Operating temperature -40~+80
Maximum efficiency reaches 94%
Protection functions: Short Circuit, Overload, Overvoltage, Over Temperature
Extremely low leakage current (<500µA to ground, <70µA to contact)
Can operate at an altitude of 5,000 meters
Built-in 12V/0.5A auxiliary power supply
3 years warranty
Applications
Industrial automation machinery/control system
Security system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Network equipment
Telecom devices
Power sourcing equipment of PoE
Home automation
Medical devices
