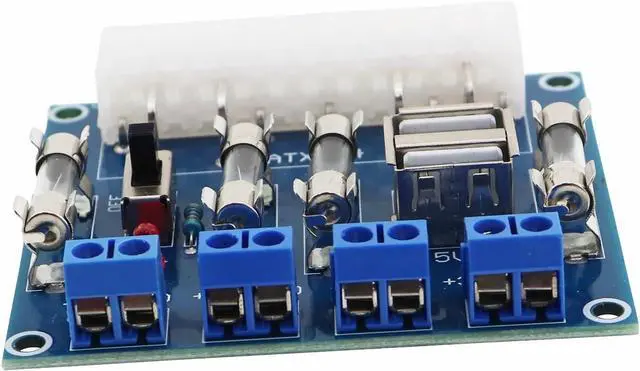

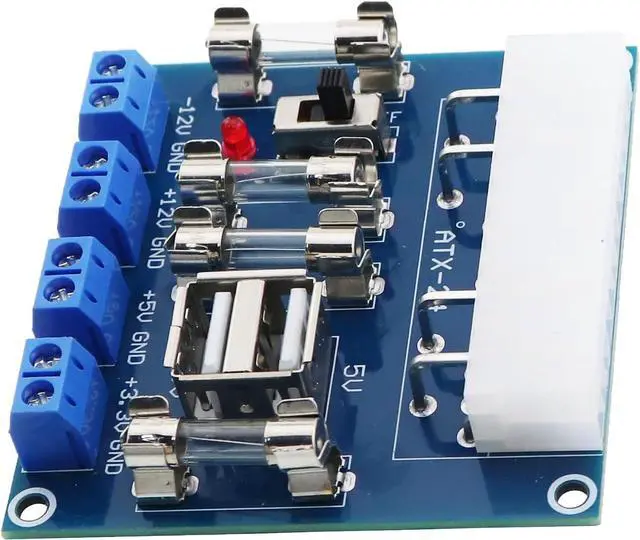

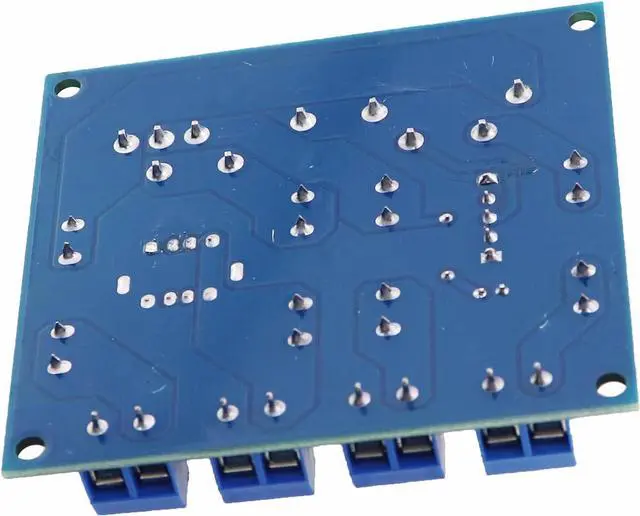

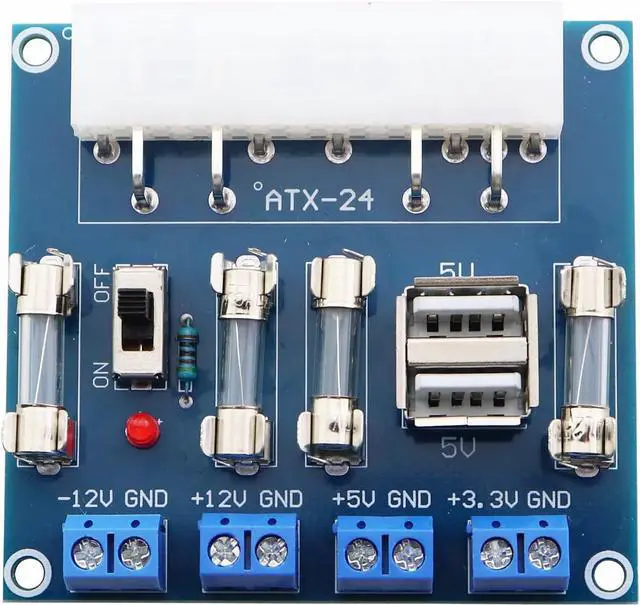

MDXing ATX Transfer Board 24-Pin Desktop Power Supply Board Computer Power Adapter Board Adapter Lead Module Power Supply Output for Low Voltage Power Supplies Developing Physical Computing Projects
- The 24-pin or 20-pin plug wires of the desktop chassis power supplies correspond to the sockets on the ATX power module boards, which transmit voltage and current to each of the protective fused wires, which are then distributed in groups of four corresponding to the four outputs.
- With power light and power switch.
- Provides quick access to desired typical voltages, including 3.3V, 5V, 12V, and -12V
- Each output channel has a replaceable 5A fuse and corresponding ground connection, and the terminals are easy to connect.
- On-board standard 24pin ATX port, power indicator and power switch for easy control, ideal for DIY low voltage power supply for developing physical computing projects (embedded systems)
+
+
Overview
Specs
Reviews

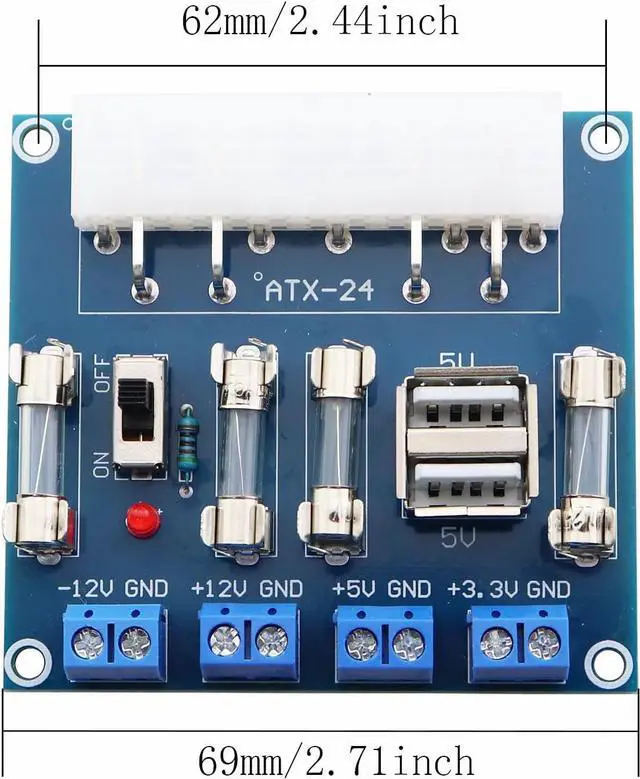

Product Size:69mm/2.71inch
Compatible Ports:ATX(Compatible with some BTX types)
Number of Output Groups:Four output voltage groups
Number of PIN:24PIN
Switch:Yes
Note: 12V can not be loaded, it is only a motherboard to provide a logical potential usually only 300MA or so.
Package Includes:1xATX transfer board
Compatible Ports:ATX(Compatible with some BTX types)
Number of Output Groups:Four output voltage groups
Number of PIN:24PIN
Switch:Yes
Note: 12V can not be loaded, it is only a motherboard to provide a logical potential usually only 300MA or so.
Package Includes:1xATX transfer board
