FENG GUO CP2102 USB to IRDA Near Infrared IR Adapter Cable Compatible Electricity,Gas,Water Meter Reading Data(1.5M,USB Version)

CP2102 m/ic-r/o USB/ USB to IRDA Near Infrared IR Adapter Cable Compatible Electricity Meter,Gas Meter,Water Meter Reading Data

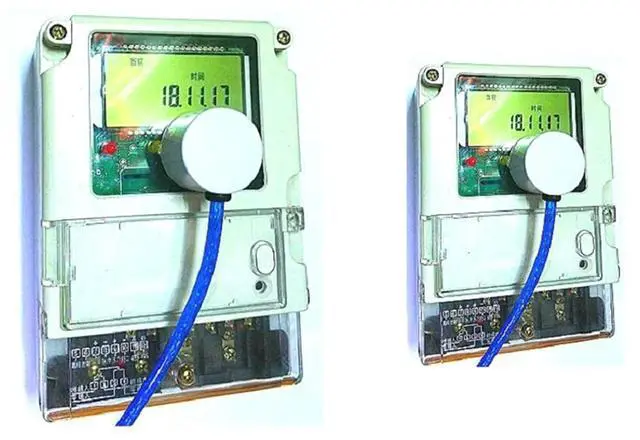

Application: Data collection of electric energy meters, gas meters, water meters
New former CP2102 imported chip, USB interface power supply, no need Compatible external power supply.
Support multiple versions of operating system, MacOS, Linux and other systems.
Industrial-grade meter reader, Near infrared, wavelength 940nm.

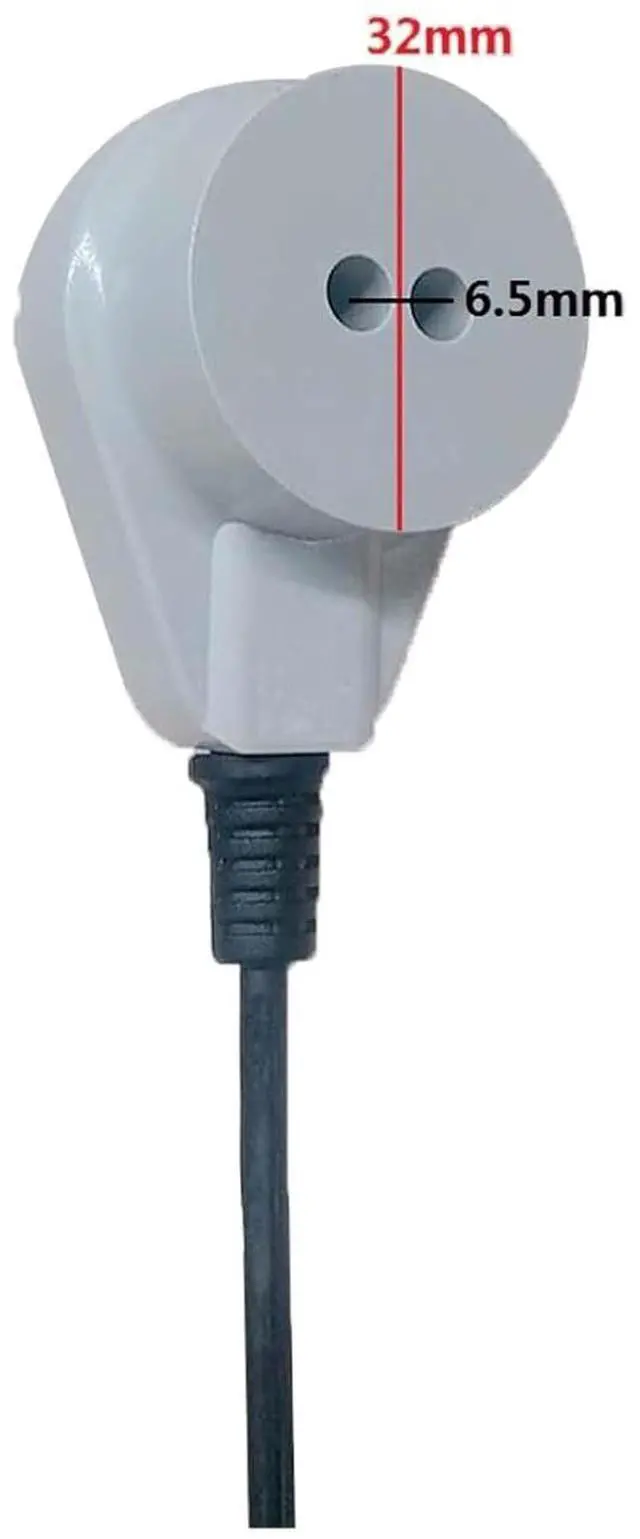

Infrared head size: diameter 32mm,transmitting and receiving distance: 6.5mm (size is Compatible reference only, tolerance ±2mm)
IEC standard industrial grade, the converter adopts CP2102 chip, ±15KV ESD protected transceiver circuit, Taiwan Everlight industrial-grade optical receiver/transmitter.
Transparent transmission, supported full protocol signal conversion, such as IEC62056-21, IEC1107, DLMS, MDBUS, etc. The transmission rate is: 300/600/1200/2400/4800/9600/19200bps.
Installation: 25mm * 15mm * 5mm galvanized, strong adsorption (IEC62056 regulation), it is easy to fix on the optical interface device.
Environment: specified working range -25-70.

F/;TD/;1 DRIVER DOWNLOADING:https://ftdichip.com/drivers/vcp-drivers/
INSTALLATION GUIDELINE:https://ftdichip.com/document/installation-guides/
If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.
If you have special requirements, such as cable length, wire gauges and pinouts, please consult to me online or leave me a message.
