$142.99
Ships from China.
Sold by changshacanboyidianzishangwu
Shipped by changshacanboyidianzishangwu
Meet Your Seller

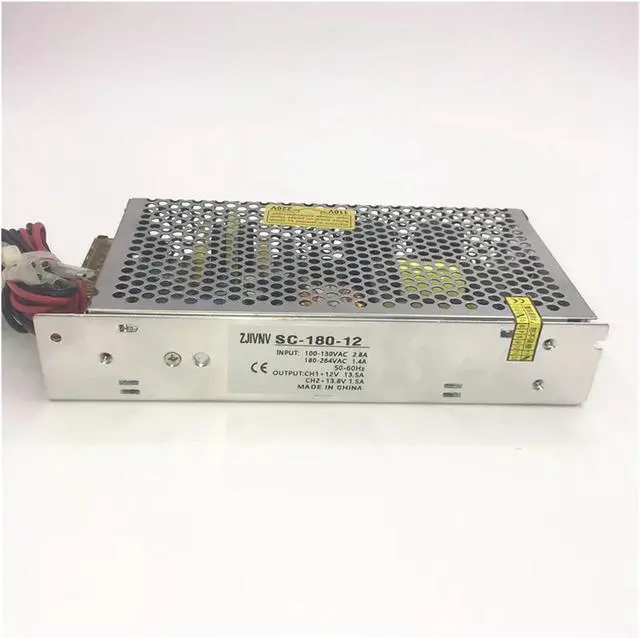

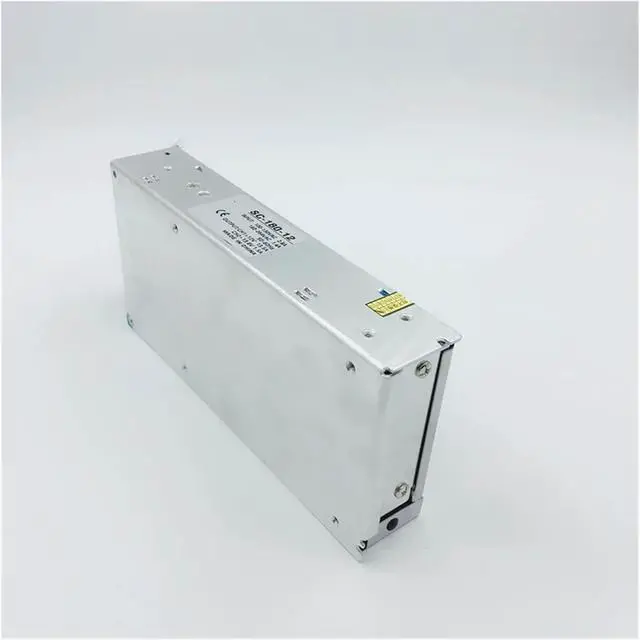

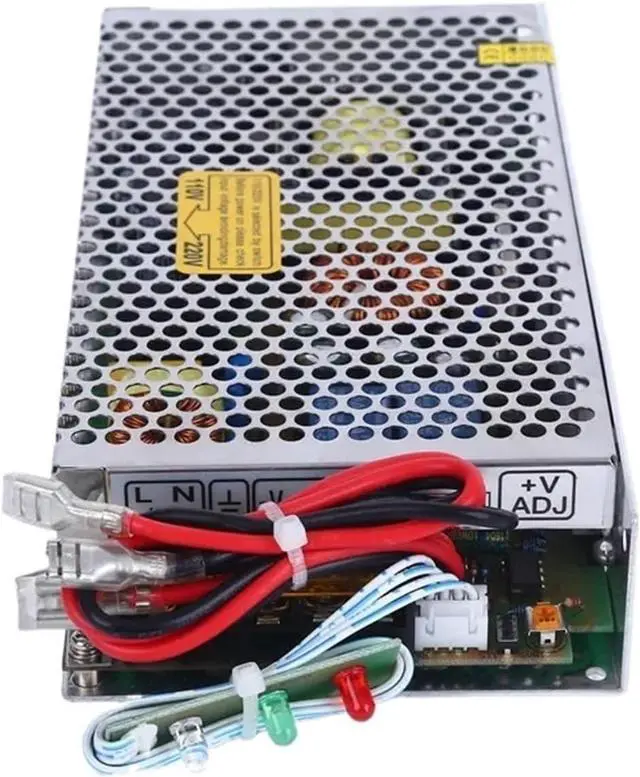

180W 12V 13.5A Universal AC Charge Function Monitor Switching Power Supply Input Battery Charger Output 12VDC for RV, Car, Computer, Lab
- 1. Powerful and Versatile: Our 180W 12V 13.5A Universal AC Charge Function Monitor Switching Power Supply is designed to provide efficient and reliable power supply for a wide range of devices.
- 2. Precise and Stable Output: Featuring a ±2% voltage tolerance and a current range of 0~15A, our switching power supply ensures a stable and consistent power output.
- 3. Reliable Protection Mechanisms: We understand the importance of protecting your devices from potential hazards. That's why our switching power supply comes with multiple protection features, including over load protection, battery protection (at low voltage 9.5~11V), and leakage current protection.
- 4. Efficient and Energy-saving: With an efficiency rating of 81%, our switching power supply minimizes energy waste while providing optimal performance.
- 5. Compact and Convenient Design: With a product size of 199*98*38mm (L*W*H), our switching power supply is compact Its single output type and frequency of 50/60 HZ make it suita
+
+
Overview
Specs
Reviews
Specification:
Model SC-180-12 SC-180-24
output DC voltage CH1:12V CH2:13.8V CH1: 24V CH2:27.6V
Voltage tolerance ±2% ----- ±1% -----
Rated current 13.5A 1.5A 6.5A 1A
Current range 0~15A ----- 0~7.5A -----
Rated power 182.7W 182.7W
Ripple&noise 120mvpp -- 180mvp-p -----
DCvoltage ADJ.range CH1:10.3~13.8V CH1:21.3~27.5V
input Voltage range 90~132VAC/ 180VAC~264VAC Select by switch ,237~370VDC
frequency 47~63HZ
AC current 2.8A/115VAC, 1.4A/230VAC
efficiency 81% 83%
Inrush current Cold start current 30A/115VAC,50A/230VAC
<; 1mA/240VAC
protection Over load
Rated output power110%~150% start over load protection
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
Battery protection
At low voltage
9.5~11V
20~22V
Output Power : 51 - 100W
Model Number : SC-180-12
Output Frequency : 50/60 HZ
Output Type : SINGLE
Product size : 199*98*38mm (L*W*H)
Output power : 180W
Output Current : 13.5A
Output Voltage : 12VDC
Model SC-180-12 SC-180-24
output DC voltage CH1:12V CH2:13.8V CH1: 24V CH2:27.6V
Voltage tolerance ±2% ----- ±1% -----
Rated current 13.5A 1.5A 6.5A 1A
Current range 0~15A ----- 0~7.5A -----
Rated power 182.7W 182.7W
Ripple&noise 120mvpp -- 180mvp-p -----
DCvoltage ADJ.range CH1:10.3~13.8V CH1:21.3~27.5V
input Voltage range 90~132VAC/ 180VAC~264VAC Select by switch ,237~370VDC
frequency 47~63HZ
AC current 2.8A/115VAC, 1.4A/230VAC
efficiency 81% 83%
Inrush current Cold start current 30A/115VAC,50A/230VAC
<; 1mA/240VAC
protection Over load
Rated output power110%~150% start over load protection
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
Battery protection
At low voltage
9.5~11V
20~22V
Output Power : 51 - 100W
Model Number : SC-180-12
Output Frequency : 50/60 HZ
Output Type : SINGLE
Product size : 199*98*38mm (L*W*H)
Output power : 180W
Output Current : 13.5A
Output Voltage : 12VDC
