Portable DC Power Supply Adjustable for Maintenance IPS HD Screen Mini Output 0-30V 0-5A 0-150W

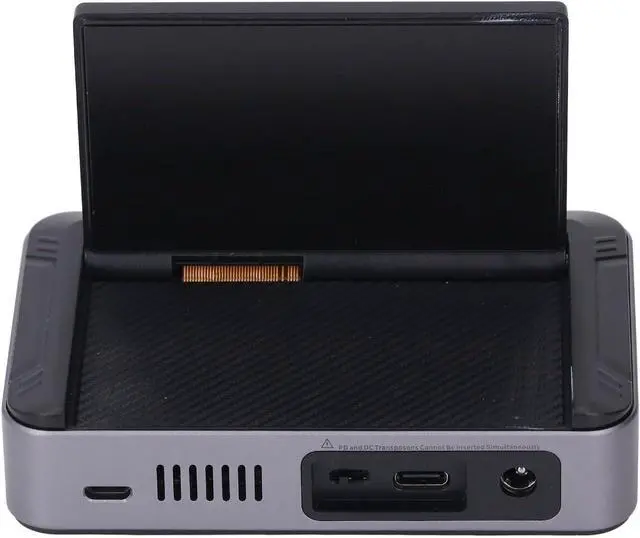

[Versatile Input] Supports pd, qc fast charging protocols, power bank, and dc power input for flexible use in various maintenance and debugging tasks.
[] Delivers stable output with minimal power ripple, ideal for powering sensitive devices without any disturbances or overshoot.
[Highly Adjustable] Enjoy customizable output voltage from 0-30v, current from 0-5a, and to 150w with this programmable dc power supply.

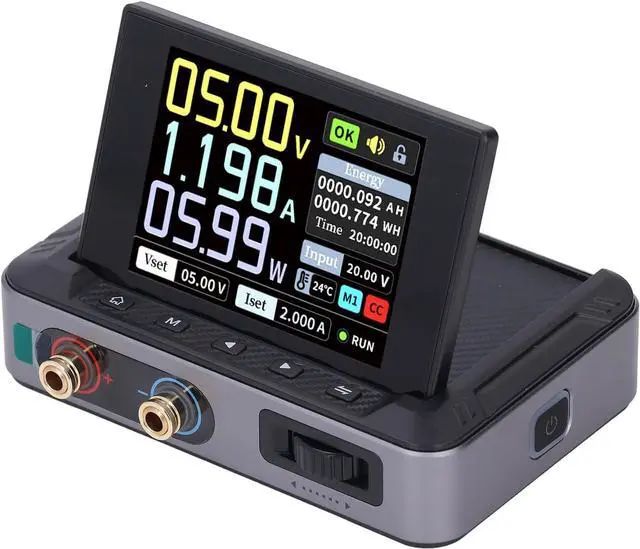

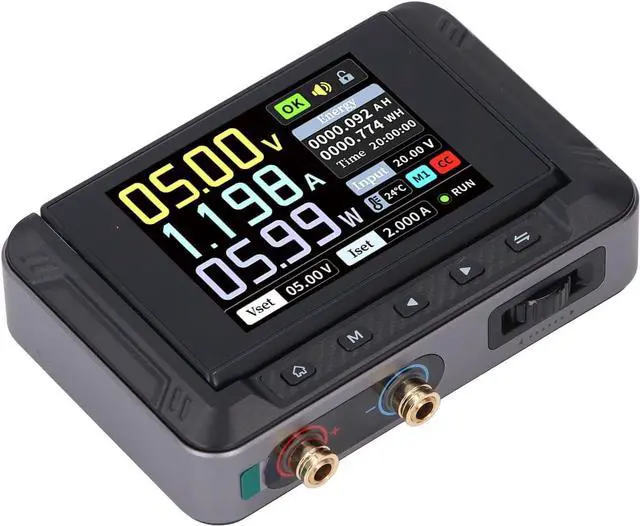

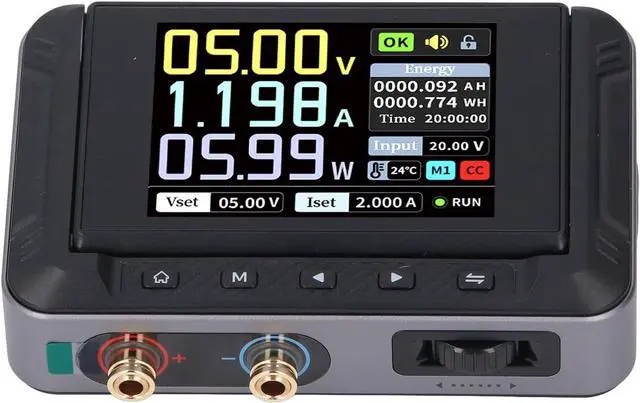

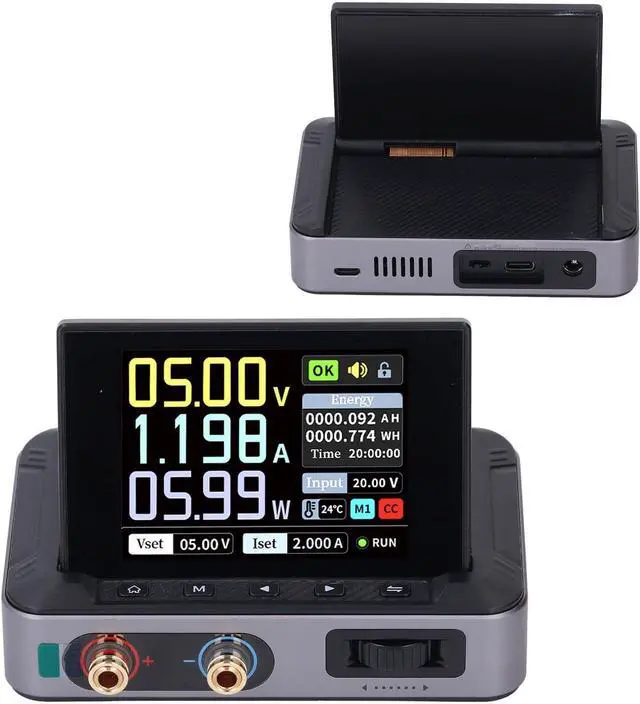

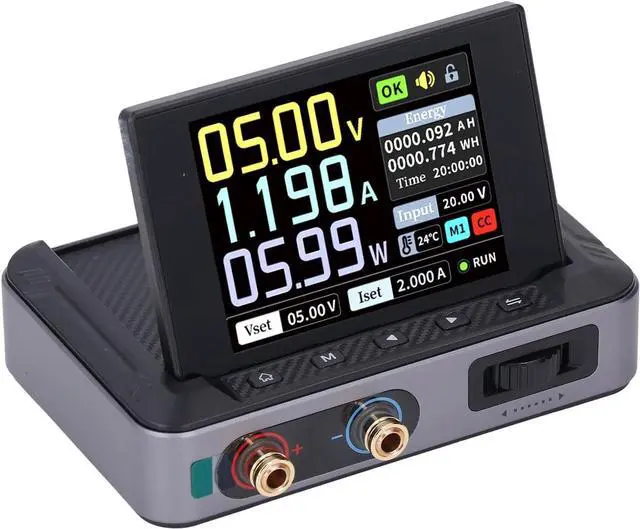

[Crystal Clear Display] The hd color ips screen and 90° flip design offer multiple viewing angles to easily monitor voltage, current, and power in real-time.
[Maximum Safety] Features multiple protection mechanisms including over voltage, over current, overload, over temperature, and more to ensure peace of mind during operation.

Spec:

Item Type: Portable DC Power Supply
Material: ABS
Model: DPS-150
Input Voltage: DC5.0V-32V
Input Current: 100mA-5A
Support: PD and QC Quick Charging Protocols
Setting Resolution: Voltage: 10mV, Current: 1mA
Readback Accuracy: Input Voltage: 0.2%±5mV, Output Voltage: 0.1%±10mV, Output Current: 0.1%±10mA (0-3.5A)
Operating Environment: 0-40, 0%-75%RH
Output Voltage: 0-30V
Output Current: 0-5A
Output Power: 0-150W
Setting Accuracy: Voltage: 0.1%±5mV, Current: 0.1%±3mA
Load Regulation: 0.49%
Full Load Efficiency: 96.30%
Protecting Mechanisms: Over Voltage, Over Current, Overload, Over Temperature, Reverse Input, Reverse Output, Under Voltage Protections

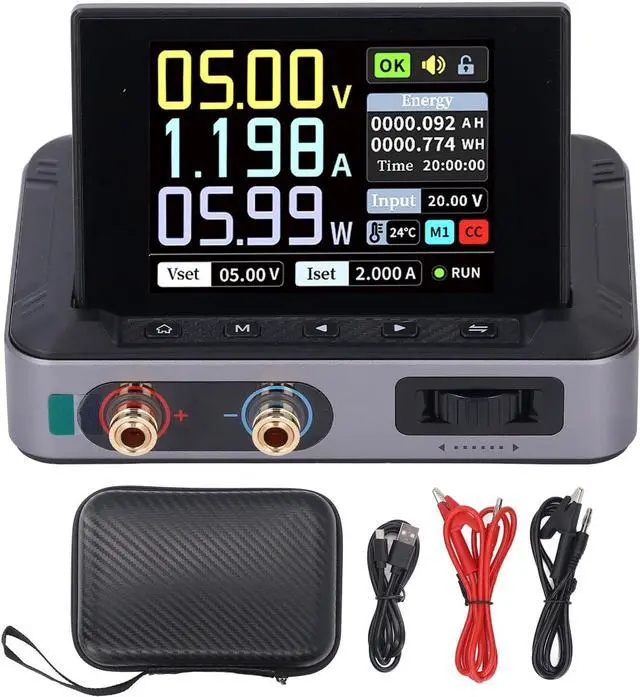

Package List:
1 x Portable DC Power Supply
2 x Crocodile Clamp/Holder Cables
1 x Data Cable
1 x Storage Bag
1 x User Manual


How To Use:
Take out the product, install and use.
