DC12V 300W 0/1-10V TRIAC Waterproof IP67 Power Supply (12V 300W 0-10V+Triac)
- Compatible with 0/1-10V DC dimmer and AC TRIAC Control system, Built-in 3-in-1 dimming via 0-10V DC, PWM signal or resistance, AC Triac dimming, Dimming range: 0-100%
- Universal LED power supply converts AC voltage to 12V DC. AC input range 100-130V, Output 12V 300W, Small volume, low weight and high efficiency(88%)
- Short circuit, over-load, over-voltage, over-current, and over-temperature protection, Maintains color temperature and brightness
- 100% Waterproof IP67 Level, perfect for using in the complicated environment. Suitable for Waterproof LED strip lighting, indoor/outdoor or Soil waterproof LED lights, and LED decorative lighting
- New craft design and full Aluminum alloy housing case with advanced heat sink design, LED transformer certification: CCC,CE,UL,ROHS etc. UL-Listed code: E498189
+
+
Overview
Specs
Reviews
Features:
The 0/1-10v and TRIAC 2 in 1 dimmable 300W power transformer provides a safe and effective way for users to tap into and utilize 100-130Volt AC power sources and convert this current to 12 Volts DC, it allows you to control the brightness of 12V LED strip lights, outdoor waterproof led lights, and more from a standard TRIAC and 0-10v wall panel dimmer.

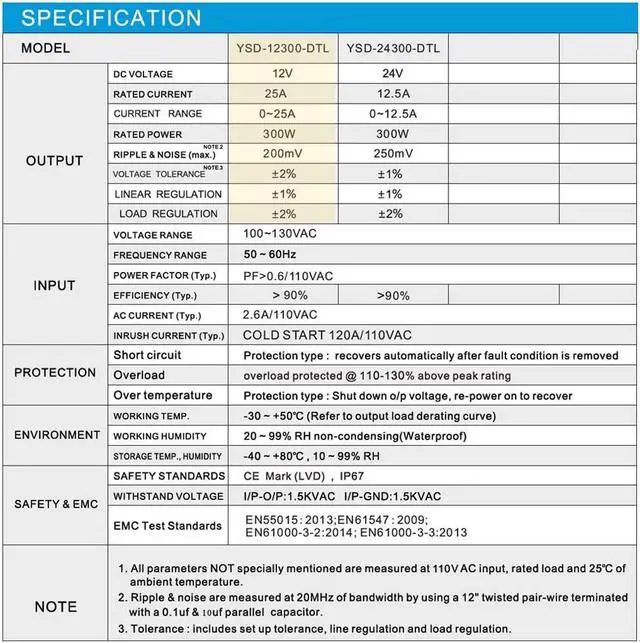

Product Specifications:
Input: 100-130VAC, 50/60HZ
Output: 12V DC , 25A
Wattage: 300W
Dimming range: 0-100%
Working Temperature: -40 to +80, 10%-99%RH

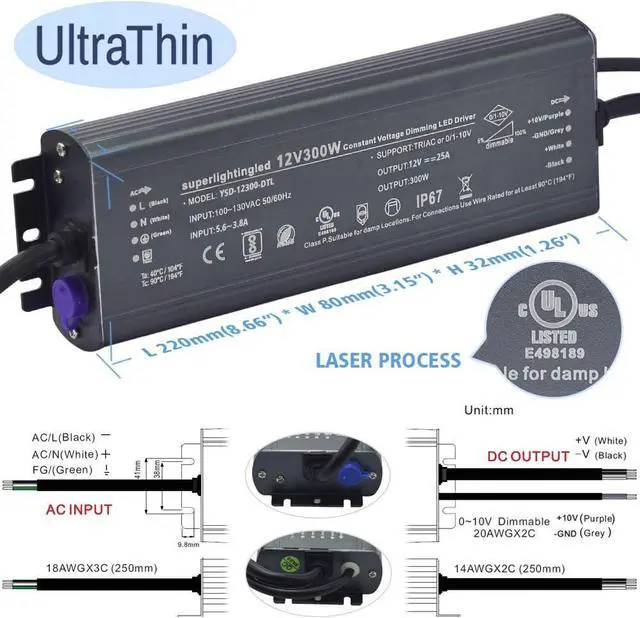

Dimensions: L 220mm/8.66"* W 80mm/3.15"* H 32mm/1.26"
Waterproof: IP67, Internal Fully waterproof irrigation treatment, can be used in water or soil
Output Efficiency: 88%
Weight: 2.2 pounds
Warnings:
1. Don't open or modify the led power supply. The input voltage do not more than 130V
2. Please leave children, kids far away from high voltage power source.
3. Please use it under professional electrician's guides.
4. Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Package list:
1 * 300W Waterproof Power Supply
1 * Product parameters
1 * UL certificate
2 * waterproof wire terminals
The 0/1-10v and TRIAC 2 in 1 dimmable 300W power transformer provides a safe and effective way for users to tap into and utilize 100-130Volt AC power sources and convert this current to 12 Volts DC, it allows you to control the brightness of 12V LED strip lights, outdoor waterproof led lights, and more from a standard TRIAC and 0-10v wall panel dimmer.
Product Specifications:
Input: 100-130VAC, 50/60HZ
Output: 12V DC , 25A
Wattage: 300W
Dimming range: 0-100%
Working Temperature: -40 to +80, 10%-99%RH
Dimensions: L 220mm/8.66"* W 80mm/3.15"* H 32mm/1.26"
Waterproof: IP67, Internal Fully waterproof irrigation treatment, can be used in water or soil
Output Efficiency: 88%
Weight: 2.2 pounds
Warnings:
1. Don't open or modify the led power supply. The input voltage do not more than 130V
2. Please leave children, kids far away from high voltage power source.
3. Please use it under professional electrician's guides.
4. Please do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
Package list:
1 * 300W Waterproof Power Supply
1 * Product parameters
1 * UL certificate
2 * waterproof wire terminals
