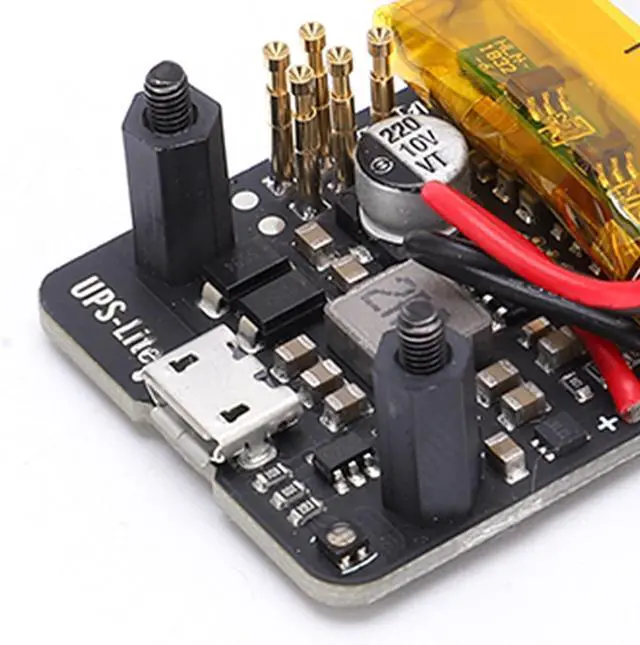

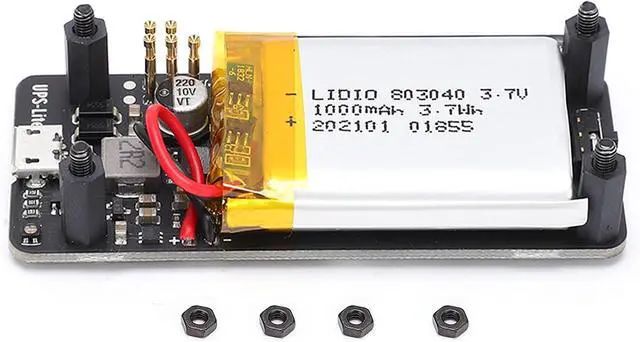

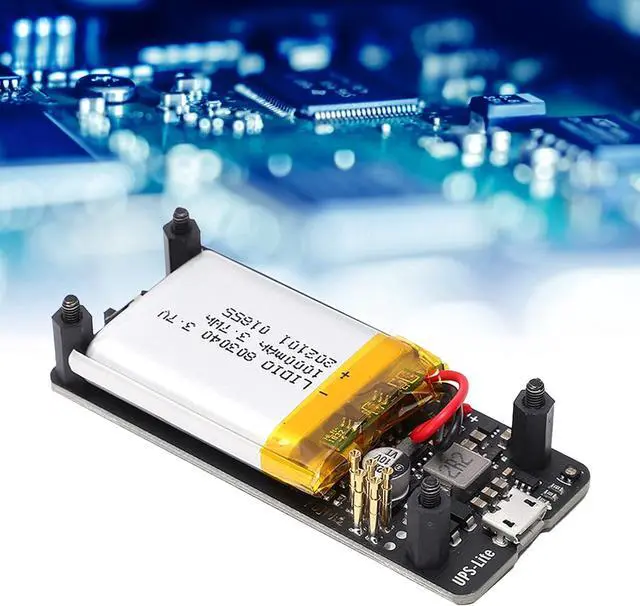

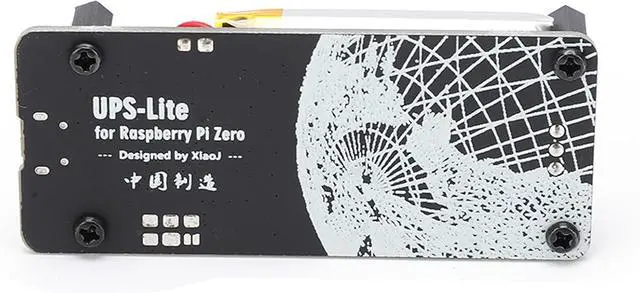

JUOPZKENN UPS Power Board, Printed Circuit Board Battery Pack Accessory UPS Power Board Lite Supply Battery Pack Charger Accessory for for Integrated Serial Port Charging
- EXCELLENT EFFECT:UPS Lite removes the rarely used serial port function, optimizes the battery power supply circuit, and uses ultra low on resistance MOS tube for power supply control, which improves the battery life.
- UNIQUE DESIGN:A UPS power supply specially designed, which integrates a fuel gauge chip (MAX17040G) and a 1000mAh lithium battery.
- EASY TO USE:Theconvenient installation will save both your tiem and effoprt, and the standby time in actual test is up to 6 hours.
- WIDE APPLICATION: Supports external power plug detection, also supports charging and discharging, has dual color charging status indicator.
- HIGH QUALITY MATERIAL: Made of premium Printed Circuit Board, the UPS power board is not easy to damage, and very durable for long term use.
+
+
Overview
Specs
Reviews
How to Use:
Align the four fixing holes of the for Raspberry Pi with the four screws of the UPS, and then lock the matching nuts. Note that the for Raspberry Pi needs to be soldered to use the UPS Lite. Because the connection between the Raspberry Pi and the UPS Lite is achieved by contact with the pin header.
Specification:
Item Type: UPS Power Board
Material: Printed Circuit Board
Function: UPS power supply specially designed for .
Charging Current: 400mA
Output Voltage: 5.1V ±0.1V
Output Current: 1.3A at 5V (no external adapter is plugged in, only battery power is used), 2A at 5V (when the external adapter is inserted).
Power Measurement Accuracy: Error ±2%
Battery Specification: 1 x 3.7V 1000mAh Lithium Battery(built in battery)
Package List:
1 x UPS Power Board
4 x Nut
Note:
It is recommended to use a power adapter with a power of 5V2A and above to charge the UPS Lite. Because when the lithium battery is low, the external power adapter not only needs to supply power to for , but also needs to provide part of the current to charge the lithium battery.
Align the four fixing holes of the for Raspberry Pi with the four screws of the UPS, and then lock the matching nuts. Note that the for Raspberry Pi needs to be soldered to use the UPS Lite. Because the connection between the Raspberry Pi and the UPS Lite is achieved by contact with the pin header.
Specification:
Item Type: UPS Power Board
Material: Printed Circuit Board
Function: UPS power supply specially designed for .
Charging Current: 400mA
Output Voltage: 5.1V ±0.1V
Output Current: 1.3A at 5V (no external adapter is plugged in, only battery power is used), 2A at 5V (when the external adapter is inserted).
Power Measurement Accuracy: Error ±2%
Battery Specification: 1 x 3.7V 1000mAh Lithium Battery(built in battery)
Package List:
1 x UPS Power Board
4 x Nut
Note:
It is recommended to use a power adapter with a power of 5V2A and above to charge the UPS Lite. Because when the lithium battery is low, the external power adapter not only needs to supply power to for , but also needs to provide part of the current to charge the lithium battery.
