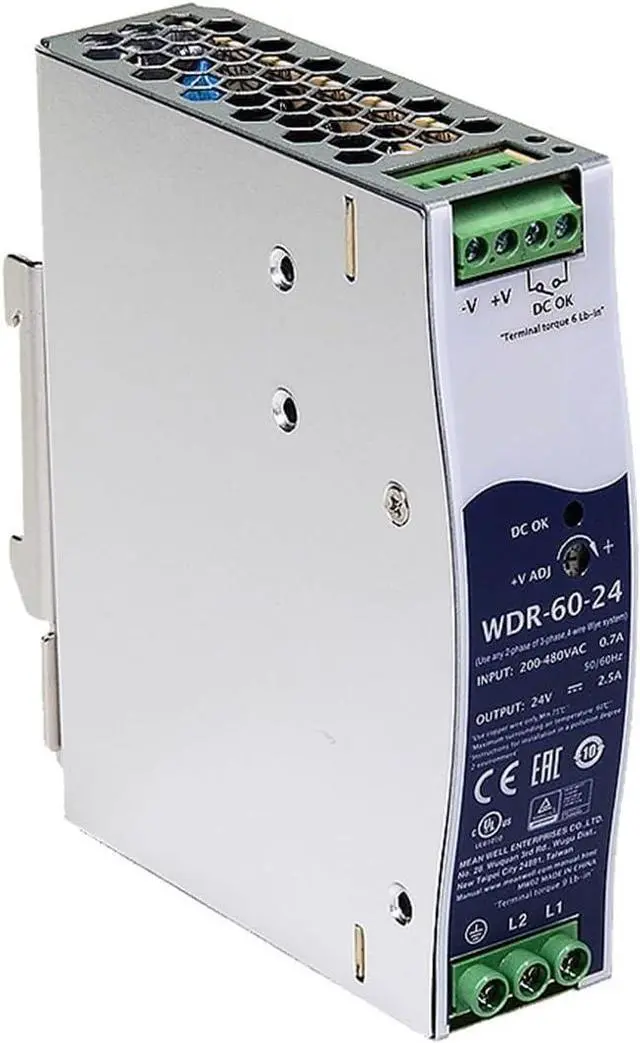

WDR-60-24 180-550Vac Input Voltage DC 24V 2.5A 60W Ultra Wide Input Industrial DIN Rail Power Supply
- DC output voltage adjustable
- Protections: Short circuit / Overload / Over voltage
- Built-in constant current limiting circuit
- Cooling by free air convection (working temperature:-30-+70°C)
- LED indicator for power on
+
+
Overview
Specs
Reviews
Model : WDR-60-24
Current Range : 0-2.5A
DC Voltage : 24V
Rated Power : 60W
Input Voltage : 180-550Vac
Features:
180-550Vac ultra wide input for 1-phase or 2-phase
32mm slim width
4.7KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection

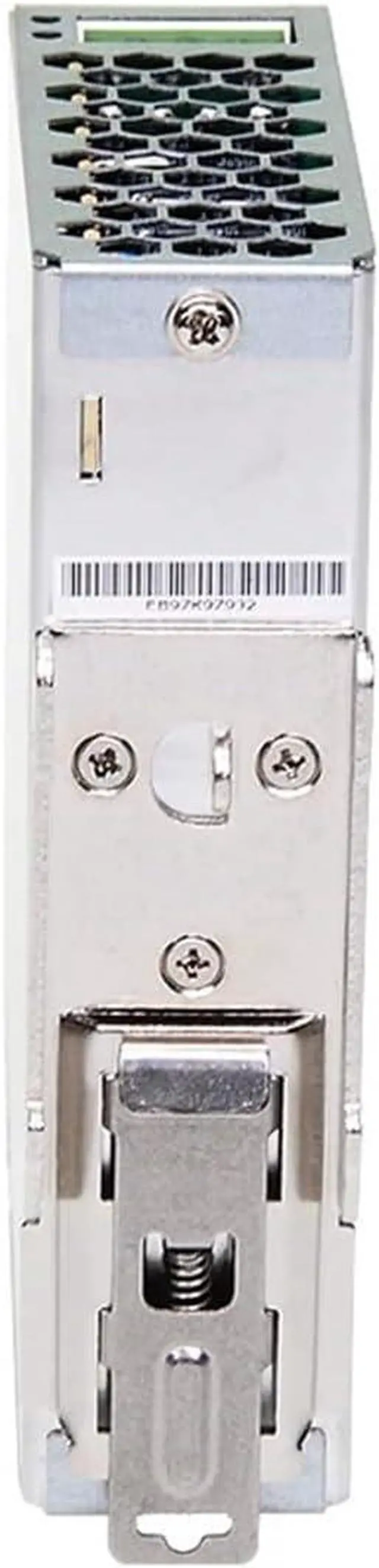

Can be installed on DIN rail TS-35/7.5 or 15
-30 -+85 ultra-wide operating temperature(>+60 derating)
Over voltage category III
DC OK relay contact
DC output voltage adjustable(+20%)
WDR-60-24 180-550Vac Input Voltage DC 24V 2.5A 60W Ultra Wide Input Industrial DIN Rail Power Supply
