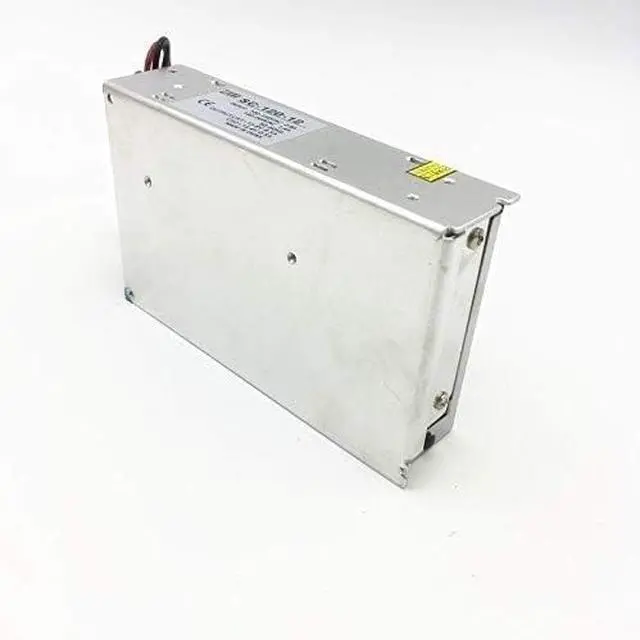

UPS Switching Power Supply 120w 12V 24V, with UPS/Charging Function AC 110/220V to DC 12V 24VDC Battery Charger SC-120W-12V 24V (Size : SC-120W-12V)
- Protection: Short circuit/overload/overvoltage protection
- Cooled by natural air convection
- 100% full load burn-in test, low cost, high reliability
- There is no requirement for the type of battery, lead, lithium and other batteries can be!
+
+
Overview
Specs
Reviews
UPS Switching power supply 120w 12V 24V, with UPS/ charging function AC 110/220V to DC 12V 24VDC battery charger SC-120W-12V 24V
UPS functions:
Long-term online floating charge of the battery, high charging efficiency, battery saturation can reach more than 90%, automatically stop charging when full, to prevent overcharging. Effectively extend battery life, AC/battery automatic switching, no switching time, no manual guard, cold start, no AC input, you can use the battery to start UPS,
Meet users' emergency needs
Specification: Model
SC-120-12
SC-120-24
exportation
Dc voltage
CH1:
13.8V CH1:13.4V CH1:27.6V CH2:26.5V
Voltage tolerance
Plus or minus 1%
-----
Plus or minus 1%
-----
Rated current
8A 0.5A 4A 0.3A Current range
0~8A-----0~4A
----- rated power
117.1W 118.4W
Ripple & Noise 120mvpp-----180mvp-p-----
Dc voltage adjustable range
CH1:11.3 to 14.9V CH1:21.3 to 29.8V
input
Voltage range
90~264VAC, 127~370VDC frequency
47~63HZ
Ac current 2.8A/115VAC, 1.4A/230VA
efficiency
81% 83%
Surge current Cold start current
30A/115VAC, 50A/230VAC
Leakage current
<;; 1mA/240VAC
Protection
Over duty
Rated output power 110% to 150% Start Overload protection Protection mode: AC charging mode: The fault is rectified
After automatic recovery belch mode battery protection low voltage
Time 9.5 to 11V 20 to 22V
Protection
Mode: Cut-off output
UPS Function Description
The battery can be online floating charge for a long time, high charging efficiency, battery saturation can reach more than 90%, and automatically stop charging when full to prevent overcharging. Effectively extend battery life, AC/battery automatic switching, no switching time, no manual guard, cold start, no AC input, you can use the battery to start UPS,
Meet users' emergency needs
UPS Switching Power Supply 120w 12V 24V, with UPS/Charging Function AC 110/220V to DC 12V 24VDC Battery Charger SC-120W-12V 24V (Size : SC-120W-12V)
