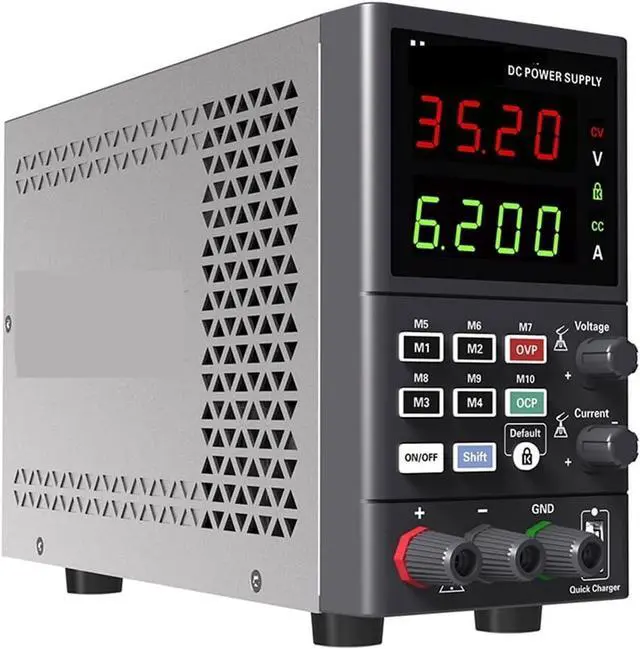

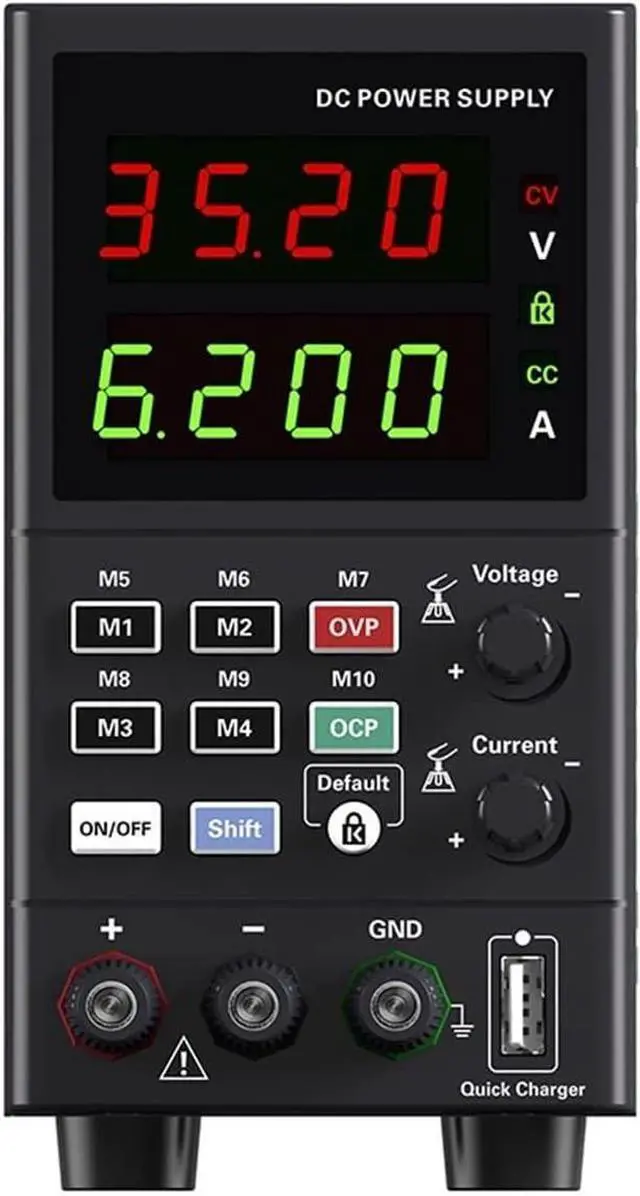

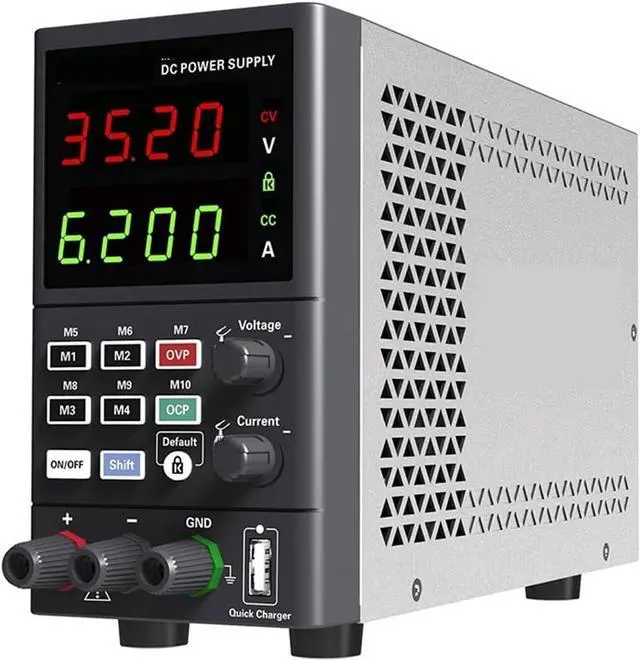

Regulated Power Supply, 35V 6A Adjustable DC Power Supply Digital LED Lab Bench Voltage Regulator Stabilizer Switching Power Supply Reliability and Safety

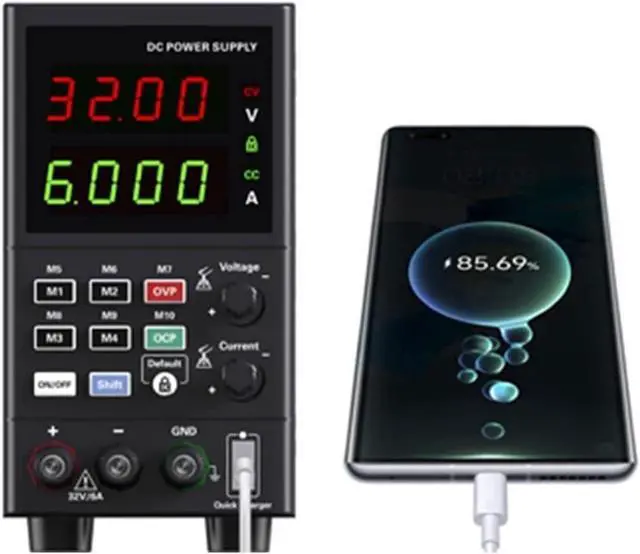

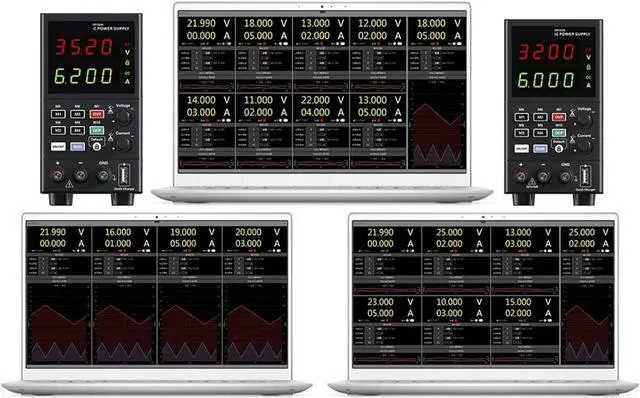

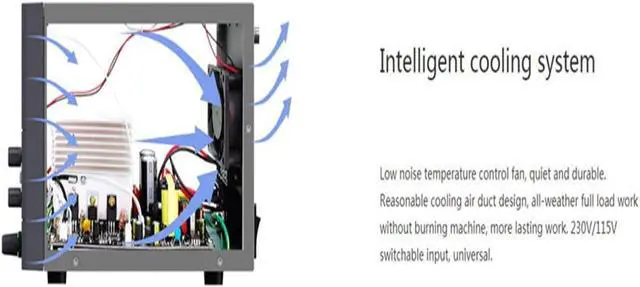

Four-digit display voltage and current, resolution up to 10mV/1mA; Standard USB quick charge function, support a variety of quick charge protocols; Storage functions up to 10 groups; AC input voltage 230/115V switch, universal; Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system; Over voltage, over current, overload, overheating, short circuit protection functions; Low noise temperature control fan, quiet and durable; 35V/6A output is stable and pure; On/Off output control, one-button panel lock function to prevent misoperation. It is an ideal power supply for laboratory, production line and home appliance maintenance.
Specifications:
Model
HDP135V6
HDP135V6S
HDP135V6A
HDP135V6B
Channel
1CH
Storage
10 Groups of data
Output voltage/current
35V/6A
Maximum output power
210W
Communication interface
None
Voltage
Load regulation
0.1% + 5 mv
Linear regulation
0.01% + 5 mv
Set resolution
10mV
Set precision
0.1% + 1 digits
Read back resolution
10mV
Read back accuracy
0.1% + 1 digits
Ripple
10mVrms
Current
Load regulation
0.2% + 3mA
Linear regulation
0.2% + 3mA
Set resolution
1mA
Set precision
0.2% + 3mA
Read back resolution
1mA
Read back accuracy
0.2% + 3 digits
Ripple
5mArms
Overvoltage protection (OVP)
0 ~ 35V ± 0.2%FS
Maximum voltage
35V ± 0.2%
Overcurrent protection (OCP)
0 ~ 6A ± 0.2%FS
Maximum current
6A ± 0.2%
Quick charge
Output voltage range
5V~12V
Output power
Maximum: 18 w
General features
Working conditions
Temperature -10 ° C to 40 ° C, relative humidity 80%
Storage conditions
Temperature -20 ° C to 60 ° C, relative humidity 80%
Cooling
Air cooling
Weight
2.2 Kg
Size
85 * 150 * 230 (mm)
