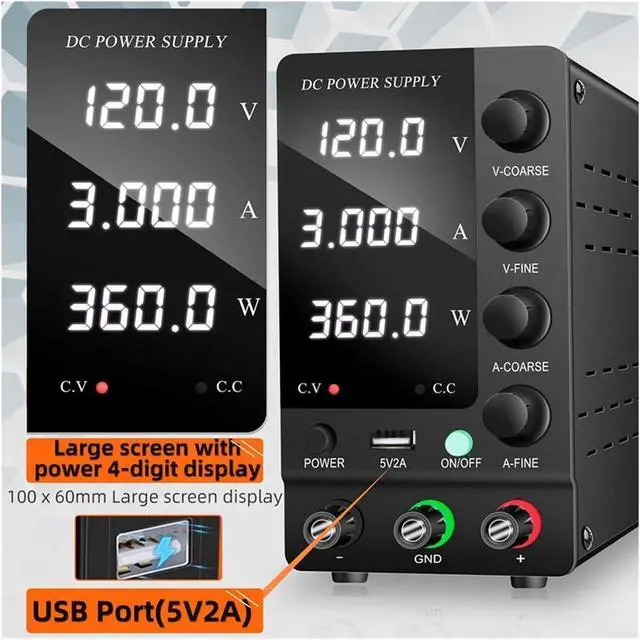

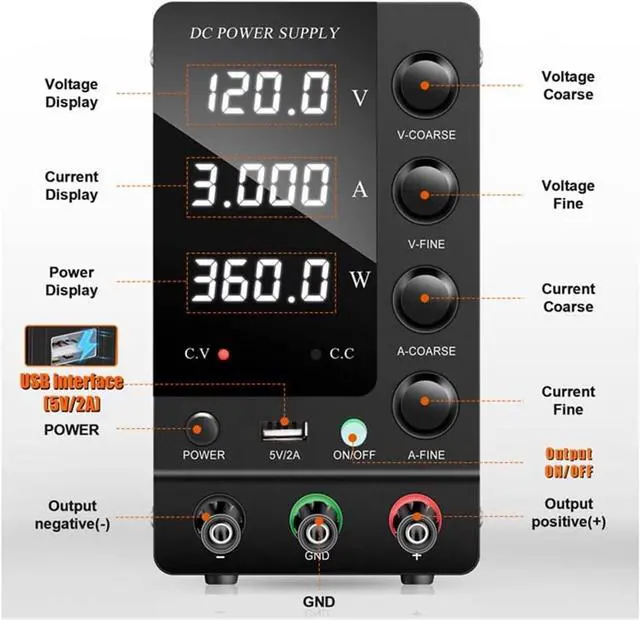

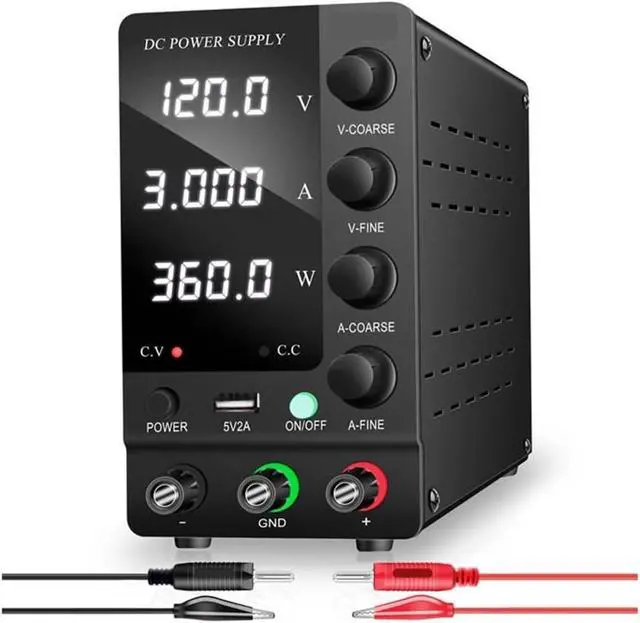

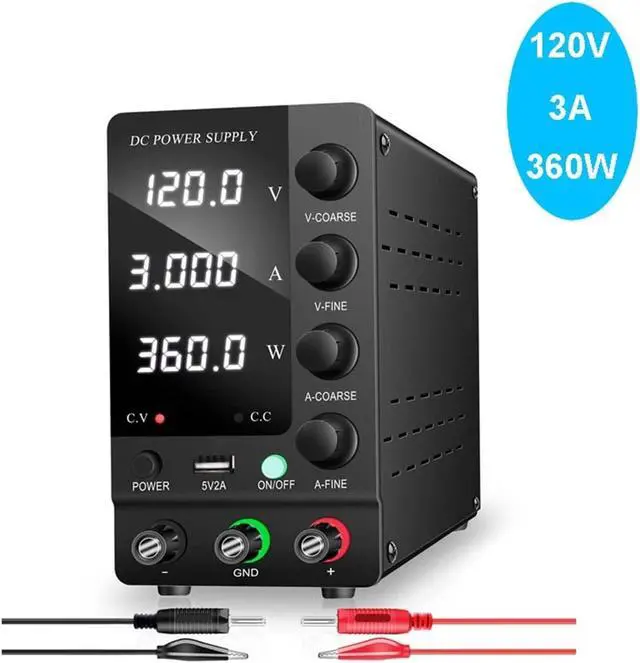

120V 3A Variable Switching DC Laboratory Power Supply Adjustable Lab Bench Power Source for Electroplate Repair Phone(120V 3A 360W White)
- <80%RH
- <70%RH
- Small size, light weight and high power density.
- Constant voltage, constant current automatic switching. Voltage, current, power.

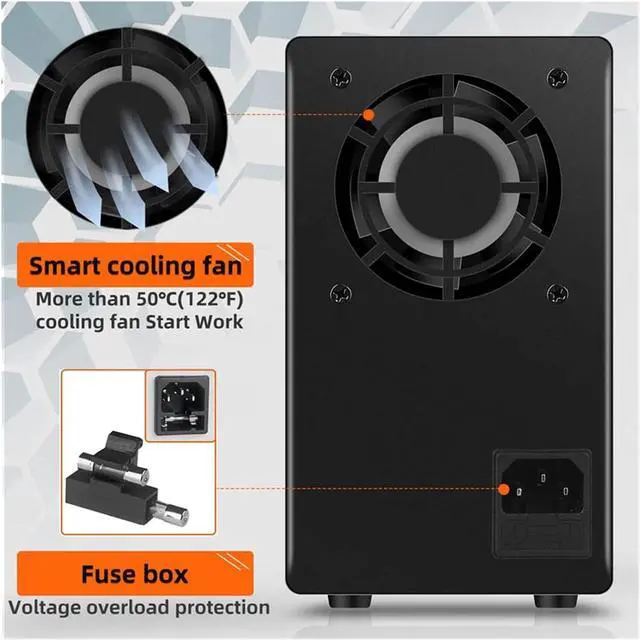

- Temperature controlled fan heat dissipation, low noise and long life.
+
+
Overview
Specs
Reviews
Output Voltage0~120VDC
Output Current0~3A
Fuse Standard3A
Voltage Resolution0.1V
Current Resolution0.01A
Ripple VoltageVpp1%
Power EffectCV1%+10mV
Effect of LoadCV1%+10mV
Digital Display4 Digits LED Display
Ripple Noise1 MV
Voltage Display Precision±1% + 1 digits
Current Display Precision±1% + 2 digits
Operating Environment-10~45 /14~113 Rh90%
Storage Environment-20~60 /4~140 Rh80%
Net Weight2.0KG
Machine sizeL215*W139*H85(MM)
Package sizeL330*W220*H130(MM)
USB Output:Fixed on 5V-2A output
<;80%RH
<;70%RH
Constant Voltage State:Voltage stability 0.1%+3mV
Load stability0.1%+3mV
Ripple noise20mVrms
Constant Current State
Current stability0.2%+3mA
Load stability0.01%+3mA
Ripple noise20mArms (valid value)
Display Accuracy
0.5%+2digits
Display Resolution
Voltage:0.1V Currenrt: 0.001A
Output Current0~3A
Fuse Standard3A
Voltage Resolution0.1V
Current Resolution0.01A
Ripple VoltageVpp1%
Power EffectCV1%+10mV
Effect of LoadCV1%+10mV
Digital Display4 Digits LED Display
Ripple Noise1 MV
Voltage Display Precision±1% + 1 digits
Current Display Precision±1% + 2 digits
Operating Environment-10~45 /14~113 Rh90%
Storage Environment-20~60 /4~140 Rh80%
Net Weight2.0KG
Machine sizeL215*W139*H85(MM)
Package sizeL330*W220*H130(MM)
USB Output:Fixed on 5V-2A output
<;80%RH
<;70%RH
Constant Voltage State:Voltage stability 0.1%+3mV
Load stability0.1%+3mV
Ripple noise20mVrms
Constant Current State
Current stability0.2%+3mA
Load stability0.01%+3mA
Ripple noise20mArms (valid value)
Display Accuracy
0.5%+2digits
Display Resolution
Voltage:0.1V Currenrt: 0.001A
