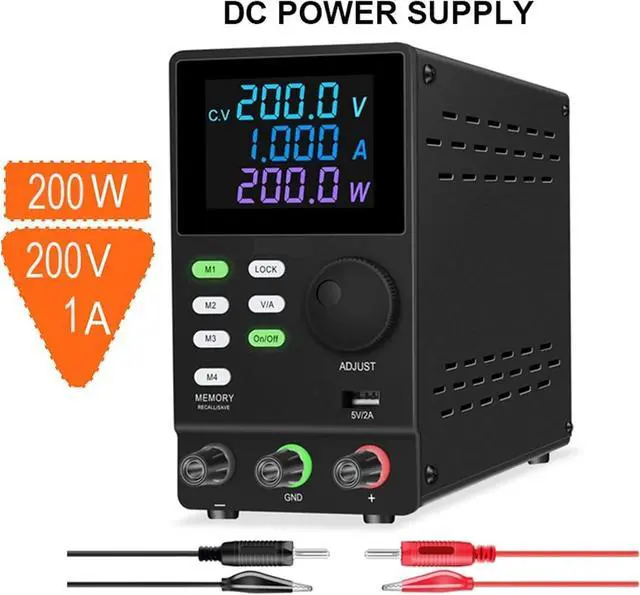

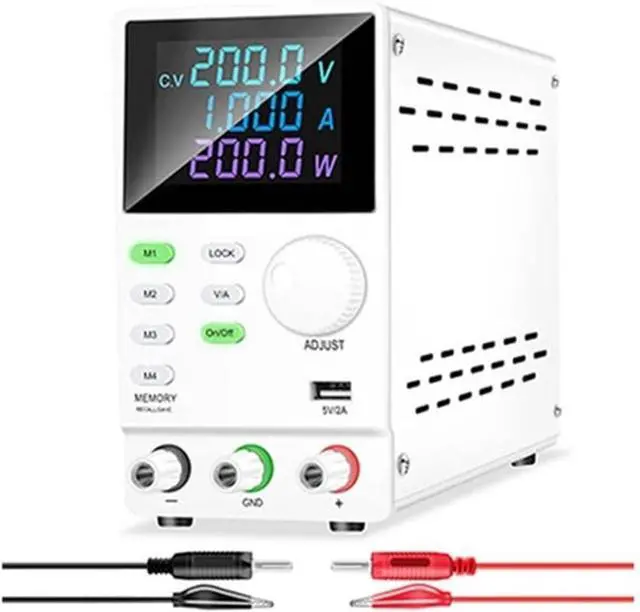

Regulated Power Supply, 200V 1A DC Bench Power Supply Voltage Regulator Adjustable Stabilized Variable LED Display Regulator Switch Reliability and Safety (Color : SPPS2001D -White, Size : Type)

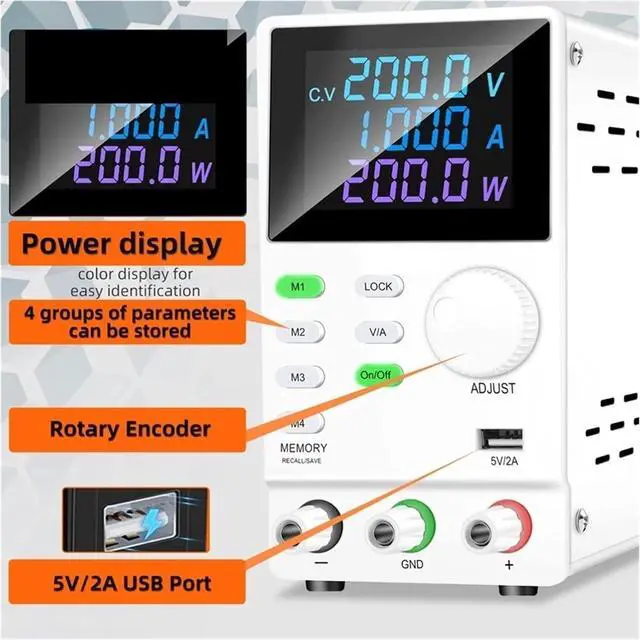

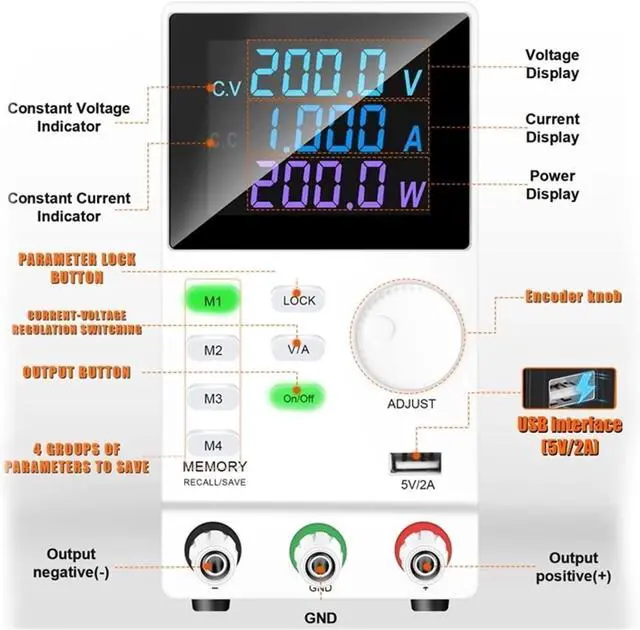

- HIGH ACCURACY WITH EASY CONTROL INTERFACEMPU micro-system, encoded-controlled fine & coarse adjustment knob assures not only high precision but also high trueness
- STORAGE AND RECALL MEMORY FUNCTIONFeatures 4 buttons with Storage and recall memory function. Easily storage or recall the commonly used current/voltage only by pressing the button. Support Constant Current (C.C.) and Constant Voltage (C.V.) modes.
- EXTRA COMPACT & PORTABLEWith power switch function and current output button, bench power supply is well suited for laboratories, schools, electrical maintenance, diy electronics, amateur, suitable for lab & industrial use
- BUILD TO LASTBuilt-in OCP (Over Current Protection), OVP (Over Voltage Protection), and short circuit protection. Special left & right vents and internal cooling fan to prevent overheating
- Encoder knob for fine adjustment of each digit and digit.This is a Digital display mini DC power supply that simultaneously displays voltage, current.
+
+
Overview
Specs
Reviews
Product Features:
Small size, light weight and high power density.
Constant voltage, constant current automatic switching.
Voltage, current, power
Temperature controlled fan heat dissipation, low noise and long life

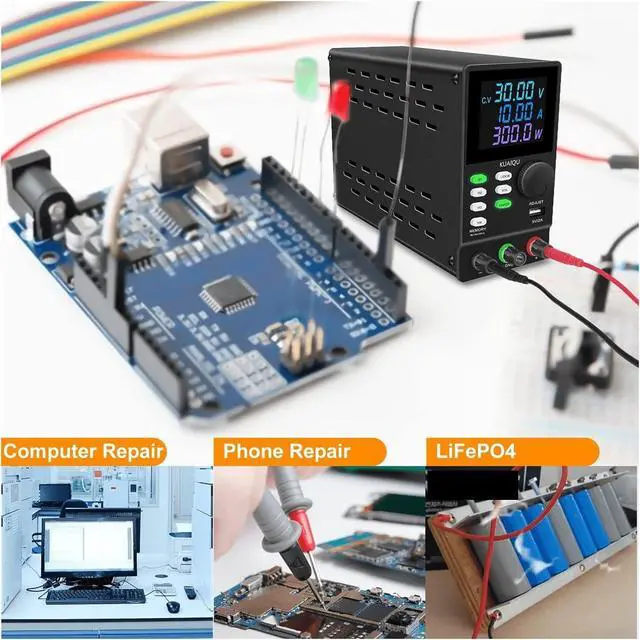

Application Field:
1. Production line testing.
2. Mobile phone, computer, electrical maintenance.
3. Product aging, plating.
4. Charge the battery.
5. Laboratory, research and teaching.
6. Everything else needs a DC regulated power supply.
Specification:
Condition: 100% Brand New
Model:SPPS-series
Output Voltage: 0 ~30V/60V/120V/200V/300V
Output Current: 0 ~ 1A/5A/10A
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Ripple Voltage: Vpp1%
Power Effect: CV1%+10mV
Effect of Load: CV1%+10mV
Ripple Noise: 1 MV
Voltage Display Precision: ±1% + 1 digits
Current Display Precision: ±1% + 2 digits
Operating Environment: -10~45 /14~113 Rh90%
Storage Environment: -20~60 /4~140 Rh80%
Weight:2Kg
Size:252*170*84mm
Packing List:
1*DC Power Supply
1* Power Cord
1* Output Line
1*English Instruction manual
Small size, light weight and high power density.
Constant voltage, constant current automatic switching.
Voltage, current, power
Temperature controlled fan heat dissipation, low noise and long life
Application Field:
1. Production line testing.
2. Mobile phone, computer, electrical maintenance.
3. Product aging, plating.
4. Charge the battery.
5. Laboratory, research and teaching.
6. Everything else needs a DC regulated power supply.
Specification:
Condition: 100% Brand New
Model:SPPS-series
Output Voltage: 0 ~30V/60V/120V/200V/300V
Output Current: 0 ~ 1A/5A/10A
Voltage Resolution: 0.01V
Current Resolution: 0.001A
Ripple Voltage: Vpp1%
Power Effect: CV1%+10mV
Effect of Load: CV1%+10mV
Ripple Noise: 1 MV
Voltage Display Precision: ±1% + 1 digits
Current Display Precision: ±1% + 2 digits
Operating Environment: -10~45 /14~113 Rh90%
Storage Environment: -20~60 /4~140 Rh80%
Weight:2Kg
Size:252*170*84mm
Packing List:
1*DC Power Supply
1* Power Cord
1* Output Line
1*English Instruction manual
