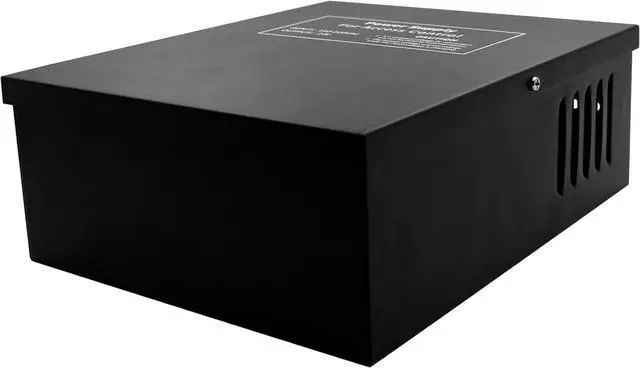

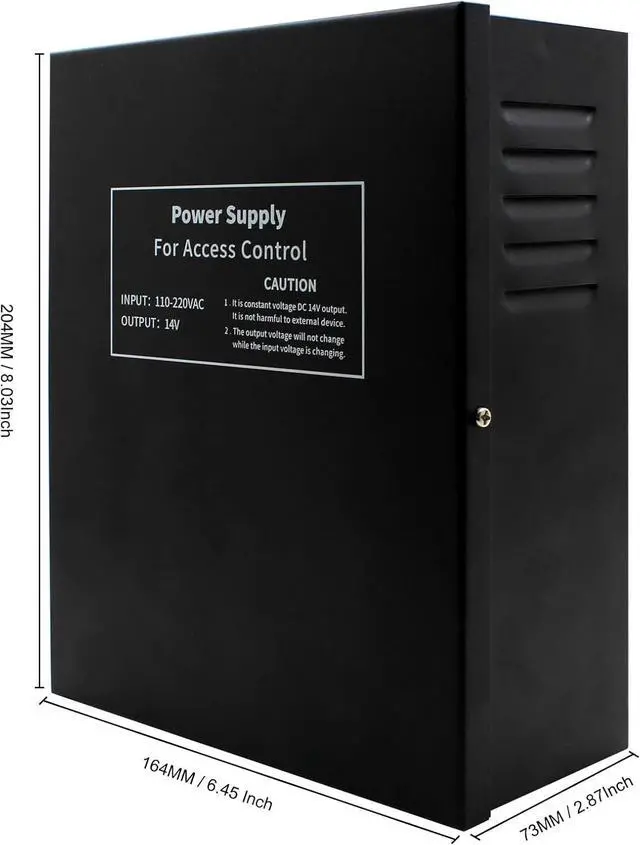

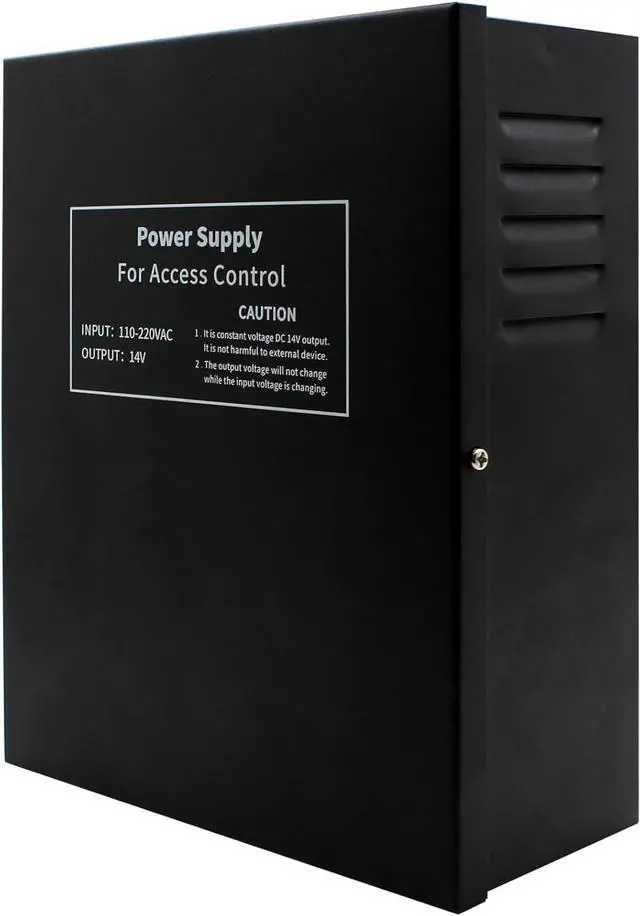

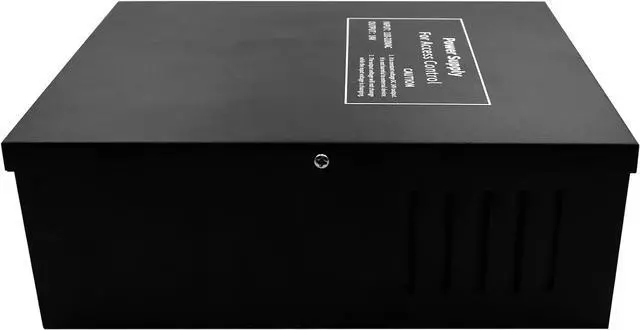

Power Supply Control AC 110-240V to DC 12V 5A Worldwide Voltage Metal Boxed Cabinet Regulated UPS Power Supply Unit with Backup Battery Link for Door Access Entry System (12V / 5A)
- Versatile Power Supply: Converts110 - 240VAC/50Hz input to a stable 12VDC output.
- Adjustable Delay: Allows customizable delay settings from 0 to 15 seconds, ensuring flexibility for various applications.
- Direct Lock Control: Capable of directly driving both NC and NO electric locks, reducing strain on access control systems.
- Lock Compatibility: Supports NC locks (unlocks when power is off) and NO locks (unlocks when power is on), accommodating different lock types.
- Safety Features: Includes automatic circuit protection against short circuits, ensuring reliable operation and safety.
+
+
Overview
Specs
Reviews
Features:
Input:110 - 240VAC/50Hz; Output: 12VDC;
Adjustable delay setting: 0-15 seconds, factory default is 0 seconds delay;
Can directly drive NC or NO electric locks, reducing load on access control host;
NC electric locks: unlocks when power is off (e.g., magnetic locks, electric plug locks);
NO electric locks: unlocks when power is on (e.g., electric control locks);
When connecting NO electric control locks, set delay to 0 seconds to prevent burning out the electric control lock coil;
Our products include automatic protection function; in case of a short circuit, the power will automatically cut off to protect the circuit;
Supports battery charging function (excluding lithium batteries).
