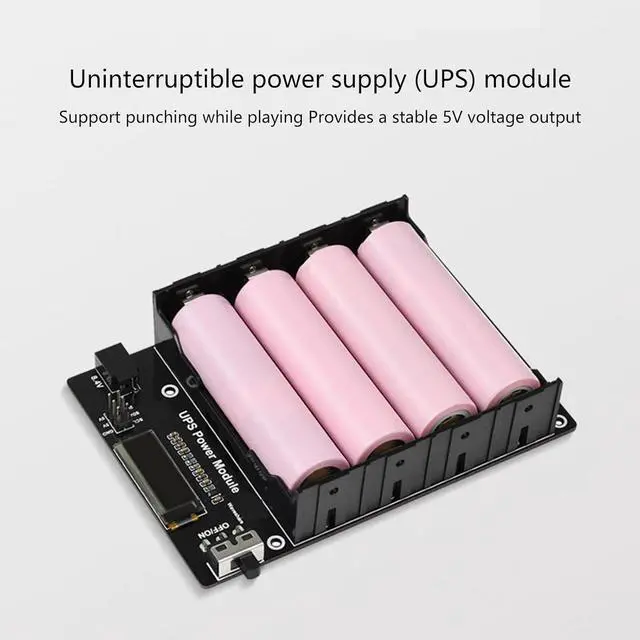

TINGUT Ups Module Compact UPS Power Modules Power Management Expansion Board for UPS Solution 4x18650 10400mAh

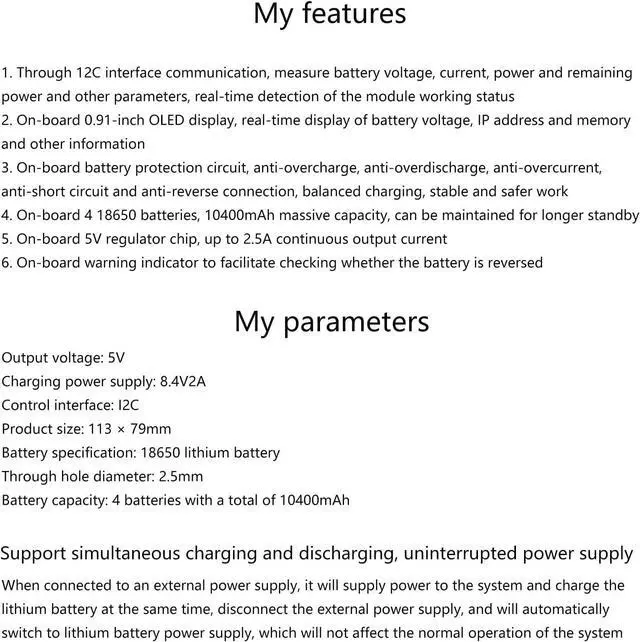

Features:
The Power Management Expansion Board is the UPS solution for Developer,providing uninterrupted power supply and safe power management.
With its compact and integrated battery holder,the Expansion Board offer a power backup for.
The Expansion Board ensures uninterrupted power supply,allowing you to focus on your creation without worrying about sudden power loss.
power management with the Expansion Board,featuring automatic powering off after safe shutdown and intelligent charging and discharging.
It can communicate through the I2c,measure parameters such as battery,current,power,and remaining power,and detect the working of the module in real-time;On board 0.91inch display screen,displaying real-time information such as battery,address,and memory;Onboard battery circuit,overcharging,overvoltage,overcurrent,short circuit.,balanced charging,stable and safe ;

Specifications:

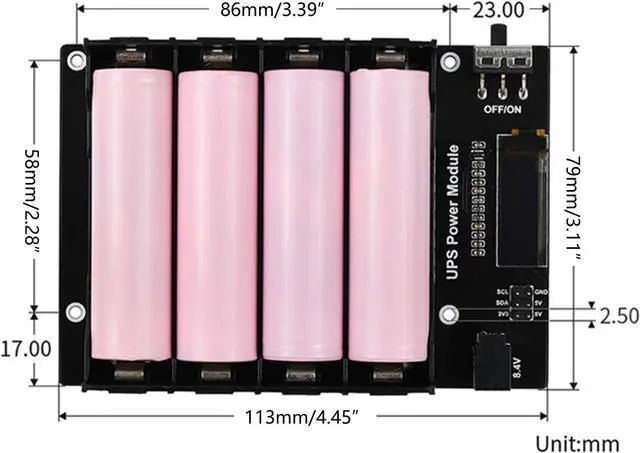

Size:Approx.11.3x7.9cm/4.45x3.11in
for ;
Output:5V
Charging Power:8.4V2A
Control Interfaces:I2C
Battery Capacity:4x18650 10400mAh

Note:
Please allow 1-2cm errors due to manual measurement,please make sure that you do not mind before you order.
Due to the difference between different monitors,the picture may not reflect the actual color of the item.

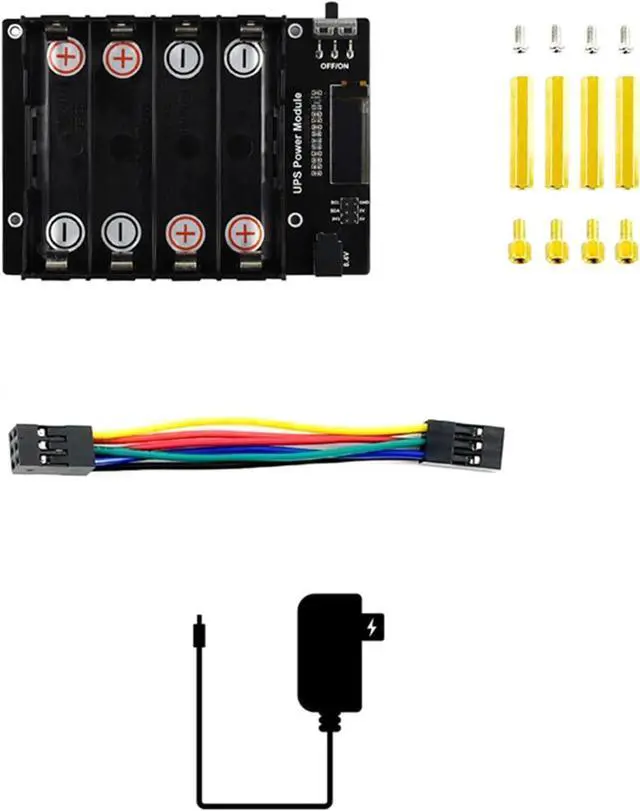

Package includes:
1xUPS Power Board
4xScrew
1x6Pin 9cm Cable
4x18650 Battery
1x
TINGUT Ups Module Compact UPS Power Modules Power Management Expansion Board for UPS Solution 4x18650 10400mAh
