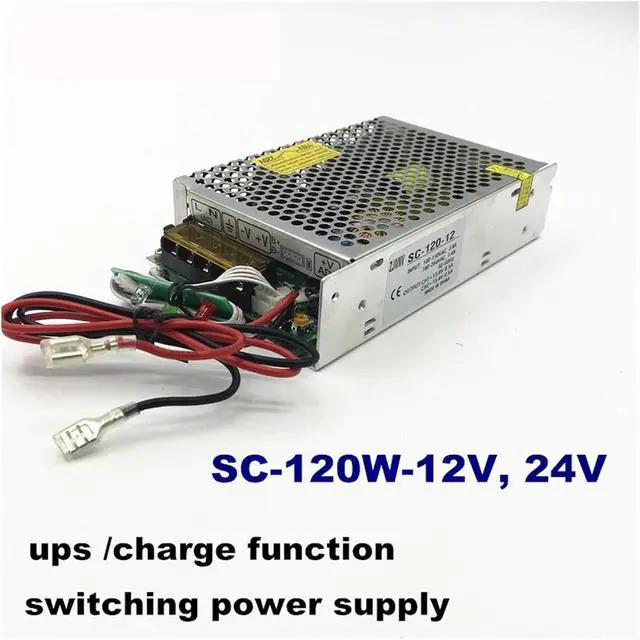

Switching Power Supply, Switching Power Supply 120w 12v 24V with UPS/Char Function Ac to Dc 12v 24VDC Battery Charr SC-120W-12V 24V(SC-120-24V)

Ups switching power supply 120w 12v 24V with UPS/ Char function ac to dc 12v 24VDC Battery Charr SC-120W-12V 24V
Feature&Advantas
no requirements for the type of battery, lead, lithium and other batteries are OK!
UPS FUNCTION:
long-term online floating char to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard,
cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emerncy needs.

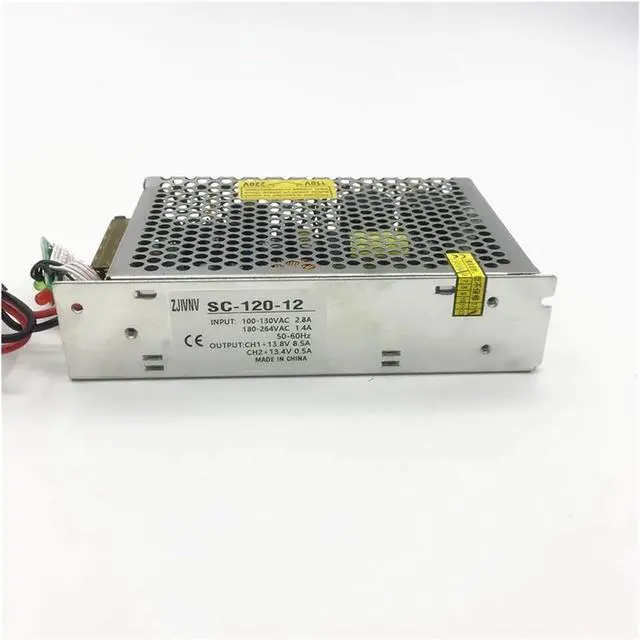

SC-120-12
CH1 :13.8VDC 8A for load
CH2 :13.4v 0.5A For battery char
SC-120-24
CH1 :27.6VDC 4A for load
CH2 :26.5VDC 0.3A For battery char
Specificate:
Model
SC-120-12
SC-120-24
output
DC
CH1:13.8V
CH1:13.4V
CH1:27.6V
CH2:26.5V
tolerance
±1%
-----
±1%
-----
Rated current
8A
0.5A
4A
0.3A
Current ran
0~8A
-----
0~4A
-----
Rated power
117.1W
118.4W
Ripple&noise
120mvpp
--
180mvp-p
-----
DC ADJ.ran
CH1:11.3~14.9V
CH1:21.3~29.8V
input
ran
90~264VAC,127~370VDC
frequency
47~63HZ
AC current
2.8A/115VAC,1.4A/230VAC
efficiency
81%
83%
Inrush current
Cold start current 30A/115VAC,50A/230VAC
Leaka current
<; 1mA/240VAC
protection
Over load
Rated output power110%~150% start over load protection
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
Batteryprotection
At low
9.5~11V
20~22V
protection mode:cutoff output
Function
UPS introduction
long-term online floating char to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time
