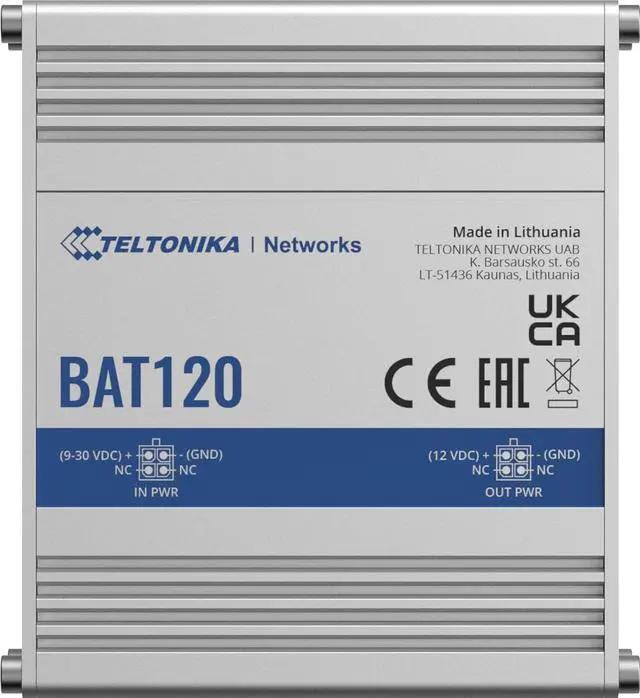

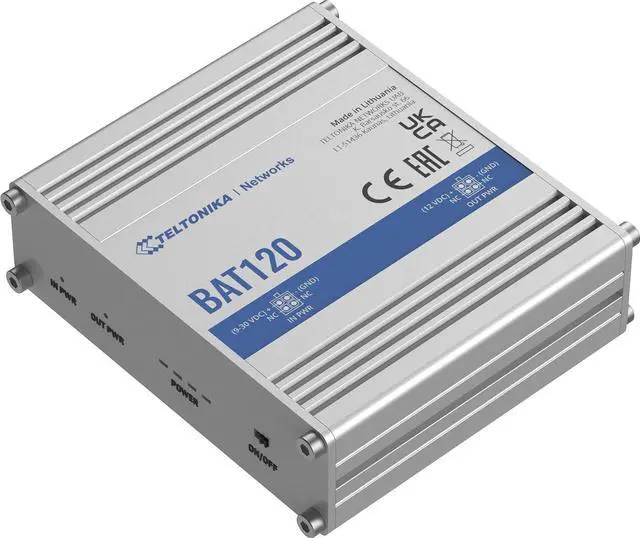

Teltonika BAT120000300 Model BAT120 Uninterrupted Power Supply, AU PSU; Not for use in USA; 4-pin DC Ports for Power Input and Output; Reverse Polarity and Overvoltage Protection; Lasts up to 6 Hours

Teltonika BAT120000300 Model BAT120 Uninterrupted Power Supply, AU PSU; Not for use in USA; 4-pin DC Ports for Power Input and Output; Reverse polarity and Overvoltage Protection; Lasts up to 6 hours
BAT120 is the rst uninterrupted power supply from Teltonika Networks. BAT120 is equipped with two 4-pin DC ports for power input and output. The input voltage ranges from 9V to 30V and output of 12VDC when operated from the battery
Key Features:
- AU PSU
- Not for use in USA
- Lasts up to 6 hours
- Compatible with Teltonika's RUT2XX, RUT95X, RUT360, RUT300, TCR100, RUTX, TRB14X, TRB2, and TSW110
- DIN rail and surface mounting options
- I/O Can be set up with a router for custom alerts
- Reverse polarity and Overvoltage protection
- Rugged aluminum housing
Specifications:
Power:
- Connector: 4-pin industrial DC power socket
- Input power/max charging current: Charger: max 4 W/300 mA (max battery charging current)
- Input protection: Reverse polarity protection, Overvoltage protection
- Output voltage in passthrough mode: 9 - 30 VDC
- Output voltage in battery mode: 12VDC
- Output protection: 3A overcurrent protection
- Max output power/current in battery mode: 22 W/1.8 A
- Battery capacity: 2300 mAh (17 Wh)
Physical Interfaces (Ports, LEDs, Buttons):

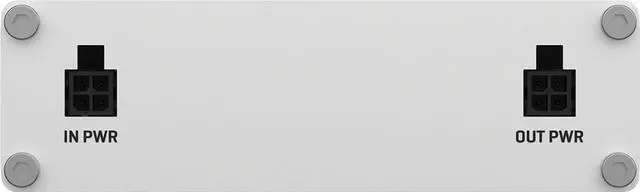

- Power IN: 1 x 4 pin DC connector
- Power OUT: 1 x 4 pin DC connector

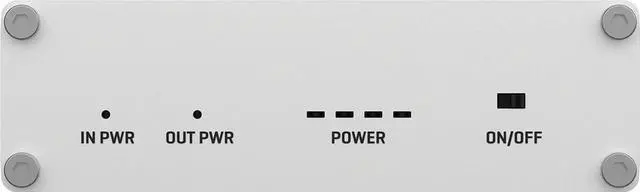

- Status LEDs: 1 x IN PWR LED, 1 x OUT PWR LED, 4 x Power status LEDs
- Switch: On/O slider switch
Alarm Output:
- Alarm Output: 1 x Active HIGH output, max output 12 V, 2.5 mA
General Specifications:
- Lithium cells: 2 x 18650 Li-Ion cells
- Casing material: Aluminum housing
- Overall Dimensions (WxHxD): 3.93 x 1.18 x 3.34 inches
- Weight: 0.69 pounds
