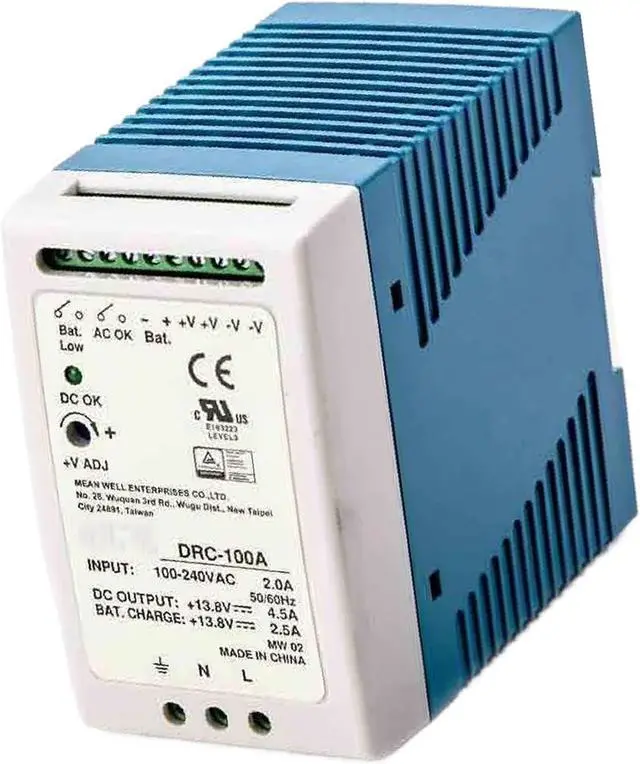

Main image of FerroFab DRC-100A 100W 13.8V 4.5A Single Output Enclosed AC-DC Power Supply with Battery Charger & UPS Function, for Security Systems, UL Certified

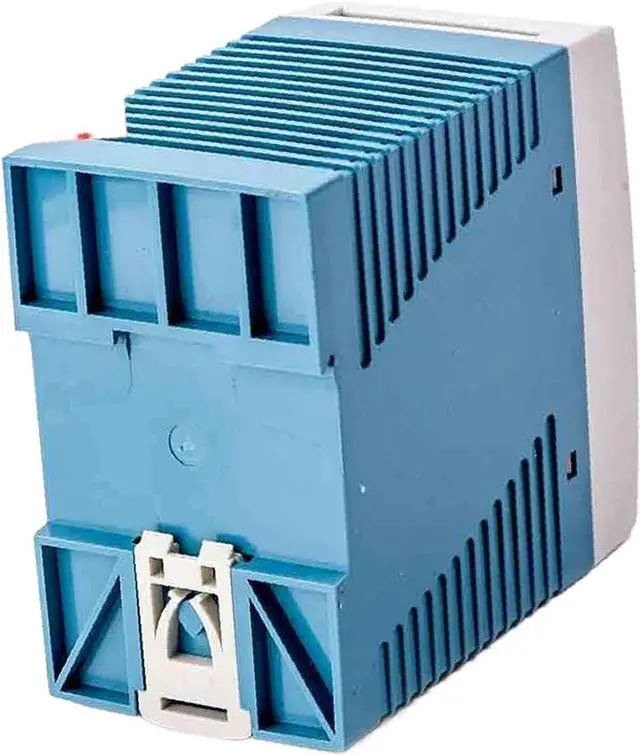

Alt view image 2 of 4 - FerroFab DRC-100A 100W 13.8V 4.5A Single Output Enclosed AC-DC Power Supply with Battery Charger & UPS Function, for Security Systems, UL Certified

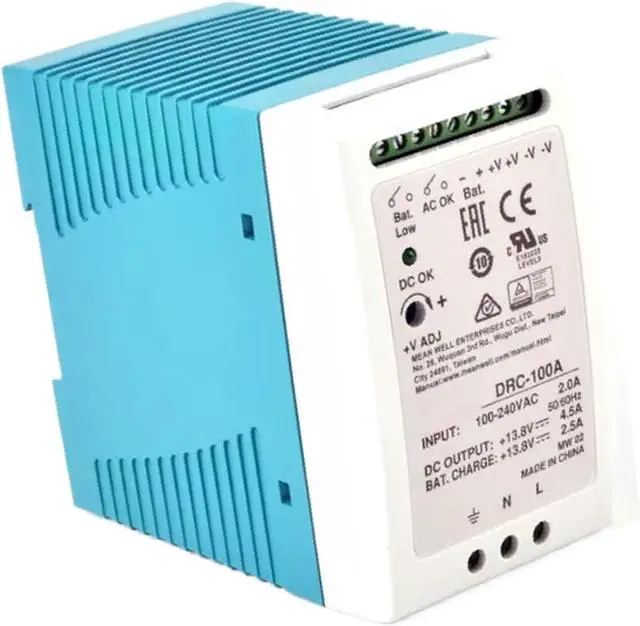

Alt view image 3 of 4 - FerroFab DRC-100A 100W 13.8V 4.5A Single Output Enclosed AC-DC Power Supply with Battery Charger & UPS Function, for Security Systems, UL Certified

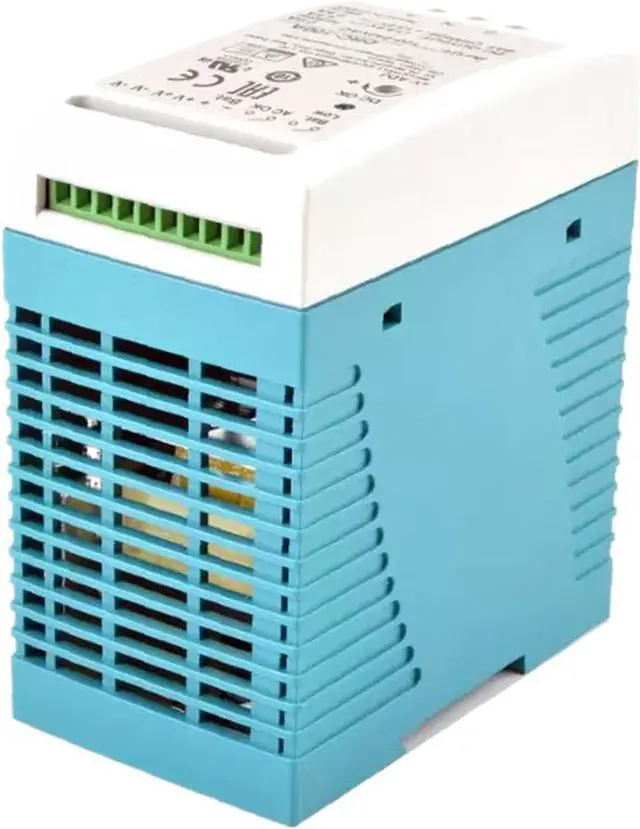

Alt view image 4 of 4 - FerroFab DRC-100A 100W 13.8V 4.5A Single Output Enclosed AC-DC Power Supply with Battery Charger & UPS Function, for Security Systems, UL Certified

Shop All NShi Products | Visit Changshacanboyidianzishangwu Store

FerroFab DRC-100A 100W 13.8V 4.5A Single Output Enclosed AC-DC Power Supply with Battery Charger & UPS Function, for Security Systems, UL Certified

Reliable Operation with UPS Function: This 13.8V power supply is certified to UL62368-1, EN62368-1, IEC62368-1 standards, ensuring reliable operation for critical applications. The built-in battery charger and UPS function provide backup power during AC outages, ensuring continuous operation of connected devices. The MTBF is 550K hours minimum, guaranteeing long-lasting performance.
DIN Rail Mountable and Compact Design: The DRC-100A features a DIN rail mountable design (TS-35/7.5 or 15) for easy and secure installation in standard control cabinets. Its compact size minimizes space requirements, making it ideal for space-constrained applications.
High Efficiency and Battery Management: Achieving an efficiency level of up to 87%, the DRC-100A minimizes energy loss and reduces overall power consumption. The integrated battery charger ensures optimal charging and maintenance of connected batteries, extending their lifespan.
Wide Input Voltage and Operating Temperature: The DRC-100A ac

Overview

Specs

Reviews

The DRC-100A is a 100W single-output AC-DC DIN rail power supply with integrated battery charger and UPS function, designed for critical applications like security systems, emergency lighting, and access control. This model delivers a constant voltage of 13.8V with a current rating of 4.5A. The DRC-100A features a universal AC input voltage range of 90-264VAC and operates at a frequency range of 47-63Hz. With an efficiency rating of up to 87%, this power supply minimizes energy waste. The DRC-100A is cooled by free air convection and offers comprehensive protection features, including short circuit, overload, overvoltage, and reverse polarity protection.
