$157.99
Ships from China.
Sold by changshacanboyidianzishangwu
Shipped by changshacanboyidianzishangwu
Meet Your Seller
Uninterruptible Power Supply with 3 Onboard Batteries, UPS Module Fit for Orin Series Motherboards, Supports Charging and Power Output at The Same Time

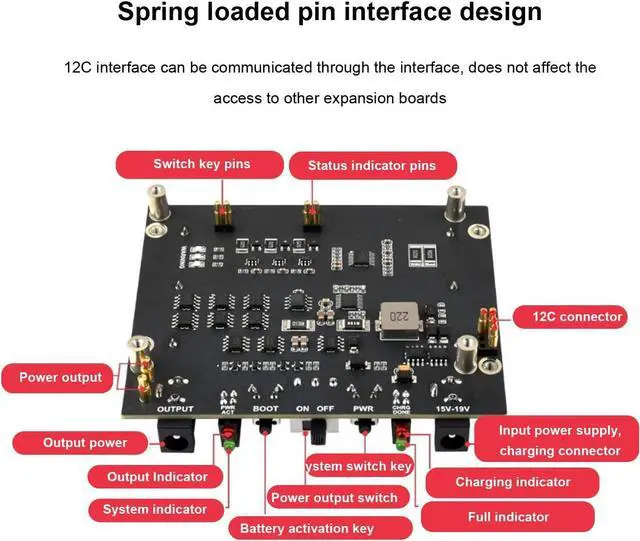

- HIGH COMPATIBILITY: Supports simultaneous charging and discharging. Utilizes a spring loaded pin interface, ensuring compatibility with fit for Orin series motherboards for a seamless connection.

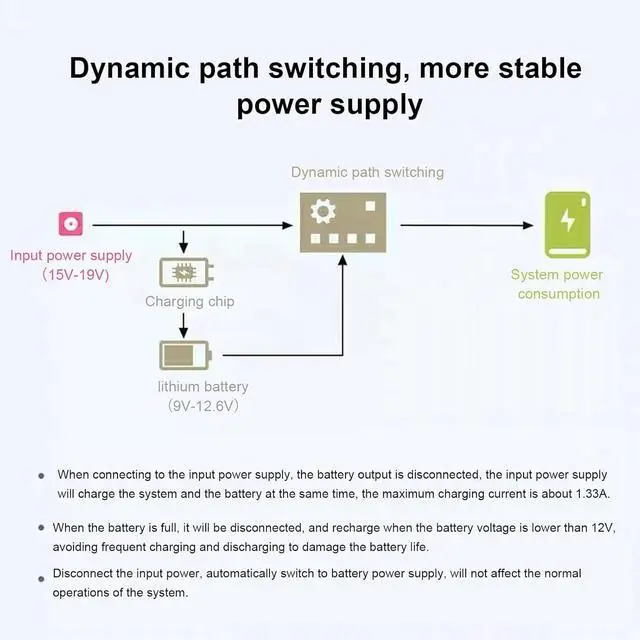

- ENHANCED PERFORMANCE: Features an onboard battery charging chip that supports dynamic switching, providing a more stable power supply for uninterrupted performance.
- PRECISE MONITORING: I2C interface for real time monitoring of battery voltage, current, power, and remaining capacity, ensuring module status is always monitored.

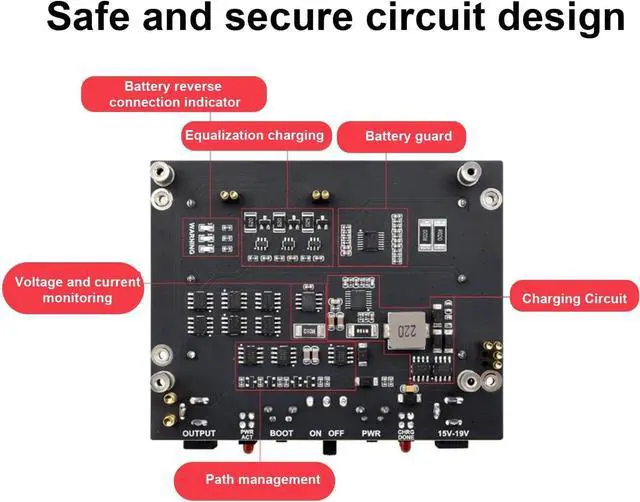

- ENHANCED SAFETY: Built in battery guard circuit for overcharge, overdischarge, overcurrent, short circuit, and reverse connection guard, with balanced charging for added safety.

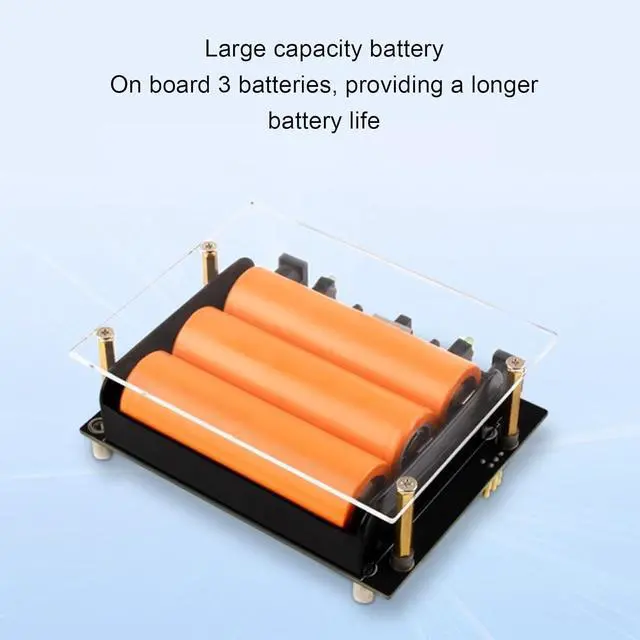

- MULTI FUNCTIONAL: Houses 3 onboard batteries, enabling extended standby time. There is also a warning indicator to check whether the battery is connected to the opposite side.
+
+
Overview
Specs
Reviews
Uninterruptible Power Supply with 3 Onboard Batteries, UPS Module Fit for Orin Series Motherboards, Supports Charging and Power Output at The Same Time
Specification:
Item Type: UPS Module
Material: PCB
Output Voltage: When there is input, it is input voltage, when there is no input, it is battery voltage (9V-12.6V)
Input Voltage: 15V-19V
Control Interface: I2C
Battery: 5000mAh Battery x 3 (in series) (with matched battery included)
Product Size: Approx. 100mm x 79mm / 3.94in x 3.11in
Hole Diameter: 2.5mm
Package List:
1 x UPS Expansion Board Module
1 x Acrylic Board
1 x Screw Pack
1 x Cord
3 x Batteries
Specification:
Item Type: UPS Module
Material: PCB
Output Voltage: When there is input, it is input voltage, when there is no input, it is battery voltage (9V-12.6V)
Input Voltage: 15V-19V
Control Interface: I2C
Battery: 5000mAh Battery x 3 (in series) (with matched battery included)
Product Size: Approx. 100mm x 79mm / 3.94in x 3.11in
Hole Diameter: 2.5mm
Package List:
1 x UPS Expansion Board Module
1 x Acrylic Board
1 x Screw Pack
1 x Cord
3 x Batteries
