Aramox DPS3005 Step Down Module Power Supply Regulator, Programmable 0-32.00V 0-5.000A, LCD Display, Small Size, High for Electronics (DPS3005-USB-BT)

1. The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one.
2. This module has power-down stored function and can store 10 groups preset value.
3. Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required.
4. LCD display on the module has the function digital voltmeter and ammeter.
5. On the setting data interface, you can adjust over-voltage value, over-current value, over-power value, data set and LCD brightness

Spec:
Note:
1.This is DPS3005 /DPS5005 communication version, there is a communication interface on the back.

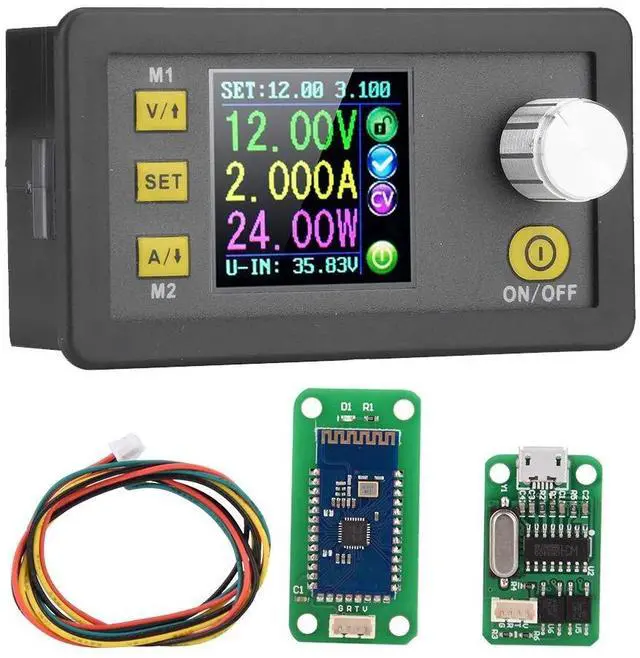

2.USB + means: DPS3005/DPS5005+ USB communication board+ communication Board
A: We have the file for upper computer installation and software, you can us.
B: Upper computer installation, connection by USB and video: you can go to RD tech channel to check
3.DPS3005 /DPS5005 have same functions, only the technical parameters are different,for example, voltage, current ,etc.
Very important:
1.Before buying this product, please download the upper computer software and test, if it fits your computer , you can buy
2. the upper computer only support For Win7 and above

Features:
The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one.
This module has power-down stored function and can store 10 groups preset value.
And it also has the function of extracting quickly two groups stored value.
Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required.

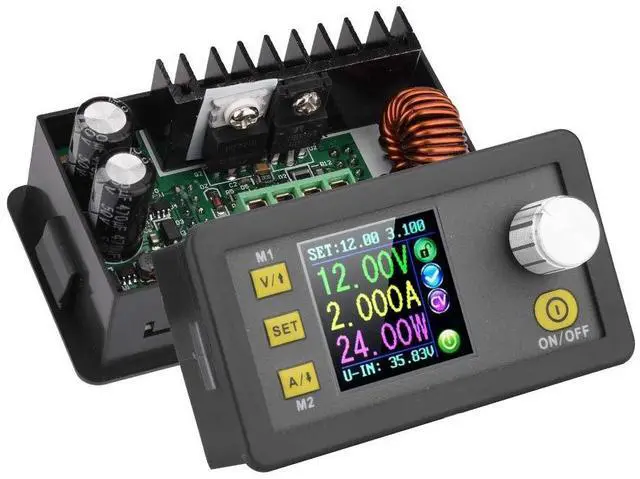

LCD display on the module has the function digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc.
On the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used.
On the setting data interface, you can adjust over-voltage value, over-current value, over-power value, data set and LCD brightness.
This module has many advantages, small size, advanced function, good visual effect, high operability, high-, being used independently, being inset into the device and been widely applied.
Specification:
Model(Optional) DPS3005 DPS5005
Input voltage 6.00-40.00V 6.00-55.00V
Output voltage 0V-32.00V 0V-50.00V
Output current 0-5.000A 0-5.000A
Output power 0-160.0W 0-250.0W
Voltage resolution 0.01V 0.01V
Current resolution 0.001A 0.001A
Size 80*44*45mm/3.1*1.7*1.8in
Weight Approx.138g/4.9oz

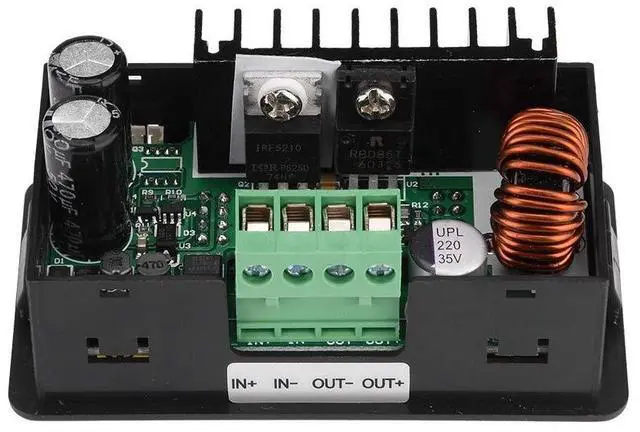

Connection description
IN+: Input positive, IN-: Input negative:
OUT+: Output positive, OUT-: Output negative
Note: Input voltage range is DC 6-40V and 40v is the limit voltage; please leave a room to use. Or else it will be burnt. The input must be DC power supply, not AC 220V, or else it will be burnt too. Though this module has reverse connection protection and output short circuit protection, you can muse be in strict accordance with connection description to connect. If you connect the supply power with output, the module will be burnt.
Operating instructions
When connect the power supply, the screen shows welcome window firstly and then comes into main interface.
Set the output voltage and output current on the main interface.
Press V/UPkey shortly, you can enter into voltage setting status. Then press the coding potentiometer, and then enter to adjust the numerical value. Press coding potentiometer to enter into the status of adjusting the numerical value you want to adjust. Turn coding potentiometer to adjust th
