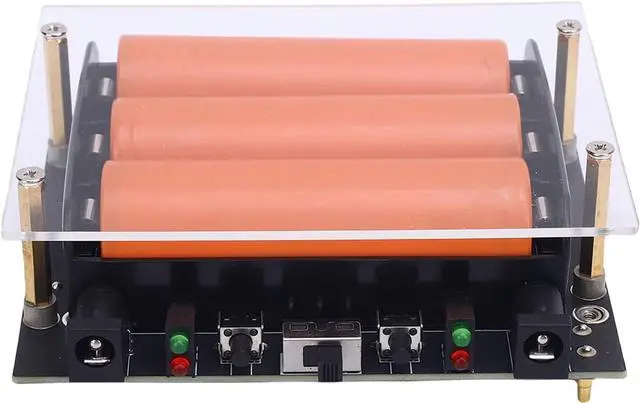

Uninterruptible Power Supply UPS Module, 5000mAh Battery X 3 Supports Charging & Discharging, Spring Loaded Pin Interface for Orin Series Motherboards

[Dynamic Switching and Real-time Monitoring] Features an onboard battery charging chip with i2c interface for monitoring battery voltage, current, power, and capacity.
[Extended Standby Time] Equipped with 3 onboard batteries to enable extended standby time, along with a warning indicator for checking battery connection.
[Stable Power Supply] Provides a stable power supply with a warning indicator for battery connection and balanced charging for continuous performance and safety.
[Supports Simultaneous Charging and Discharging] Ensures uninterrupted performance for orin series motherboards with a seamless connection using a spring loaded pin interface.
[Built-in Battery Guard Circuit] Safeguards against overcharge, overdischarge, overcurrent, short circuit, and reverse connection, with balanced charging for added safety.

Spec:

Item Type: UPS ModuleMaterial: PCB
Output Voltage: When there is input, it is input voltage, when there is no input, it is battery voltage (9V-12.6V)
Input Voltage: 15V-19V
Control Interface: I2C
Battery: 5000mAh Battery x 3 (in series) (with matched battery included)
Product Size: Approx. 100mm x 79mm / 3.94in x 3.11in
Hole Diameter: 2.5mm



Package List:
1 x UPS Expansion Board Module
1 x Acrylic Board
1 x Screw Pack
1 x Cord
3 x Batteries
