Homairate DC Power Supply Multimeter, 4 1/2 Bit 2.8in LED Display Efficient Heat Dissipation Variable Multimeter Power Supply Tester 30V 5A for Desktop (US Plug)

1. 2 IN 1 DESIGN: The combination of DC power supply and multimeter provide multiple functions in a single machine, providing less space, high performance and higher productivity
2. MULTIPLE FEATURES: The SPM3051 has an output power of 150W with an output range of 5A, and the power supply also has an SCPI enabled USB charging port that allow you to charge your phone or other device, or power a device awaiting repair
3. METER FUNCTION: Not only a laboratory power supply, but also can be used as a 4 1/2 bit multimeter. Easily measure voltage, current, capacitance, , continuity, and perform diode tests. The 2.8in LCD display provide high resolution (10mV/1mA) and is easy to use
4. STRONG CIRCUIT PROTECTING: Laboratory power supplies have a variety of circuit settings to ensure safe and worry operation. Independent output on off button control circuit protect. Overvoltage and overcurrent values can be set to protect the circuit. Intelligent switching mode CV ensure effective circuit protecting, and when the actual current exceed the preset current value, the power supply automatically switch to the mode to protect circuit

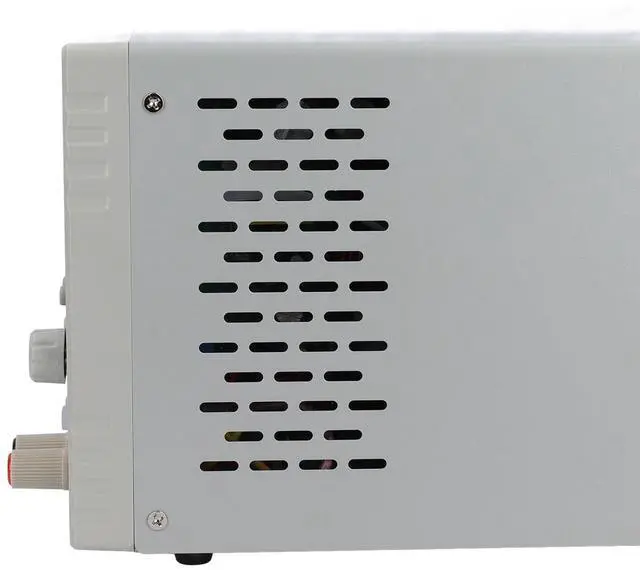

5. WIDE RANGE OF APPLICATIONS: Power supply multimeter is equipped with intelligent temperature control fan and efficient heat dissipation, ideal for laboratories, electronic repair, equipment maintenance, production lines, scientific and educational institutions, as well as mobile phone and laptop repair, PCB burn in testing, battery charging experiments, etc.

Spec:
Item Type: Power Supply Multimeter
Interface: USB, support SCPI protocol
Model: SPM3051
Channel: Single channel output
Total Power Output: 150W constant power output
Interface: USB device, USB host(5V1A output only)
Operating Temperature: 0-40
Display Type: 2.8in(240x320) color LCD
Size(LxWxH): Approx. 82 x 142 x 226mm / 3.23 x 5.59 x 8.9in
Power Supply Performance Parameter:
Model: SPM3103
Maximum Bits: 4 1/2, automatic range
DCV: 200.00mV: ±(0.3%±10digit), 2.0000V, 20.000V, 200.00V, 1000V: ±(0.3%±5digit)
ACV: Listed 200.00 mV, 2.0000 V, 20.000 V, 200.00 V, + / - 0.8% (plus or minus 10 digit), 750 V, + / - 1% (plus or minus 10 digit)
Current:
DCA: 200.00 MA: Plus Or Minus 0.8% (plus Or Minus 10 Digit), 10.000 A: Plus or minus 2.5% (plus or minus 10 digit)
MA: ACA: 200.00 Plus Or Minus 1% (plus Or Minus 10 Digit), 10.000 A: Plus or minus 2.8% (plus or minus 10 digit)
: 200.00, 2.0000k, 20.000k, 200.00k, 2.0000M: ±(0.8%±10digit), 20.000M: ±(1%±3digit), 100M: ±(5%±10digit)
Capacitance: 20.000nF, 200.00nF, 2.0000uF, 20.000uF, 200.00uF, 2.0000mF: ±(3.0%±10digit)
Transient Recovery Time(50%- Rated Load): 1.0ms
Storage: 4 Groups of data
Power Supply Specifications:
150W constant power design
High resolution 10mV/1mA
List waveform editing output, can edit 10 groups of timed output functions
Overvoltage or overcurrent protective function
Multimeter Indicators:
4 1/2 bit 20000 count automatic range multimeter

How to Use:
View the instruction manual for operation.

packing list:
1 x Mainframe
1 x Test Probe
1 x Power Cord
1 x Grounding Wire
1 x Fuse
2 x Multimeter Probes
2 x User Manuals
