350w 12/24v Universal AC UPS/Charge Function Monitor Switching Power Supply Input 110/220v Battery Charger Output 27.6VDC(24V)

350w 12/24v universal AC UPS/Charge function monitor switching power supply input 110/220v battery charger output 27.6VDC
To ensure the lifetime of the power supply, pls don't use full load when you use it. We recommend the use power should be 80% of the rated power.For example: the label of the power supply is 350W, use power should be : 350W*80%=280W

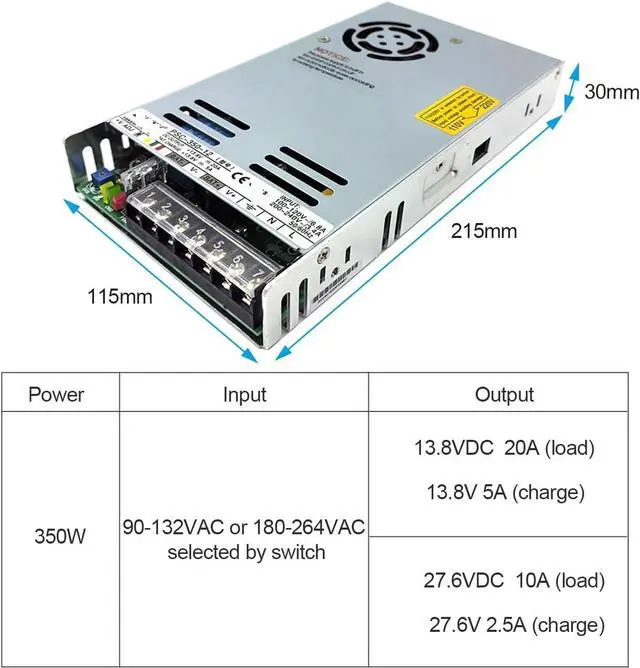

Specifictation:
Input voltage: 110/220vac selected by switch
PSC -350-12
CH1:13.8VDC 20A(Load)
CH2:13.8V 5A(Charge)
PSC-350-24
CH1:27.6VDC 10A
CH2:27.6V 2.5A(Charge)
Ripple voltage; not more than 100 mV
Voltage-stabilized equivalent internal resistance: not more than 0.O5
Short circuit, overload protection and automatic recovery
1. International common AC input voltage range is switched by switching
2. Small size, light weight, high efficiency, height only 30mm

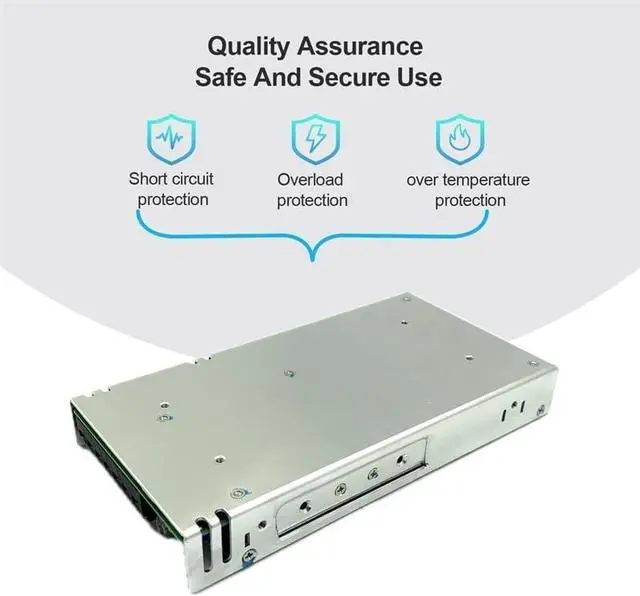

3. Protection characteristics: short circuit / overload
4. Battery low voltage protection

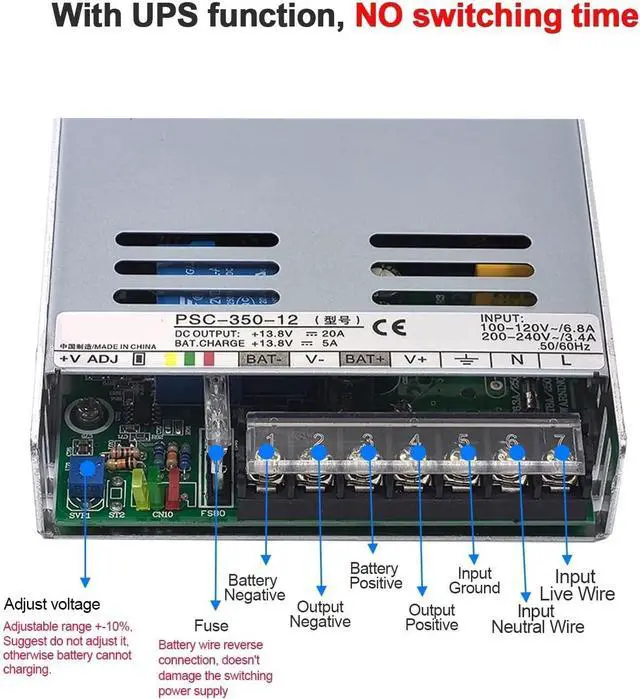

Indicator Description
GREEN:DC output
RED:AC input
