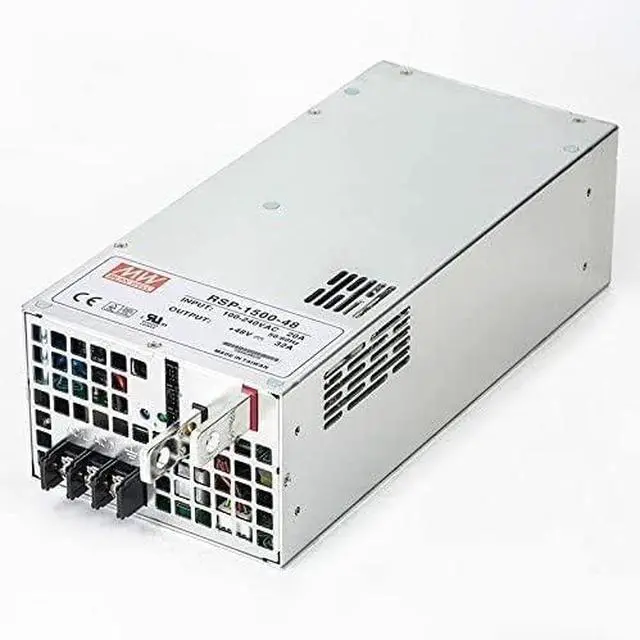

Meanwell RSP-1500-48 Power Supply - 1500W 48V 32A - Parallel

Features:
Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
Vo can be trimmed by external resistor or external control signal
Built-in current sharing
Built-in remote sense and ON/OFF control
Built-in auxiliary power
Alarm signal output
5 years warranty
General Specification (Please refer to images below for detailed datasheet)
AC input voltage range:90~264VAC; 127~370VDC
AC inrush current (max.):Cold start, 60A at 230VAC
DC adjustment range:-30%~+10% rated output voltage
Overload protection Range:105%~135%
Overload protection Type:Constant current limiting, shut off after 5 sec., re-power on to recover
Over voltage protection Range:115%~140%
Over voltage protection Type:Shut down O/P voltage, re-power on to recover
Withstand voltage:I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature:-20~+70°C
Safety standards:UL60950-1, TUV EN60950-1 approved
EMC standards:EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Input:3P/13mm pitch terminal block with cover
Connection Output:Copper pillars
Dimension (LxWxH):278x127x83.5
Case No.:943A
Packing:3.0kg; 4pcs / 13kg / 1.19CUFT
