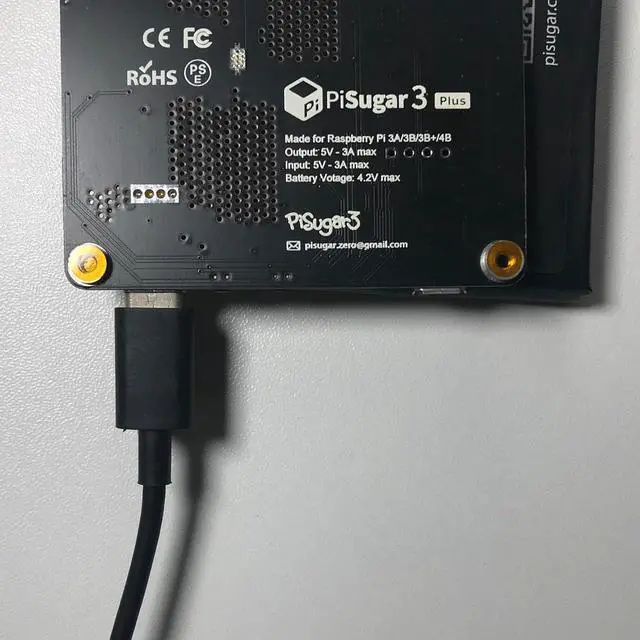

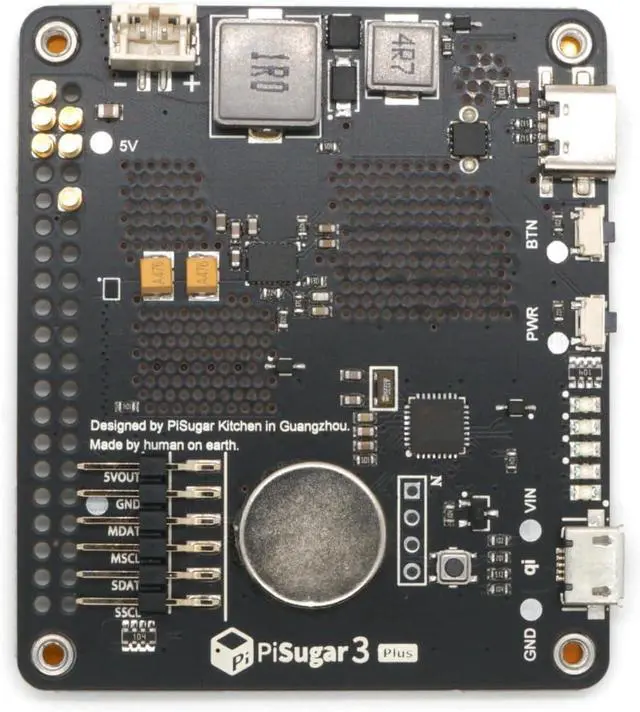

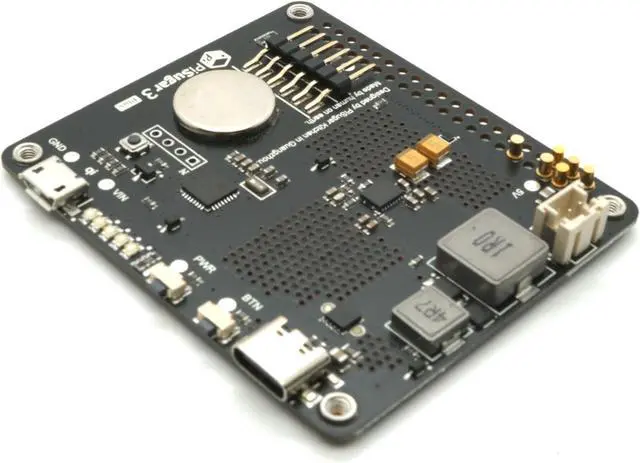

Pisugar 3 Plus Portable 5000 mAh UPS Lithium Battery Power Module Platform for Every Raspberry Pi 3B/3B+/4B Model Accessories handhold(Not Include Raspberry Pi)
- Pisugar 3 Plus adds a software watchdog function. When the function is turned on, the dog needs to be kicked regularly, which can effectively prevent the Raspberry Pi from crashing and improve the reliability of the system.
- Pisugar 3 Plus provides hardware battery protection like never before, limiting battery voltage to nearly 80%. When charging protection is turned on, the battery cycles life can be improved.Set up quadruple overvoltage protection function, overcurrent protection function and undervoltage protection function to ensure the safety of the Raspberry Pi, PiSugar as well as the lithium battery.
- A new design based on the feedback of PiSugar2, Pisugar 3 Plus using independent MCU control to achieve communication and functions. The device firmware can be upgraded without any additional equipment. Only with a simple demand, firmware upgrades can be achieved through Raspberry Pi, let the device get new features at any time.
- Pisugar 3 Plus has full UPS functions and can set
+
+
Overview
Specs
Reviews
Pisugar 3 Plus is the third generation of PiSugar Raspberry Pi battery power supply series, making Raspberry Pi a portable device. With the on-board RTC, the Raspberry Pi can get the correct time whether its powered or networked. Features Full functions UPS Anti-Mistaken Touch Switch: Effectively avoid shutdown caused by accidental touch OTA firmware upgrade TypeC/mircroUSB dual charging interface Designed for Raspberry Pi 3B/3B+/4B Back contact, easy to install, does not occupy GPIO I2C function control, address can be set Custom button Soft shutdown (hardware notification software shutdown) WebUISupport multiple function one-key setting Software watchdog: This function can restarts the Raspberry Pi system when the Raspberry Pi system crashes. On-board RTCRTC has a write protection function in order to prevent data fluctuations caused by misoperation or system instability. Hardware battery protection: PiSugar3 provides hardware charging protection function, which effectively improves battery cycle life. Electrical Specifications Input: 5V-3Amax Output: 5V-3Amax Battery capacity: 5000mah Communication interface: I2C interface 0x57/0x68 address (can be set) Package contains: 1battery module 4 x screws More details can be found on Github.
