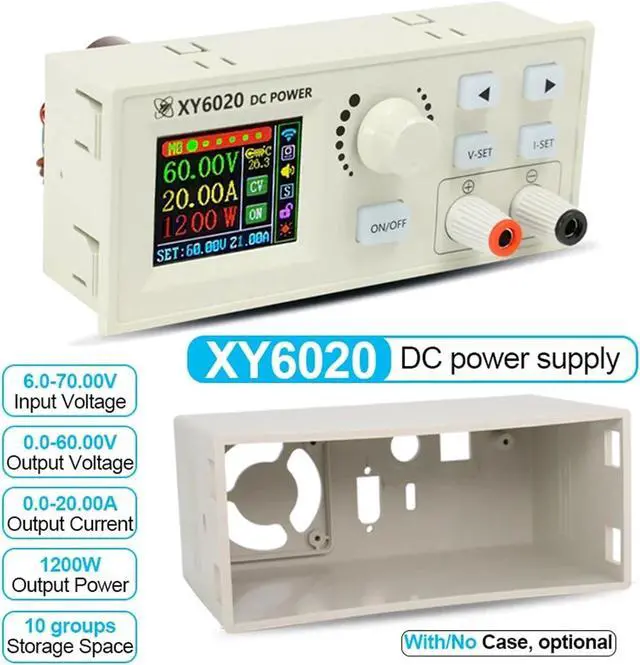

20A 1200W Adjustable Stabilized Power Supply Step-Down Regulated Module Constant Voltage and Constant Current Maintenance(XY6020 Case No WiFi)

Power Supplies
20A 1200W Adjustable Stabilized Power Supply Step-down Regulated Module Constant Voltage and Constant Current Maintenance
Description:

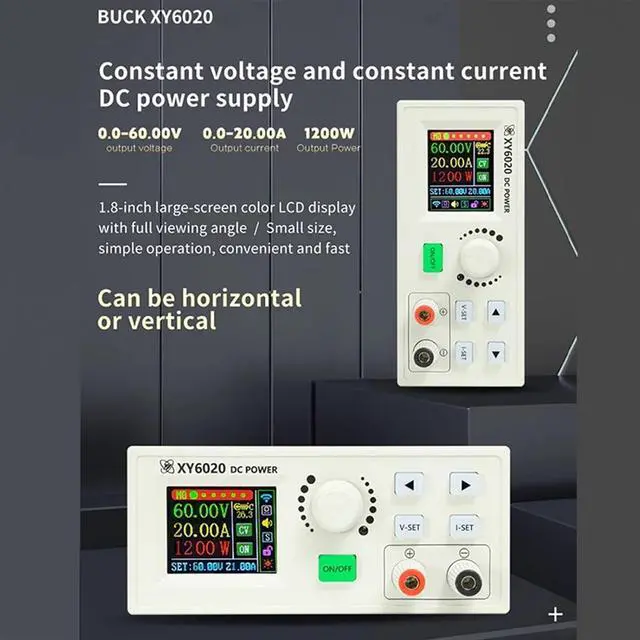

This is a kind of quality constant voltage constant current direct-current powersupply, with 60V output voltage, 20A output current, 1200W output power, strong and powerful. Large size 1.8inch colorful screen, high brightness, multiple informations will displayed in one screen.
Features:
1.8in colorful screen, horizontal and vertical screen adjustable.
Made of fine quality material, safer to use.
8 display colors can be matched freely.
With a remote controller for easy and convenient operation.
Support over temperature protections and automatically stop charging when over temperature.
High accurancy circuit board, stable performances.
Specifications:
Type: XY6020 without Wi-Fi module ; XY6020-W with Wi-Fi module(optional)
Input voltage range: 6-70V ±1%
Output voltage range: 0-60V ±0.4%
Output current range: 0-20A ±0.5%
Output power range: 0-1200W
Input voltage measuring resolution: 0.01V
Output voltage setting measuring resolution: 0.01V
Current setting measuring resolution: 0.01V
Typical value of output ripple: 100mV VPP
Working temperature: -10 to 40
Capacity measuring range: 0-99999Ah ±2%
Power measuring range: 0-99999Wh ±2%
Working time measuring range: 0-1000h
Screen size: 1.8in
Remote controller battery: 1 * CR2025, 3V, 150mAH

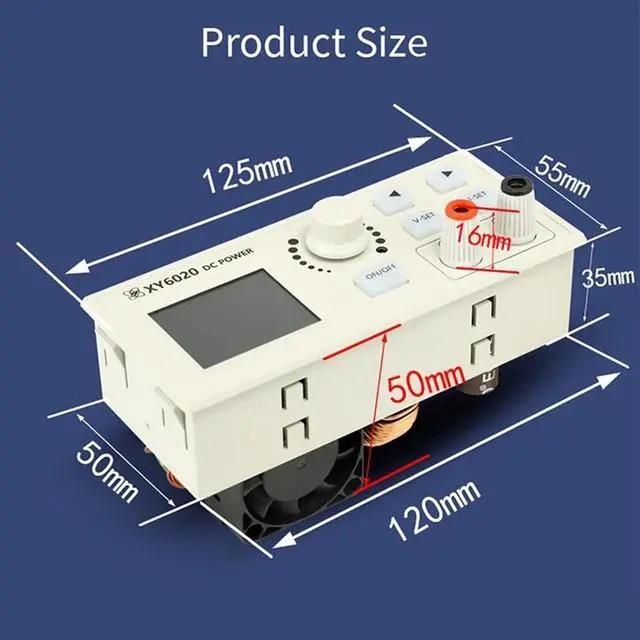

Item size: 125 * 55 * 35mm / 4.9 * 2.2 * 1.4in
Item weight: 256g / 9.0ounce
Package size: 150 * 100 * 90mm / 5.9 * 3.9 * 3.5in
Package weight: 341g / 12.0ounce
Packing List:

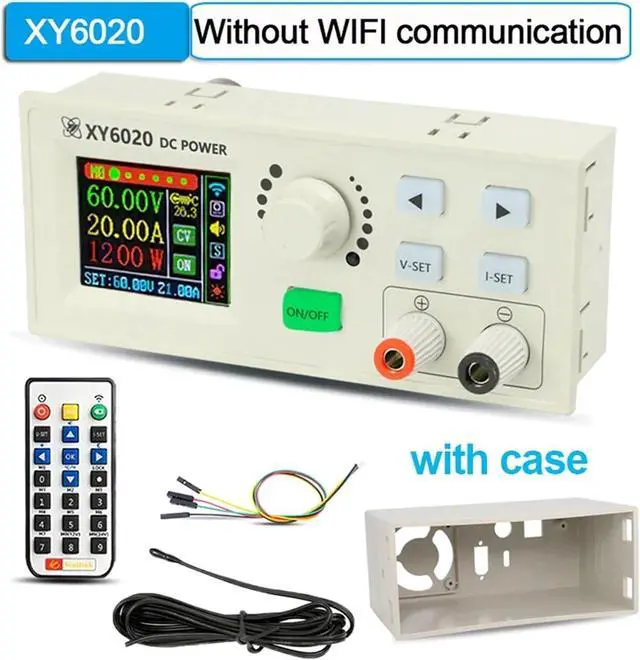

XY6020:
1 * Power Supply Module
1 * Temperature Sensor(1m)
1 * Remote Controller(not include battery)
1 * Serial Communication Line
XY6020-W:
1 * Power Supply Module
1 * Temperature Sensor(1m)
1 * Remote Controller(not include battery)
1 * Serial Communication Line
1 * WIFI Communication module
