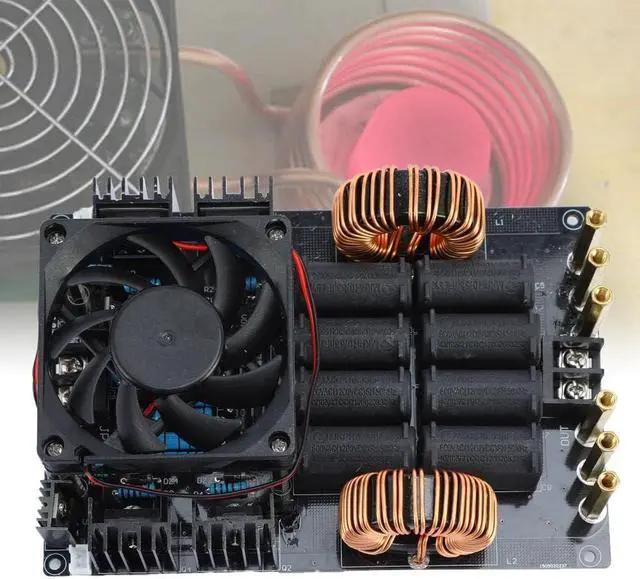

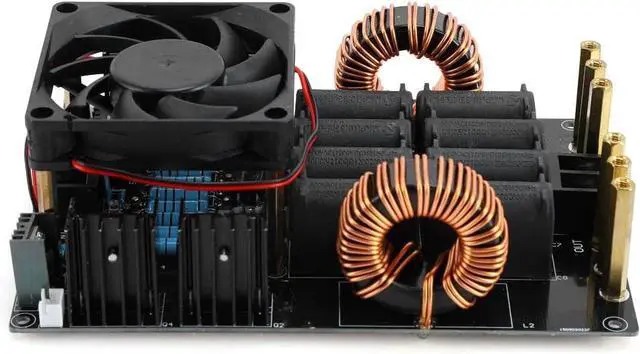

Induction Heating Board,1000W 50A DC 12-40V Induction Heating Board ZVS Power Supply Module Low Voltage Flyback Driver Heater Tesla Coil for DIY Small Parts Heat

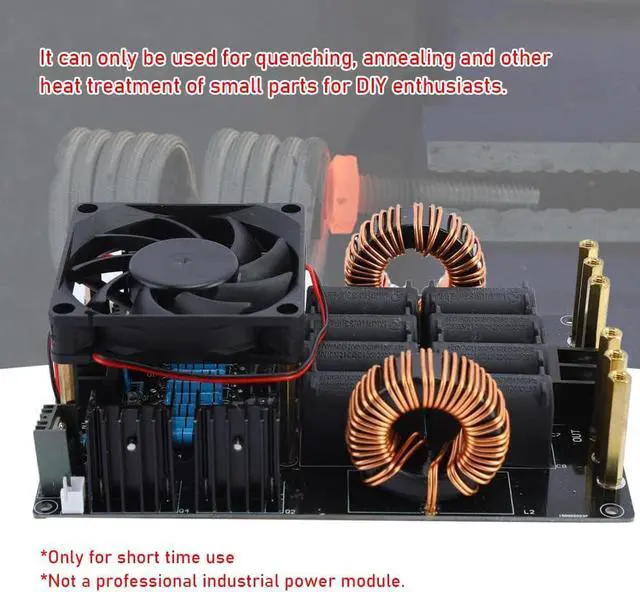

- Can only be used for quenching, annealing and other heat of small parts for DIY enthusiasts, only for short time use, not a professional industrial power module.
- Selected material, durable to use. Cooling fan provides quick heat dissipation to prolong the service life. High quality and exquisite workmanship makes the positioning holes exactly match with the board.
- Input voltage: 12V-40V. The power supply used for heating must be large enough. For reference: 12V, current 20A; 24V, current 30A; 36V, current 50A. It depends on practical conditions.
- Use protected power sources whenever possible. Do not use battery to power. The working voltage should be above 11V, not the voltage when the power supply is unloaded. Hands-on skills and relev knowledge are required to use this module.

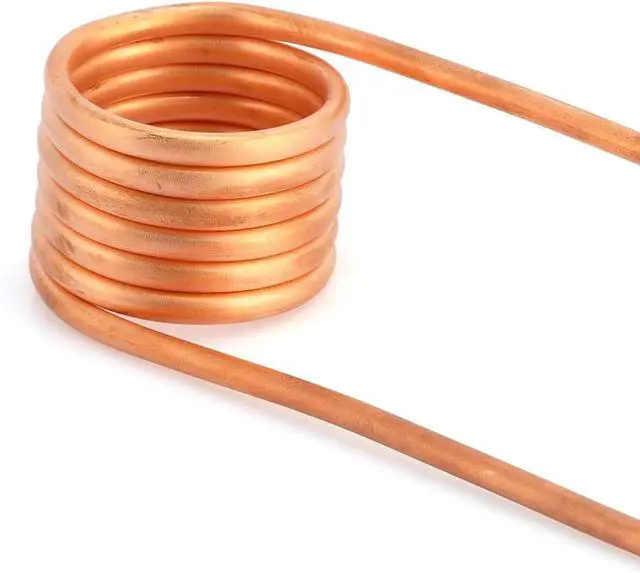

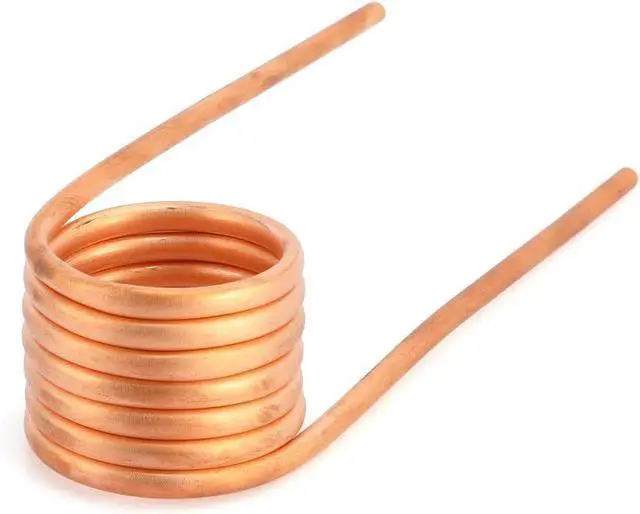

- 10mm copper tube can be installed on the copper column at the output end; the copper tube (4mm) can be welded to the copper clip and fixed on the copper column; the copper tube (2mm) can be connected t
+
+
Overview
Specs
Reviews
This is an induction heating board module for quenching, annealing and other heat of small parts used by DIY enthusiasts. It's of high quality and exquisite workmanship, and is durable to use. Hands-on skills and relev knowledge are required to use this module.
Note: Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
Specifications:
Main Color: Black
Main Material: PCB + Aluminum + ABS + Copper
Working Voltage: 11V
Maximum Power: 1000W
Input Voltage: 12V-40V (Recommended 24V-36V)
Input Current: 50A (for short time use)
Power Requirements: 20A at 12V, 30A at 24V, 50A at 36V

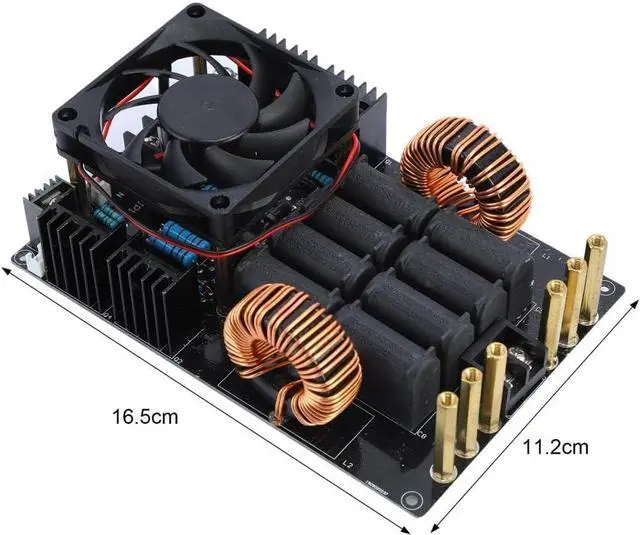

Item Size: 165 * 112 * 55mm / 6.50 * 4.41 * 2.17in
Package Size: 25 * 17 * 6.5cm / 9.84 * 6.69 * 2.56in
Package Weight: 813g / 1.79lbs

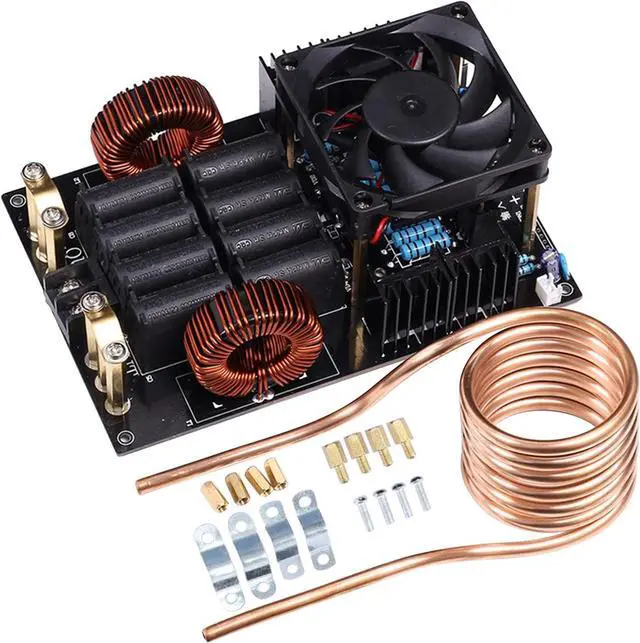

Package List:
1 * Power Module
1 * Copper Coil
4 * Screw
8 * Stud
4 * Connecting Piece
Note: Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.
Specifications:
Main Color: Black
Main Material: PCB + Aluminum + ABS + Copper
Working Voltage: 11V
Maximum Power: 1000W
Input Voltage: 12V-40V (Recommended 24V-36V)
Input Current: 50A (for short time use)
Power Requirements: 20A at 12V, 30A at 24V, 50A at 36V
Item Size: 165 * 112 * 55mm / 6.50 * 4.41 * 2.17in
Package Size: 25 * 17 * 6.5cm / 9.84 * 6.69 * 2.56in
Package Weight: 813g / 1.79lbs
Package List:
1 * Power Module
1 * Copper Coil
4 * Screw
8 * Stud
4 * Connecting Piece
