VAYALT 24V 50A 1200W DC Switching Power Supply, Universal Regulated Switching AC 110V/220V to DC 24V Transformer, 24V Power Supply for Industrial, CCTV, Computer Project, 3D Printer, LED Strip Light
- Universal ACThis Switching Power Supply is designed for input voltages of 110V/220V and offers an adjustable output voltage of 24V ±10% (V-ADJ). Maximum peak power 1200W 50A. The output current depends on the power requirements of the consuming equipment, capable of providing different currents/watts for multiple devices (recommended for devices with a power of 1200W 50A or less). For resistive devices, the SMPS peak power should be 1.25 times the device power. For motor equipment, the SMPS peak power needs to exceed twice the motor power. Variable speed motors are not applicable.
- Intelligent Cooling SystemThe new model switching power supply is equipped with an advanced intelligent temperature control fan that automatically senses temperature changes and starts up when the temperature exceeds 45°C, effectively preventing circuit board overheating and damage. Additionally, we have upgraded the heat sink design and applied high-end filtering technology, significantly enhancing t
+
+
Overview
Specs
Reviews

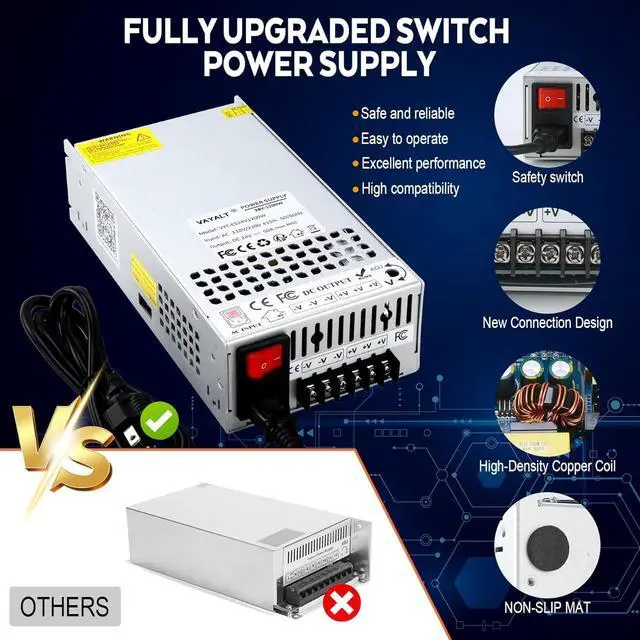

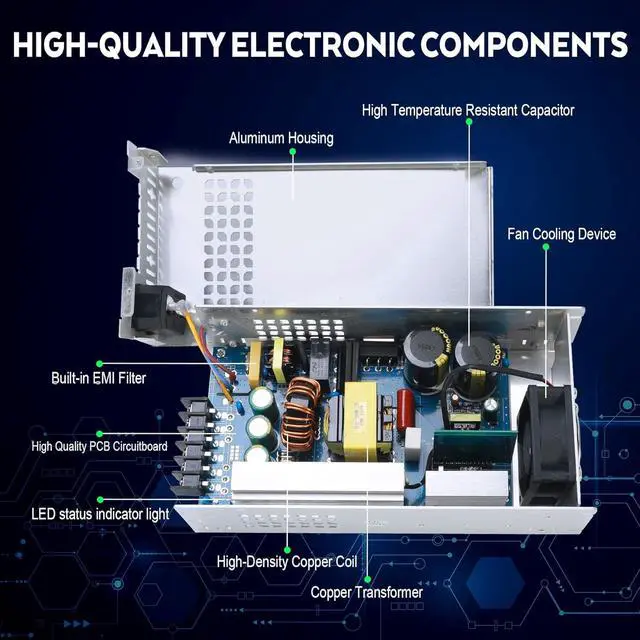

Switching Power Supply Features
1. High-quality components ensure reliability.
2. Built-in filters for strong anti-interference capability.
3. Full copper nickel-plated terminal material for high conversion efficiency.
4. Designed with multiple ventilation holes for enhanced heat dissipation.
5. High-strength aluminum alloy shell for durability.
6. Built-in intelligent fan for automatic temperature regulation.
In summary, this power supply offers a more reliable and safe-power experience with its safety, stability, and efficiency.
Please note: The intelligent cooling fan of our newly upgraded switching power supply will only activate when the temperature exceeds 45°C. It does not run when the temperature is normal-----The device is not faulty!

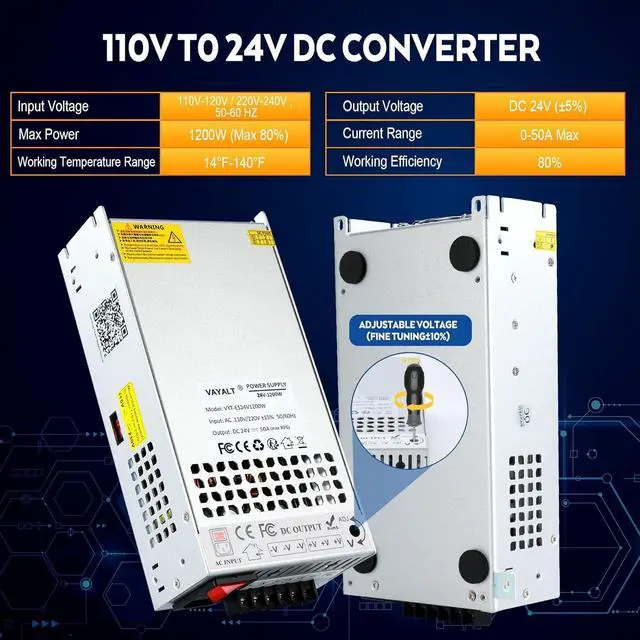

- Input: AC 110V/220V 50/60Hz
- Output Voltage: DC 24V (positive voltage 3, negative voltage 3)
- Efficiency: > 80%
- Output Current: 50AMax
- Output Power: 1200W Max
- Fixed Screw Hole Diameter: 2.5mm (0.1 inches)
- Operating and Storage Temperature: -10-60
- Operating Humidity: -10 to +60, 20%-90% RH
- Storage Humidity: -20 to +85, 10%-95% RH
- Materials: Metal, electronic components, high-strength aluminum alloy shell
Important Notes: The new model switching power supply is equipped with an advanced intelligent temperature control fan that automatically senses temperature changes and starts up when the temperature exceeds 45°C, effectively preventing circuit board overheating and damage
1. Choose a power supply that matches the power requirements of your device. It should operate below 80% of the rated power to prevent damage due to overloading (e.g., if your device's power requirement is 800W, you should purchase a power supply of 1000W or more).
2. To avoid filter interference, maintain a distance of 3.5 meters or more between the power supply and the device.
3. Do not use the power supply for an extended period of time under overload, as this may damage the device.
4. There is high voltage inside; do not remove the cover. Regularly check the power supply's heat dissipation to ensure good ventilation.
5. Do not use the power supply in extreme temperatures; the typical operating environment temperature range is between -10-55.
Important Reminder: Before use, please select 115V/230V through the switch to avoid damage. Set the switch to 115V for use in the United States VAYALT 24V 50A 1200W DC Switching Power Supply, 110V/220V AC to DC 24V Converter Technical Specifications: Intelligent Cooling System Important Notes:
1. High-quality components ensure reliability.
2. Built-in filters for strong anti-interference capability.
3. Full copper nickel-plated terminal material for high conversion efficiency.
4. Designed with multiple ventilation holes for enhanced heat dissipation.
5. High-strength aluminum alloy shell for durability.
6. Built-in intelligent fan for automatic temperature regulation.
In summary, this power supply offers a more reliable and safe-power experience with its safety, stability, and efficiency.
Please note: The intelligent cooling fan of our newly upgraded switching power supply will only activate when the temperature exceeds 45°C. It does not run when the temperature is normal-----The device is not faulty!
- Input: AC 110V/220V 50/60Hz
- Output Voltage: DC 24V (positive voltage 3, negative voltage 3)
- Efficiency: > 80%
- Output Current: 50AMax
- Output Power: 1200W Max
- Fixed Screw Hole Diameter: 2.5mm (0.1 inches)
- Operating and Storage Temperature: -10-60
- Operating Humidity: -10 to +60, 20%-90% RH
- Storage Humidity: -20 to +85, 10%-95% RH
- Materials: Metal, electronic components, high-strength aluminum alloy shell
Important Notes: The new model switching power supply is equipped with an advanced intelligent temperature control fan that automatically senses temperature changes and starts up when the temperature exceeds 45°C, effectively preventing circuit board overheating and damage
1. Choose a power supply that matches the power requirements of your device. It should operate below 80% of the rated power to prevent damage due to overloading (e.g., if your device's power requirement is 800W, you should purchase a power supply of 1000W or more).
2. To avoid filter interference, maintain a distance of 3.5 meters or more between the power supply and the device.
3. Do not use the power supply for an extended period of time under overload, as this may damage the device.
4. There is high voltage inside; do not remove the cover. Regularly check the power supply's heat dissipation to ensure good ventilation.
5. Do not use the power supply in extreme temperatures; the typical operating environment temperature range is between -10-55.
Important Reminder: Before use, please select 115V/230V through the switch to avoid damage. Set the switch to 115V for use in the United States VAYALT 24V 50A 1200W DC Switching Power Supply, 110V/220V AC to DC 24V Converter Technical Specifications: Intelligent Cooling System Important Notes:
