Waveshare Uninterruptible Power Supply (UPS) Module, Supports Charging and Power Output at The Same Time, 3S & 5V 5A Output, Compatible with Raspberry Pi 5/4B/3B+
- It is able to charge the batteries and provide power output at the same time from external power supply. Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble
- Adapting various interfaces via cables, easy to integrate into mobile robots or industrial control equipment. I2C bus communication, monitoring the batteries voltage, current, power in real time
- Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable

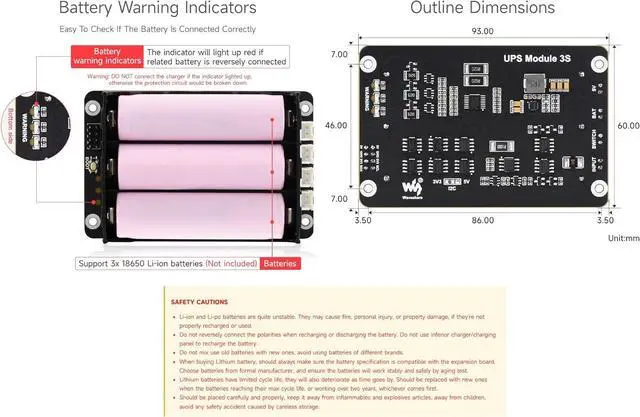

- Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi and Jetson Nano. Batteries warning indicators, easy to check if the battery is connected correctly
- The batteries required for this module are NOT included, please purchase the correct batteries seperately according to the instruction. With online devel
+
+
Overview
Specs
Reviews

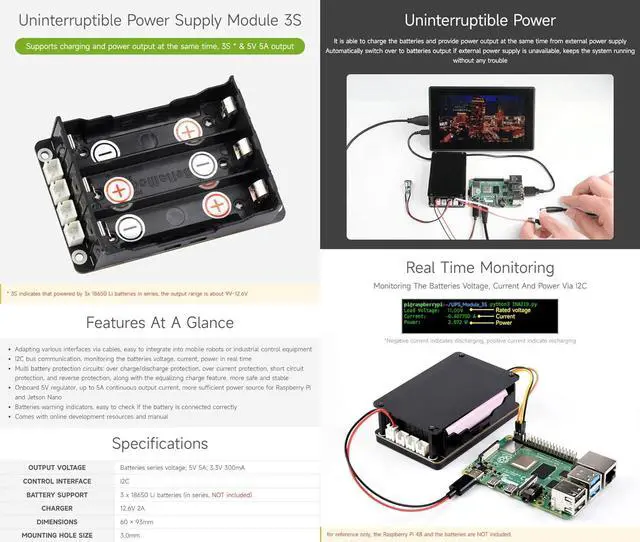

It is able to charge the batteries and provide power output at the same time from external power supply. Automatically switch over to batteries output if external power supply is unavailable, keeps the system running without any trouble
Adapting various interfaces via cables, easy to integrate into mobile robots or industrial control equipment. I2C bus communication, monitoring the batteries voltage, current, power in real time

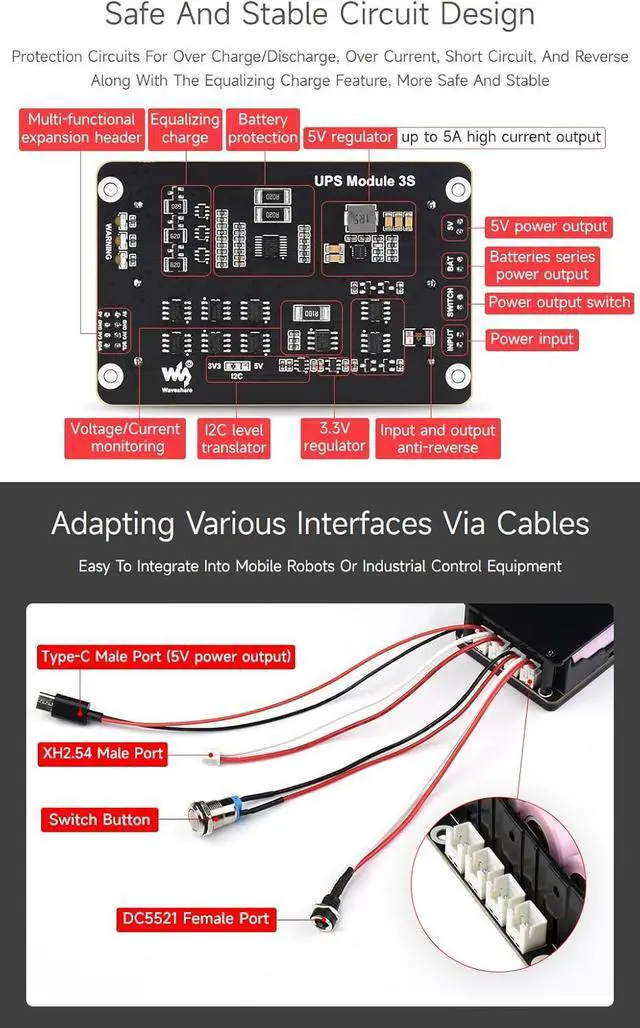

Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi and Jetson Nano. Batteries warning indicators, easy to check if the battery is connected correctly
The batteries required for this module are NOT included, please purchase the correct batteries seperately according to the instruction. With online development resources and manual, please refer to while using
Adapting various interfaces via cables, easy to integrate into mobile robots or industrial control equipment. I2C bus communication, monitoring the batteries voltage, current, power in real time
Multi battery protection circuits: over charge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
Onboard 5V regulator, up to 5A continuous output current, more sufficient power source for Raspberry Pi and Jetson Nano. Batteries warning indicators, easy to check if the battery is connected correctly
The batteries required for this module are NOT included, please purchase the correct batteries seperately according to the instruction. With online development resources and manual, please refer to while using
