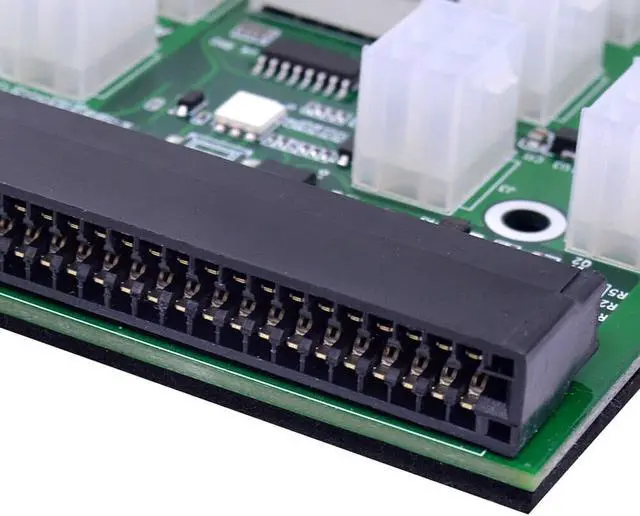

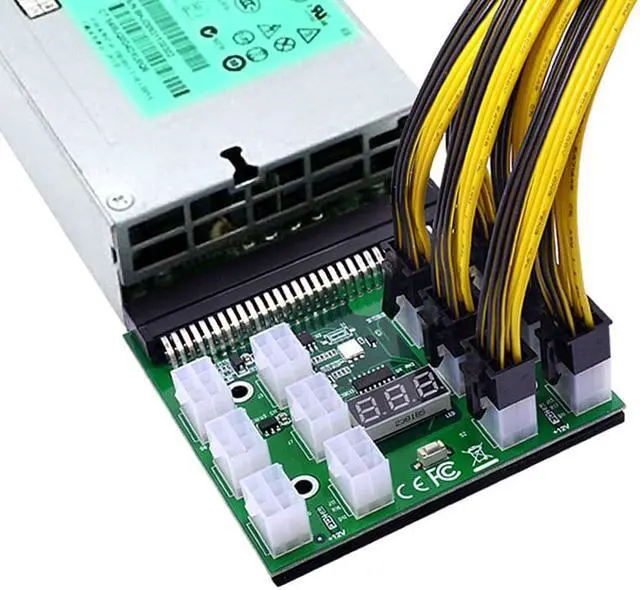

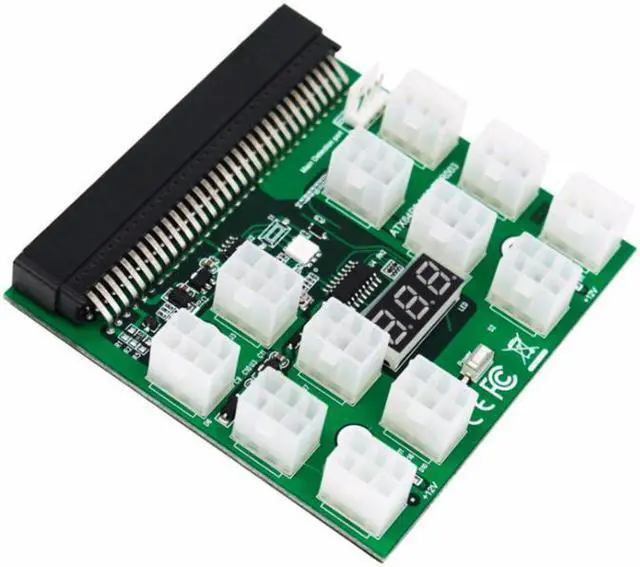

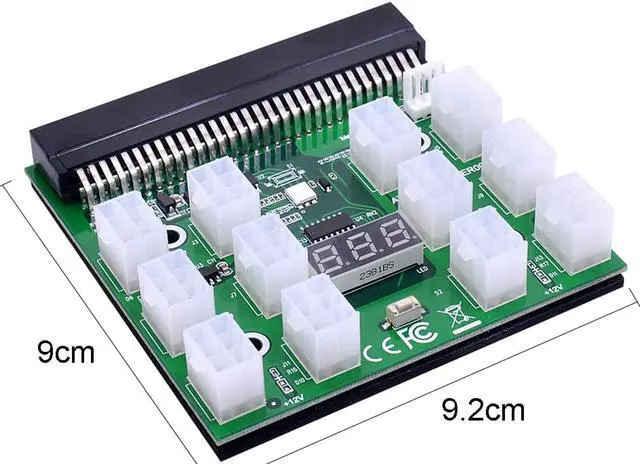

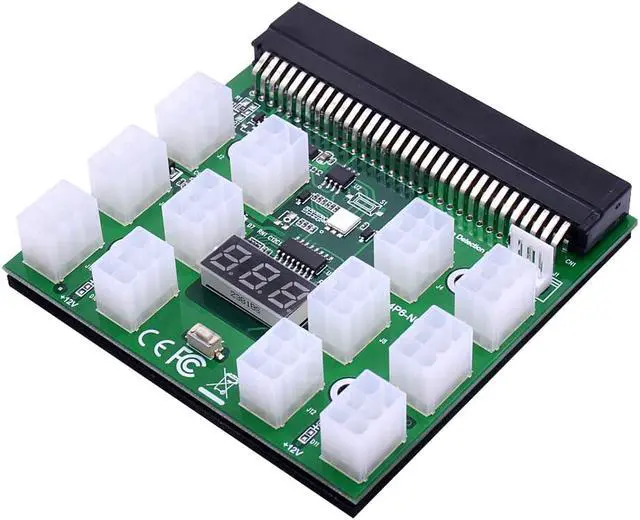

Weastlinks Power Module Breakout Board Kits with 12pcs 6Pin to 6+2 8Pin Power Cable for HP 1200W 750W PSU GPU Mining Ethereum
- 5 Volts-12 Ports Breakout Board(Not included Power Cable).
- 1200w/750w breakout board for HP PSU GPU Mining Ethereum ZEC ZCASH ETC with button.
- Voltmeter LED display,Electronics power on/off switch.
- Built-in (12/17) PCI-E connectors on board for quick easy connect.
- Fine workmanship and good performance.
- Support dual PSU starting at the same time with the small 4 pin connector.
+
+
Overview
Specs
Reviews
Features:
Brand new
Model: ATX64P6-N02 VER006
1200w/750w breakout board for HP PSU GPU Mining Ethereum ZEC ZCASH ETC with button.

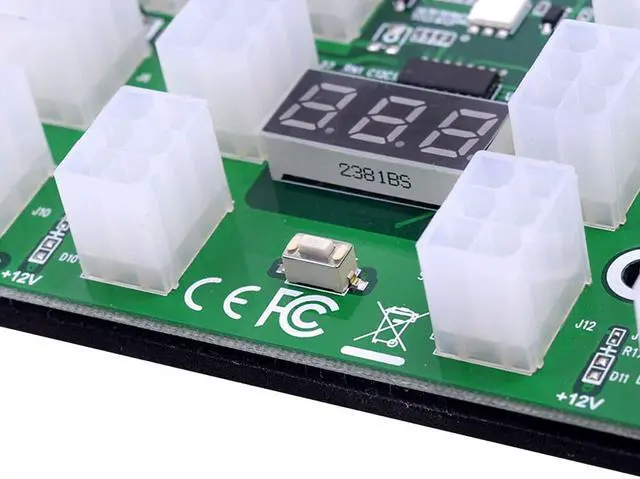

Voltmeter LED display.
Electronics power on/off switch.
Built-in (12/17) PCI-E connectors on board for quick easy connect.
Fine workmanship and good performance.
Long service life.
Support up to 12/17 PCI-e cable.
Compatible with the power supplies up to 1600Watts.
Support dual PSU starting at the same time with the small 4 pin connector.

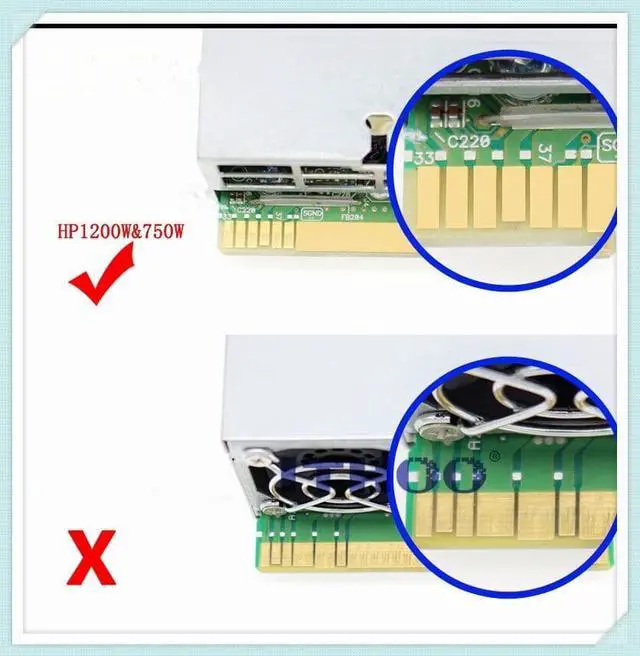

Supported "Common Slot" Power Supply Models:
DPS-1200FB A,DPS-1200QB A,PS-2751-5Q,PS-2751-LF-1F,HSTSN-PL12,HSTNS-PL11,HSTNS-PL18,HSTNS-PD11,DPS-700LB D,DPS-750RB A,PS-2112-5L,438202-002,441830-001,511778-001,506821-001,DL580.
Warm Tips
1. When the 4 pin port is connected to the main power supply, the power switch is invalid, and the power switch starts on and off with the power!
2. The matching 6 Pin cable is customized, please do not use other uncertain 6 pin cable to insert.
3. Be sure to recognize the direction when plugging in, and don't plug it in reverse or off-position to prevent the device from being burned. When plugging in, hold the socket of the device before plugging in, avoiding excessive force to break the socket pin.
Package included:
1 x 12 Ports Breakout Board
12 x 6Pin to 8Pin Power Cable
Brand new
Model: ATX64P6-N02 VER006
1200w/750w breakout board for HP PSU GPU Mining Ethereum ZEC ZCASH ETC with button.
Voltmeter LED display.
Electronics power on/off switch.
Built-in (12/17) PCI-E connectors on board for quick easy connect.
Fine workmanship and good performance.
Long service life.
Support up to 12/17 PCI-e cable.
Compatible with the power supplies up to 1600Watts.
Support dual PSU starting at the same time with the small 4 pin connector.
Supported "Common Slot" Power Supply Models:
DPS-1200FB A,DPS-1200QB A,PS-2751-5Q,PS-2751-LF-1F,HSTSN-PL12,HSTNS-PL11,HSTNS-PL18,HSTNS-PD11,DPS-700LB D,DPS-750RB A,PS-2112-5L,438202-002,441830-001,511778-001,506821-001,DL580.
Warm Tips
1. When the 4 pin port is connected to the main power supply, the power switch is invalid, and the power switch starts on and off with the power!
2. The matching 6 Pin cable is customized, please do not use other uncertain 6 pin cable to insert.
3. Be sure to recognize the direction when plugging in, and don't plug it in reverse or off-position to prevent the device from being burned. When plugging in, hold the socket of the device before plugging in, avoiding excessive force to break the socket pin.
Package included:
1 x 12 Ports Breakout Board
12 x 6Pin to 8Pin Power Cable
