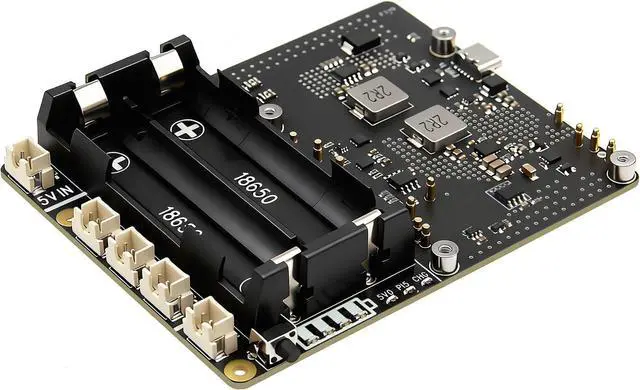

Geekworm X1201 Ultra-Thin 5V UPS Expansion Board for Raspberry Pi 5 | Max 5.1V 5A Output, Auto Power On, Safe Shutdown, Power Loss Detection, Batteries NOT Included

Compatibility: Low-profile compact Pi 5 UPS compatible with Raspberry Pi 5 16GB/8GB/4GB/2GB SBC; Model: X1201; Matching metal case is X1201-C1
Function: X1201 provides max 5.1V 5000mA Power Backup, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection
How to Power: Power via X1201 USB-C port: 5Vdc 5A via USB Type-C; Do not apply power to Raspberry Pi 5 via the Type-C USB socket
User Manual and Low Voltage Warning Solution: Google Geekworm Wiki and search X1201; Refer to the software guide on X1201 WiKi to Edit the EEPROM configuration to solve the Low Voltage Warning issue
Versatile and Ultra-thin Design: X1201 is designed to be attached on bottom, and expand the battery holders horizontally, which is ultra-thin and enabling easy stacking with other Raspberry Pi 5 accessory boards for enhanced applications
Packing List: 1 x X1201 Expansion Board; 1 x Screws Pack (The Raspberry Pi 5, active cooler, power adapter and batteries are NOT Included)
Multi-Layer BATT Protection: Features integrated hardware defense against overcurrent, overvoltage, and reverse cell connection, ensuring stable operation and complete peace of mind.(Batteries NOT Included)
