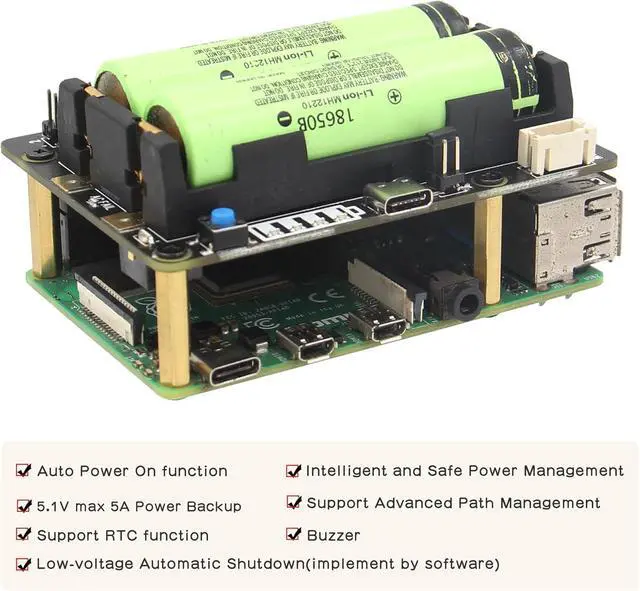

Geekworm X728 (Max 5.1V 5A) UPS & Power Management Board for Raspberry Pi 4 | AC Power Loss Detection, Auto Power on, Safe Shutdown, Battery Capacity Reading, Low Battery Auto Shutdown, Buzzer
- Power Management Features: X728 provides Max 5.1V 5000mA Power Backup, intelligent and safe power management, safe shutdown, auto power-on, full poweroff from software, Battery capacity reading, Low battery automatic shutdown, Buzzer alarm, RTC, Compatible with Raspberry Pi 4B/3B+/3B
- User Manual and Compatibility: Google Geekworm Wiki search X728 for manual; Matching metal case for X728 and Pi 4 is X728-C1
- Power Supply Specifications: Power supply via Type-C socket : 5Vdc 5%, 3A OR Via DC power jack : 5Vdc 5%, 4A; UPS output : 5.1V 5% Max 5A; UPS charging current: 2.33.2A; Terminal Battery Voltage : 4.24V; Recharge Threshold : 4.1V
- Important Safety Notes: Do not apply power to your RPi via the Micro USB or USB Type-C socket. Do not use battery with built-in protection circuit. Please make sure the polarity of battery is "+" to "+" and "-" to "-" and match with the "+" "-" mark on battery holder
- Expandable Application Options: X728 reserves the 40-pin header to stack with other Ras
+
+
Overview
Specs
Reviews
Power Management Features: X728 provides Max 5.1V 5000mA Power Backup, intelligent and safe power management, safe shutdown, auto power-on, full poweroff from software, Battery capacity reading, Low battery automatic shutdown, Buzzer alarm, RTC, Compatible with Raspberry Pi 4B/3B+/3B
User Manual and Compatibility: Google Geekworm Wiki search X728 for manual; Matching metal case for X728 and Pi 4 is X728-C1
Power Supply Specifications: Power supply via Type-C socket : 5Vdc 5%, 3A OR Via DC power jack : 5Vdc 5%, 4A; UPS output : 5.1V 5% Max 5A; UPS charging current: 2.33.2A; Terminal Battery Voltage : 4.24V; Recharge Threshold : 4.1V
Important Safety Notes: Do not apply power to your RPi via the Micro USB or USB Type-C socket. Do not use battery with built-in protection circuit. Please make sure the polarity of battery is "+" to "+" and "-" to "-" and match with the "+" "-" mark on battery holder
Expandable Application Options: X728 reserves the 40-pin header to stack with other Raspberry Pi accessory boards for enhanced applications. The X728 can also be used with the X825/X828/X829 (2.5" HDD/SSD Shield) and X857/X862/X872 (MSATA/M.2 SSD shield) for safe data backup
User Manual and Compatibility: Google Geekworm Wiki search X728 for manual; Matching metal case for X728 and Pi 4 is X728-C1
Power Supply Specifications: Power supply via Type-C socket : 5Vdc 5%, 3A OR Via DC power jack : 5Vdc 5%, 4A; UPS output : 5.1V 5% Max 5A; UPS charging current: 2.33.2A; Terminal Battery Voltage : 4.24V; Recharge Threshold : 4.1V
Important Safety Notes: Do not apply power to your RPi via the Micro USB or USB Type-C socket. Do not use battery with built-in protection circuit. Please make sure the polarity of battery is "+" to "+" and "-" to "-" and match with the "+" "-" mark on battery holder
Expandable Application Options: X728 reserves the 40-pin header to stack with other Raspberry Pi accessory boards for enhanced applications. The X728 can also be used with the X825/X828/X829 (2.5" HDD/SSD Shield) and X857/X862/X872 (MSATA/M.2 SSD shield) for safe data backup
