    Geekworm X-UPS1 12V/5V Dual Output Universal SBC Stackable Uninterruptible Power Supply UPS Shield with Acrylic Plate Compatible with Raspberry Pi/Orange Pi/Jetson Nano/Rock Pi/Tinker Board

    Be the first to review this product...
    • Compatibility: Compatible with most Single Board Computers (SBC) that uses 12Vdc or 5Vdc, such as Orange Pi 5/5B/4B, Raspberry Pi 5/4B/3B+/3B, Jetson Nano, Jetson Orin Nano, Jetson AGX Orin,Tinker Board, Rock Pi, Arduino etc
    • Stackable Design: X-UPS1 can be stacked to increase output current and battery life, each board provides max 3A power backup; Stack several X-UPS1 to provide long-lasting and higher output power for 24/7
    • Specifications: Power input (Single board) : 6-18Vdc ±5%, 3A; UPS output voltage : 12Vdc ±5%, 5.1Vdc ±5% UPS output current (Single boards) : Max 3A; UPS charging current (Single board) : 2.3~3.2A

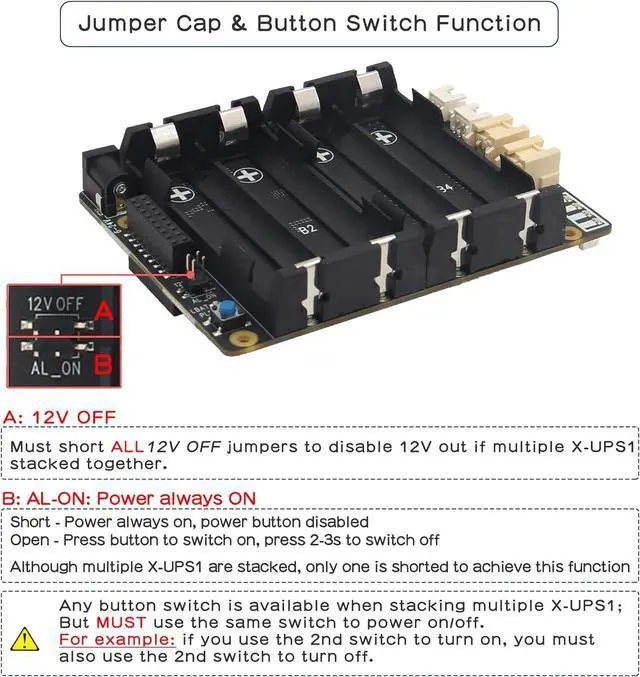

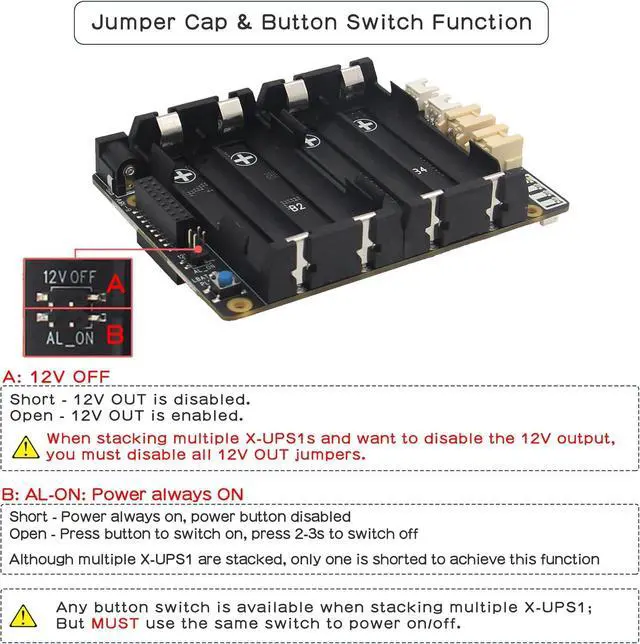

    • Multi Function: Wide power input 6-18V;AC power loss or power adapter failure detection;Low voltage detection; Auto power on; Protection of battery cell reverse connection
    • Packing List: 1 x X-UPS1 Expansion Board(not include battery); 1 x 4Pin PH2.0 to dupont cable; 1 x VH3.96 to DC5525 Cable; 1 x XH2.54 to DC5521 Cable; 1 x GPIO Header; 1 x Screws Pack
    • Note: The d
    +
    +
    Overview
    Specs
    Reviews
    The X-UPS1 is an universal stackable uninterruptible power supply (UPS) shield for most Single Board Computers (SBC) that uses 12Vdc or 5Vdc power input. The UPS ensures that in event of power interruption, a battery or any other power source will intervene without any effect on your board. The convenient stackable design allows you to connect several UPS modules on your boards to provide long-lasting & higher output power for even the most demanding SBC set ups that have constant power connections 24 hours a day, seven days a week.
    Get it by Friday, Jul 25Get it by Friday, Jul 25Get it by Friday, Jul 25Get it by Friday, Jul 25Customer ratings3.53.5 out of 5 stars53.93.9 out of 5 stars323.93.9 out of 5 stars313.83.8 out of 5 stars344.34.3 out of 5 stars504.04.0 out of 5 stars14Sold by Geekworm-CA waveshare waveshare waveshare Liccx Soft Electricpower plug type type a 2pin na no plug type a 2pin na type b 3pin na type b 3pin jppower outlets 6 1 1 1 2 1run time 2.22 hours 150 minutes 29 hours 6 hoursfrequency range 50/60 Hz (± 3 Hz) 50/60 Hz [50/60 Hz (± 3 Hz)] 50/60 Hz 50/60 Hz (± 3 Hz)output wattage 72 watts 25 watts 12.5 watts 25 watts 36 watts 15 wattswattage 72 watts 25 watts 12.5 watts 25 watts 36 watts 15 wattsvoltage 24 volts 5 volts 5 volts 5 volts 265 volts 5 voltsbattery composition lithium ion lithium ion lithium ion lithium lithium ion lithium polymer WARNING:
