Geekworm X1201 Ultra-Thin 5V UPS Shield for Raspberry Pi 5 |Max 5.1V 5A Output| Auto Power On|Safe Shutdown|Power Loss Detection
- Compatibility: Pi 5 UPS compatible with Raspberry Pi 5 8GB/4GB SBC; Model: X1201; Matching metal case is X1201-C1
- Function: X1201 provides max 5.1V 5000mA Power Backup, intelligent and safe power management like auto power on, safe shutdown, full power-off from software, power loss and power adapter failure detection
- How to Power: Power via X1201 USB-C port: 5Vdc 5A via USB Type-C; Do not apply power to Raspberry Pi 5 via the Type-C USB socket

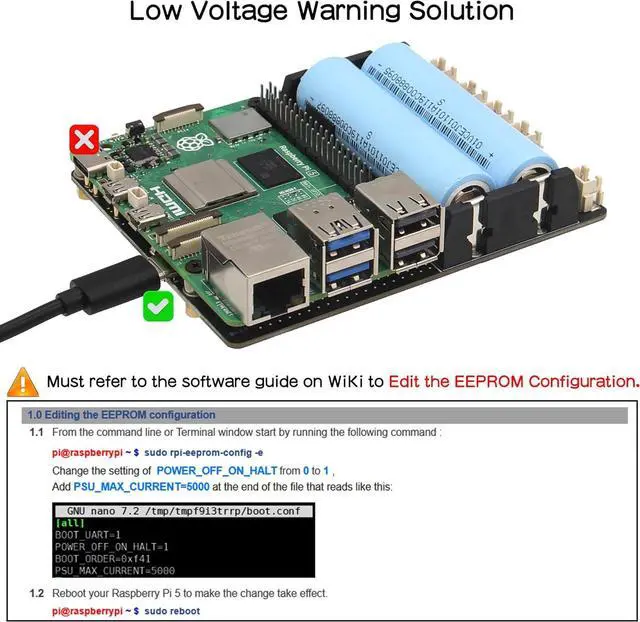

- User Manual and Low Voltage Warning Solution: Google Geekworm Wiki and search X1201; Refer to the software guide on X1201 WiKi to Edit the EEPROM configuration to solve the Low Voltage Warning issue

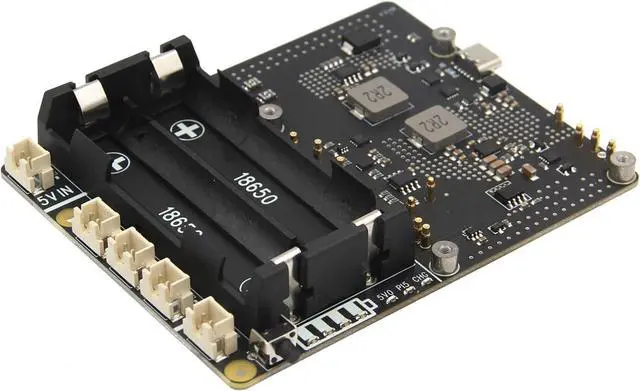

- Versatile and Ultra-thin Design: X1201 is designed to be attached on bottom, and expand the battery holders horizontally, which is ultra-thin and enabling easy stacking with other Raspberry Pi 5 accessory boards for enhanced applications
- 2-Cell Battery Supported: Battery length max 65.3mm, diameter max 18.5mm; NOT include batteries
- Packing List
+
+
Overview
Specs
Reviews
X1201 is an innovative uninterruptible power supply (UPS) expansion board designed specifically for the Raspberry Pi 5B. With its advanced features and robust power backup capabilities, the X1201 is perfect for even the most demanding Raspberry Pi setups.
Get it by Thursday, Jul 24Get it by Thursday, Jul 24Get it by Thursday, Jul 24Get it by Thursday, Jul 24Customer ratings4.04.0 out of 5 stars73.93.9 out of 5 stars323.93.9 out of 5 stars314.44.4 out of 5 stars2174.04.0 out of 5 stars14Sold by Geekworm-CA waveshare waveshare SunFounderCA Soft Electricpower plug type no plug type a 2pin na no plug no plug type b 3pin jppower outlets 1 1 1 0 1run time 510 minutes 2.22 hours 150 minutes 6 hoursfrequency range 50/60 Hz 50/60 Hz 50/60 Hz (± 3 Hz)output wattage 25 watts 12.5 watts 15 watts 15 wattswattage 25 watts 25 watts 12.5 watts 15 watts 15 wattsvoltage 5 volts 5 volts 5 volts 5 volts 5 voltsbattery composition lithium ion lithium ion lithium ion lithium ion lithium polymer WARNING:
Get it by Thursday, Jul 24Get it by Thursday, Jul 24Get it by Thursday, Jul 24Get it by Thursday, Jul 24Customer ratings4.04.0 out of 5 stars73.93.9 out of 5 stars323.93.9 out of 5 stars314.44.4 out of 5 stars2174.04.0 out of 5 stars14Sold by Geekworm-CA waveshare waveshare SunFounderCA Soft Electricpower plug type no plug type a 2pin na no plug no plug type b 3pin jppower outlets 1 1 1 0 1run time 510 minutes 2.22 hours 150 minutes 6 hoursfrequency range 50/60 Hz 50/60 Hz 50/60 Hz (± 3 Hz)output wattage 25 watts 12.5 watts 15 watts 15 wattswattage 25 watts 25 watts 12.5 watts 15 watts 15 wattsvoltage 5 volts 5 volts 5 volts 5 volts 5 voltsbattery composition lithium ion lithium ion lithium ion lithium ion lithium polymer WARNING:
