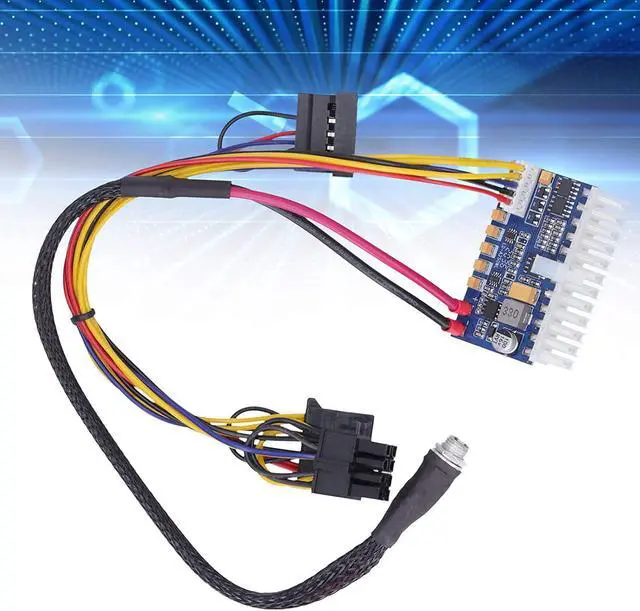

Alt view image 2 of 7 - LD A250WL Power Supply Adapter Board for Desktop Computer Transfer Module with High Performance, Heat Resistance, and Reliability, for Small ATX Boards, Saving Space in The Case

Alt view image 3 of 7 - LD A250WL Power Supply Adapter Board for Desktop Computer Transfer Module with High Performance, Heat Resistance, and Reliability, for Small ATX Boards, Saving Space in The Case

Alt view image 4 of 7 - LD A250WL Power Supply Adapter Board for Desktop Computer Transfer Module with High Performance, Heat Resistance, and Reliability, for Small ATX Boards, Saving Space in The Case

Alt view image 5 of 7 - LD A250WL Power Supply Adapter Board for Desktop Computer Transfer Module with High Performance, Heat Resistance, and Reliability, for Small ATX Boards, Saving Space in The Case

Alt view image 6 of 7 - LD A250WL Power Supply Adapter Board for Desktop Computer Transfer Module with High Performance, Heat Resistance, and Reliability, for Small ATX Boards, Saving Space in The Case

Alt view image 7 of 7 - LD A250WL Power Supply Adapter Board for Desktop Computer Transfer Module with High Performance, Heat Resistance, and Reliability, for Small ATX Boards, Saving Space in The Case

Shop All MyVolts Products | Visit Dazella store

LD A250WL Power Supply Adapter Board for Desktop Computer Transfer Module with High Performance, Heat Resistance, and Reliability, for Small ATX Boards, Saving Space in The Case

The adapter plate has high performance, high heat resistance and more reliability.
By directly inserting the motherboard ATX connector to eliminate 24 unnecessary wires, suitable for small ATX boards, saving space in the case.
With overcurrent protection: when the output current reaches the peak current, the output is turned off.
With short circuit protection: when the output is short circuited, the output is turned off.
Output voltage/maximum load is +5VSB/2A, +5VDC/6A, +3.3VDC/6A, +12VDC/16A, -12VDC/0.05A.

Overview

Reviews

Spec:
Item Type: Power Supply Adapter Board
Model: LD-A250WL
Material: PCB
Power: 250W
Input Voltage: 12V
Output Voltage/maximum Load: +5VSB/2A, +5VDC/6A, +3.3VDC/6A, +12VDC/16A, -12VDC/0.05A
Operating Frequency: IC built-in oscillator (250-350) kHz at Vcc-12V
Feedback Reference Voltage: 0.8V±2% at 12VDC
Interface: 1 x ATX24Pin, 1 x CPU4+4Pin, 1 x IDE, 1 x DC5525
Cable Length: DC Cable Length: Approx. 320mm / 12.6in
CPU Cable Length: Approx. 210mm / 8.3in
IDE Cable Length: Approx. 200mm / 7.9in
Protection Function: (for +3.3V, +12V, +5.00V and +5.00VSB power output)
Overcurrent Protection: When the output current reaches the peak current, the output is turned off
Short Circuit Protection: When the output is short circuited, the output is closed
Working Temperature/humidity: -5 ~ 55/45%~75%
Storage Temperature/humidity: -40 ~ 70/10%~90%
Applications: MINI computers, HTPC computers, POS machines, ITX cases, web servers, advertising machines, bank terminals, low-power systems, industrial control systems, etc.

PackageList:
1 x Power Supply Adapter Board
