$124.99
Ships from United States.
Sold by Zhengtuo Technology Co., Limited
Shipped by Zhengtuo Technology Co., Limited
Meet Your Seller

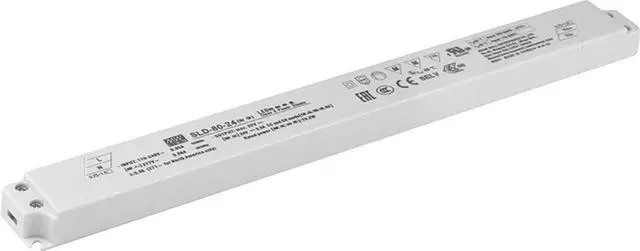

Mean Well SLD-80-24 79.2W Constant Voltage+ Constant Current LED Driver 24V/3.3A
- SLD-80 series is a AC/DC LED driver featuring the dual modes constant voltage andconstant current output. SLD-80 operates from 110305VAC and offers models with differentrated voltage ranging between 12V and 56V.
- Thanks to the high efficiency up to 92%, withthe fanless design, the entire series is able to operate for -20 ~ +90 case temperature underfree air convection.
- SLD-80 design with low profile and linear housing which is good for signageand linear luminaire applications.
- Constant Voltage + Constant Current mode output
- Wide input range 110-305VAC with PFC function
- Compliance with BS EN/EN61347 regulation
- Class 2/ I power unit (Except for 12V)
- Slim and Linear housing Design
- No load power consumption <0.5W
+
+
Overview
Specs
Reviews
SLD-80 series is a AC/DC LED driver featuring the dual modes constant voltage andconstant current output. SLD-80 operates from 110305VAC and offers models with differentrated voltage ranging between 12V and 56V.
Thanks to the high efficiency up to 92%, withthe fanless design, the entire series is able to operate for -20 ~ +90 case temperature underfree air convection.
SLD-80 design with low profile and linear housing which is good for signageand linear luminaire applications.
Constant Voltage + Constant Current mode output
Wide input range 110-305VAC with PFC function
Compliance with BS EN/EN61347 regulation
Class 2/ I power unit (Except for 12V)
Slim and Linear housing Design
No load power consumption <0.5W
Thanks to the high efficiency up to 92%, withthe fanless design, the entire series is able to operate for -20 ~ +90 case temperature underfree air convection.
SLD-80 design with low profile and linear housing which is good for signageand linear luminaire applications.
Constant Voltage + Constant Current mode output
Wide input range 110-305VAC with PFC function
Compliance with BS EN/EN61347 regulation
Class 2/ I power unit (Except for 12V)
Slim and Linear housing Design
No load power consumption <0.5W
