$116.99
Ships from United States.
Sold by Zhengtuo Technology Co., Limited
Shipped by Zhengtuo Technology Co., Limited
Meet Your Seller

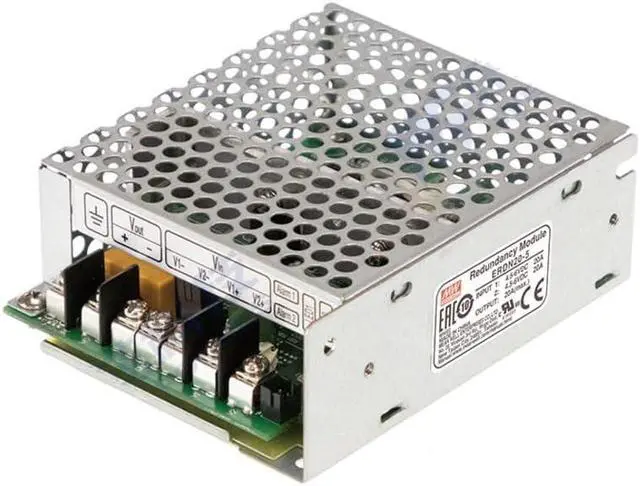

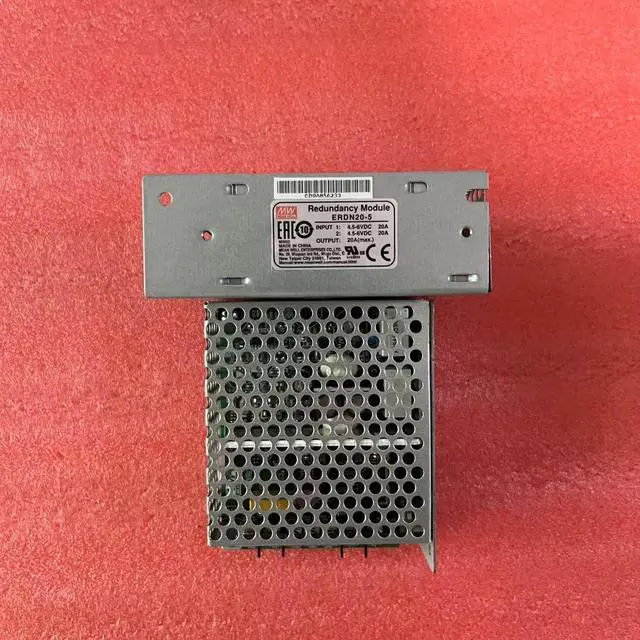

Mean Well ERDN20-12 20A Enclosed Type Redundancy Module ERDN20

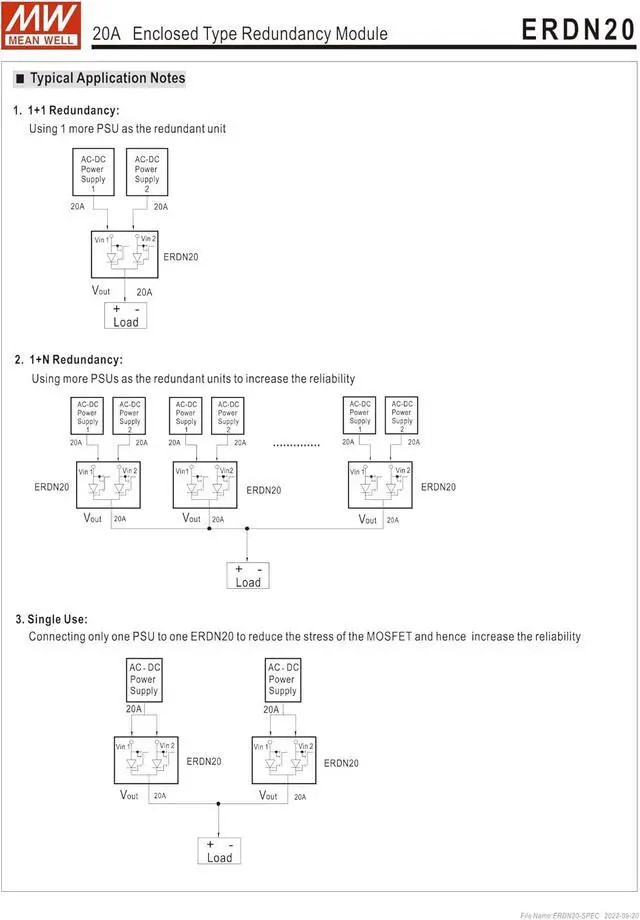

- Support 1+1 and N+1 redundancy system
- 2 channels input and 1 output
- Suitable for redundancy operation of 5V/12V/24V/48V system
- Output current up to 20A
- Cooling by free air convection
- -40~+80 ultra-wide operating temperature ( >+60°C derating)
- Built-in 2 channels DC OK signal and alarm relay contact
+
+
Overview
Specs
Reviews
Support 1+1 and N+1 redundancy system
2 channels input and 1 output
Suitable for redundancy operation of 5V/12V/24V/48V system
Output current up to 20A
Cooling by free air convection
-40~+80 ultra-wide operating temperature ( >+60°C derating)
Built-in 2 channels DC OK signal and alarm relay contact
2 channels input and 1 output
Suitable for redundancy operation of 5V/12V/24V/48V system
Output current up to 20A
Cooling by free air convection
-40~+80 ultra-wide operating temperature ( >+60°C derating)
Built-in 2 channels DC OK signal and alarm relay contact
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 15 days
- Return for replacement within: 30 days
- This item is covered by Zhengtuo Technology Co., Limited Return Policy
