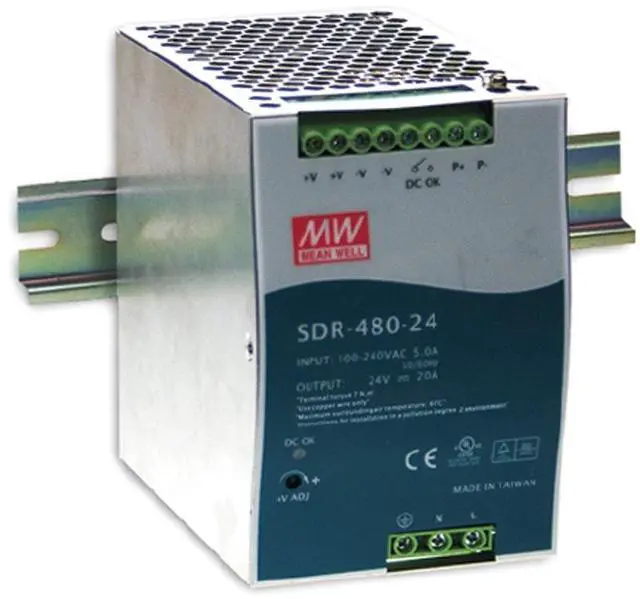

MEAN WELL SDR-480-24 24V 20 Amp 480W AC to DC DIN-Rail Power Supply

480 Watt 24V 20A DIN Rail Switching Power Supply 24 Volts 20 Amp Specifications Universal AC input range Protections: Short-circuit, Overload, Overvoltage, Over temperature 100% Full load burn-in test Soft-start circuit, limiting AC surge current Input Voltage: 88-264VAC 47-63Hz, or 124-370VDC Input Current Full load: 2.6A(115V) 1.3A(230V) Size: 4.9 x 3.4" x 5.0" Weight: 4.9 lbs. 3-year warranty Detailed Specifications: Primary Output Voltage (VDC): 24 Output Current (A): 20 Maximum Output Power (W): 480 Family: SDR-480 Input Voltage (VAC): 90 to 264 Input Frequency: 47 to 63 Maximum Input Current (A): 5 Output Connector Type: Screw Terminal Efficiency (%): 94 Operating Temperature-Min (Cell): -25 Operating Temperature-Max (Cell): 70 Length (inch): 3.37 Width (inch): 4.93 Height (inch): 5.06 Agency Approvals: ULCULTUVCBCE Color: Silver Style: DIN".
