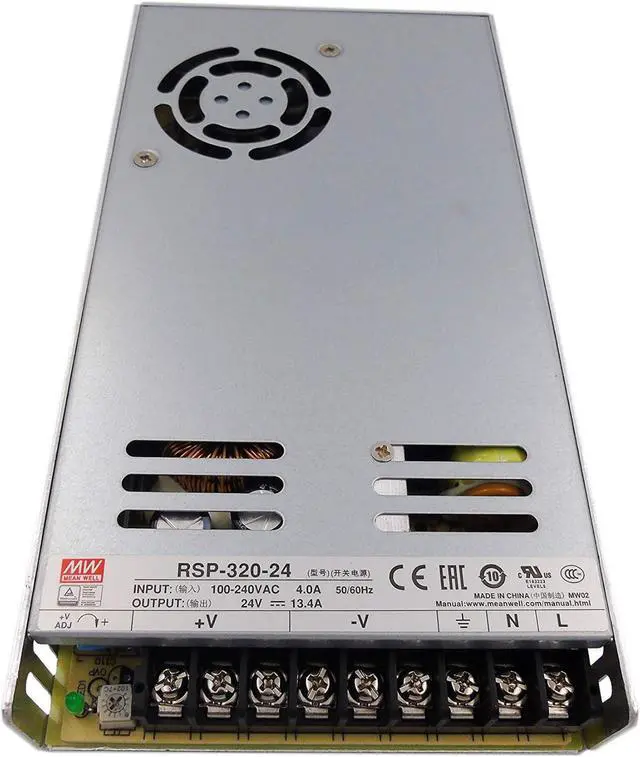

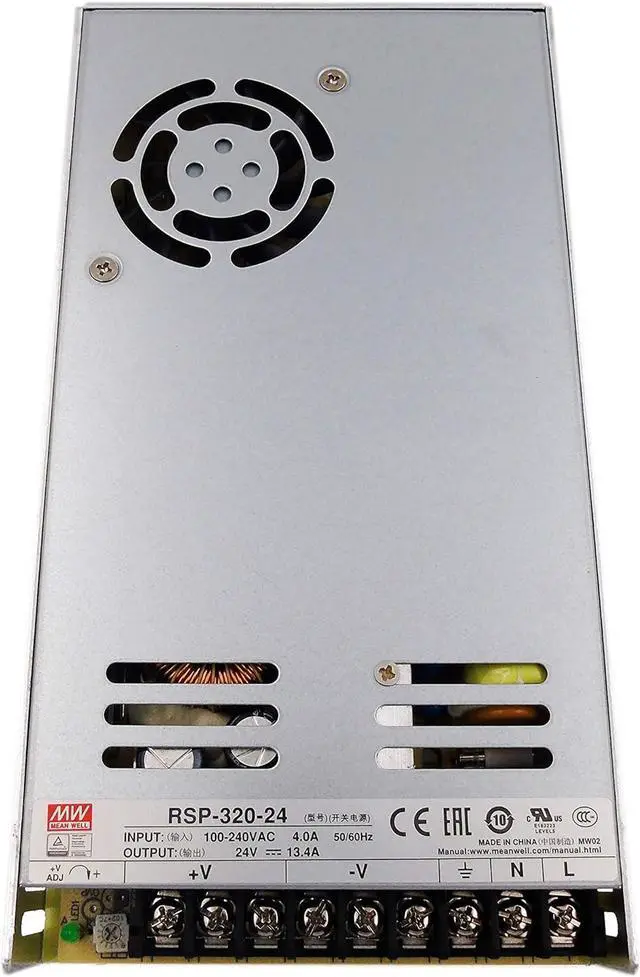

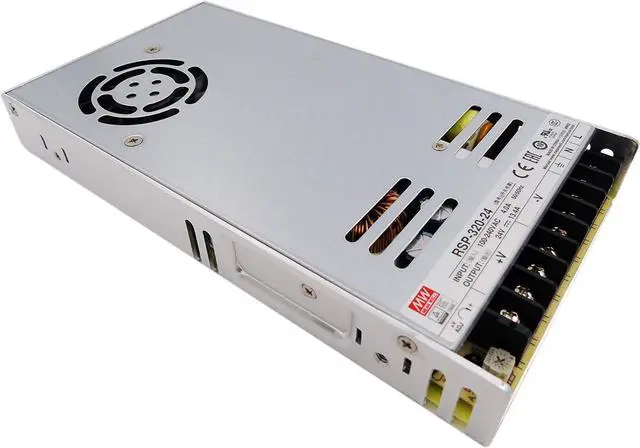

Meanwell RSP-320-24 321.6W 24V LED Power Supply Driver
- Input Voltage: 88 264V AC, 124 370V DC, Output Voltage: 24V, Number of outputs: 1, Output Current: 13.4A, Maximum Output Power: 321.6W, Ripple and noise: 150mV P-P
- 100-240 V
- 24 VOLT DC
+
+
Overview
Specs
Reviews
320W, Universal Input, Single Output, RSP-320 Series
The RSP-320 is 40% smaller in size compared to corresponding models. With 90% of high efficiency and the PFC function the RSP-320 can be cooled by the built in long life DC fan from -30 to +50 ambient temperature under full load condition and up to +70 by suitable de rating. This Power supply comes with protection for short circuit, over load, over voltage and over temperature. The RSP-320 is suitable for general industrial control system, mechanical and electrical industry, instruments, LED display, or any systems require low profile installations. 30mm low profile design for 1U installation Universal AC input range 88264V Built-in active PFC function High efficiency up to 90% Forced air cooling by built-in DC fan -30 to +70 operating range Protection: Short circuit / Overload / Over voltage / Over temperature LED indicator
The RSP-320 is 40% smaller in size compared to corresponding models. With 90% of high efficiency and the PFC function the RSP-320 can be cooled by the built in long life DC fan from -30 to +50 ambient temperature under full load condition and up to +70 by suitable de rating. This Power supply comes with protection for short circuit, over load, over voltage and over temperature. The RSP-320 is suitable for general industrial control system, mechanical and electrical industry, instruments, LED display, or any systems require low profile installations. 30mm low profile design for 1U installation Universal AC input range 88264V Built-in active PFC function High efficiency up to 90% Forced air cooling by built-in DC fan -30 to +70 operating range Protection: Short circuit / Overload / Over voltage / Over temperature LED indicator
