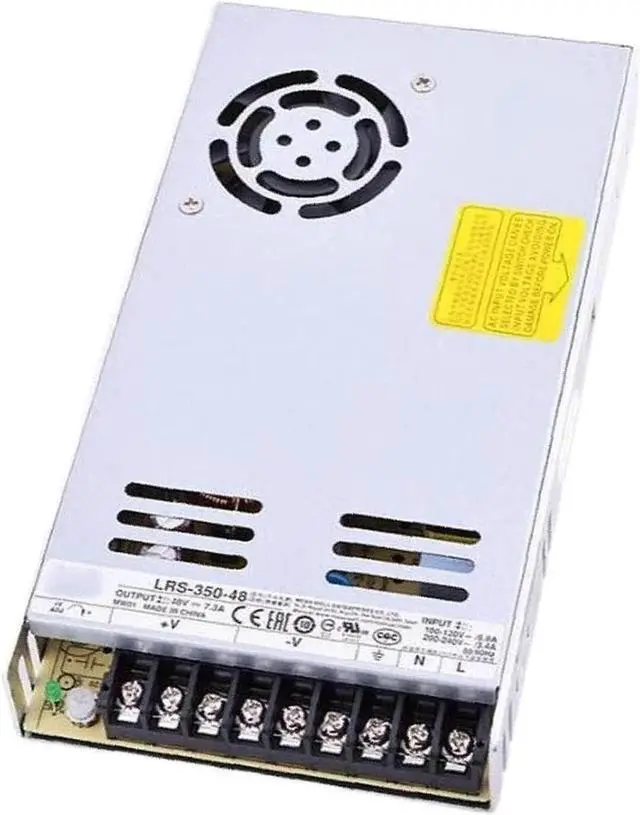

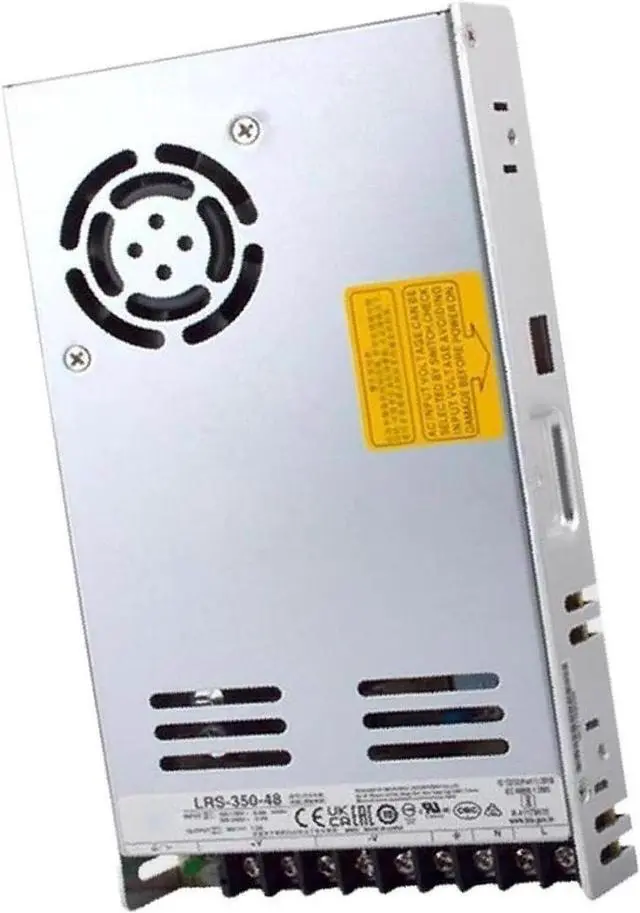

Enclosed Type 350.4W 48V 7.3A LRS-350-48 AC-DC Single Output LRS-350 Series Switching Power Supply

The LRS-350-48 is a high-efficiency, 350.4W single-output enclosed switching power supply designed for industrial applications. The power supply outputs 48V DC, 7.3A (350.4W) with up to 89% efficiency, ensuring optimal energy utilization and reducing operating costs. It features a wide input voltage range, selectable via a front panel switch: 90-132VAC or 180-264VAC for AC input, and 240-370VDC for DC input (activated when the switch is set to 230VAC). The compact 1U low-profile design (30mm height) and built-in long-life cooling fan enable reliable full-load operation over a wide temperature range of -25°C to +70°C, even in harsh environments. Key features include ultra-low no-load power consumption (<0.75W) that complies with global energy standards, comprehensive short-circuit, overload, overvoltage and overtemperature protection, and a rugged construction that can withstand 5G vibration testing.
