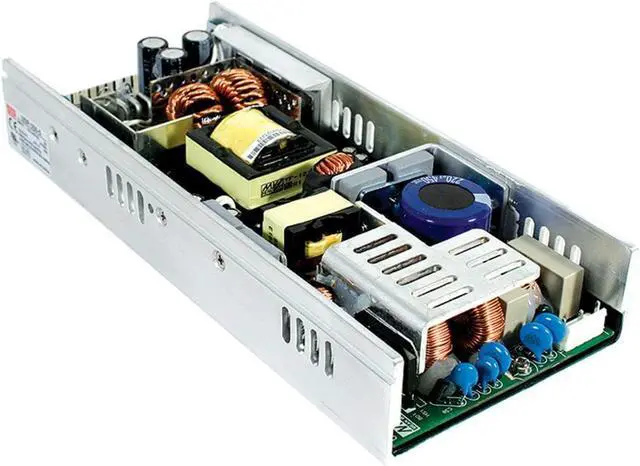

Mean Well Original USP-350-24 U-Bracket Switching Power Supplies 24V 14.6A

Universal AC input / Full range
Built-in active PFC
Protections: Short circuit / Overload /Over voltage /Over temperature
Optional current sharing(1+1) for USP-500-24/48
3 years warranty

Overview

Specs

Reviews

Features
Universal AC input / Full range
Built-in active PFC
Protections: Short circuit / Overload /Over voltage /Over temperature
Output wattage:
USP-150: 150W convection
USP-225: 150W convection, 225W with 18CFM forced air
USP-350: 300W convection, 350W with 23.5CFM forced air
USP-500: 400W convection, 500W with 23.5CFM forced air
High power density: 5.5W/in3 (USP-150);4.7W/in3 (USP-225); 6.32W/in3 (USP-350);6.2W/in3 (USP-500)
U-bracket low profile: 33mm(USP-150); 38mm(USP-225/300);41mm(USP-500)
Built-in remote ON/OFF control, remote sense, DC OK signal(USP-500)
Optional current sharing(1+1) for USP-500-24/48
3 years warranty
