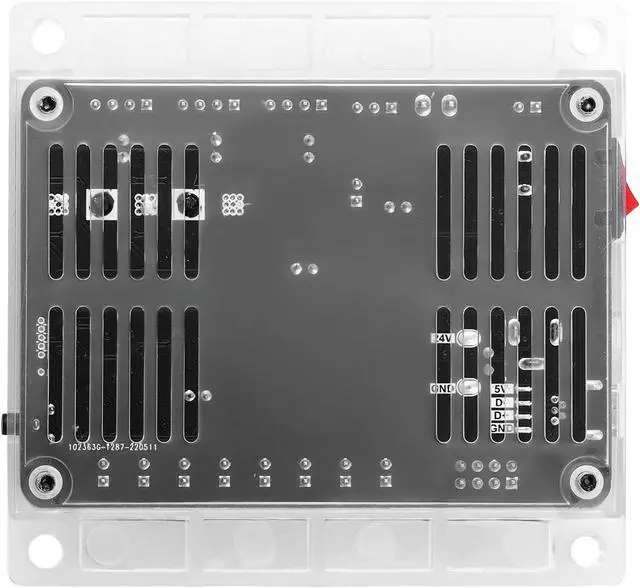

Alt view image 2 of 7 - SainSmart 3 Axis GRBL 1.1f CNC Controller Board with USB Port+USB Cable for DIY CNC Router Machine 1610 1810 2418 3018 3018Pro

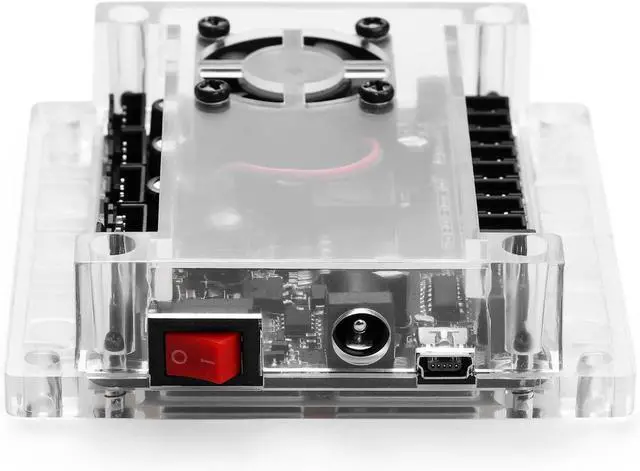

Alt view image 3 of 7 - SainSmart 3 Axis GRBL 1.1f CNC Controller Board with USB Port+USB Cable for DIY CNC Router Machine 1610 1810 2418 3018 3018Pro

Alt view image 4 of 7 - SainSmart 3 Axis GRBL 1.1f CNC Controller Board with USB Port+USB Cable for DIY CNC Router Machine 1610 1810 2418 3018 3018Pro

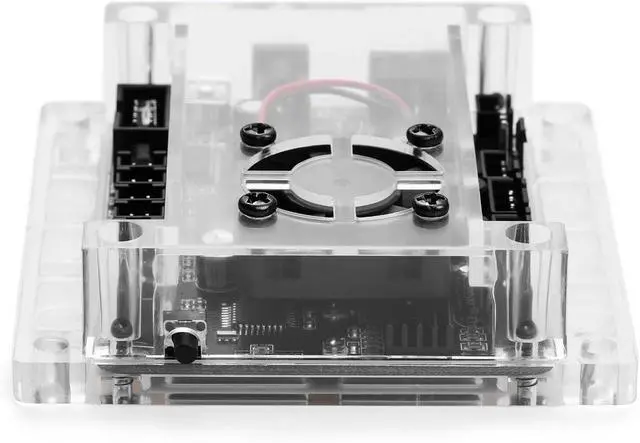

Alt view image 5 of 7 - SainSmart 3 Axis GRBL 1.1f CNC Controller Board with USB Port+USB Cable for DIY CNC Router Machine 1610 1810 2418 3018 3018Pro

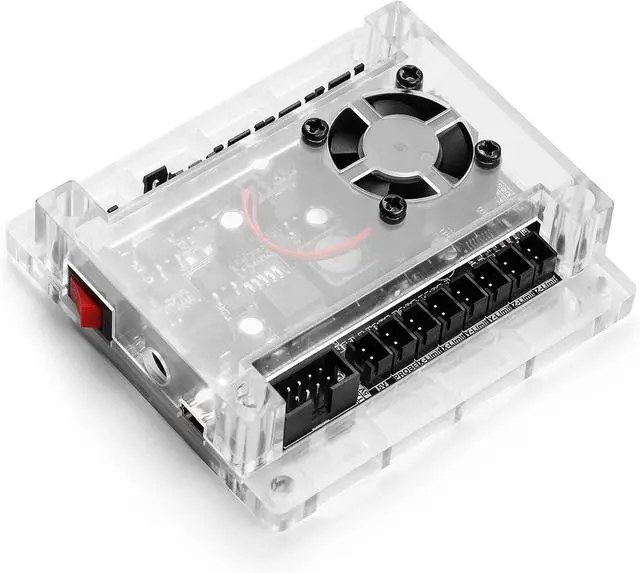

Alt view image 6 of 7 - SainSmart 3 Axis GRBL 1.1f CNC Controller Board with USB Port+USB Cable for DIY CNC Router Machine 1610 1810 2418 3018 3018Pro

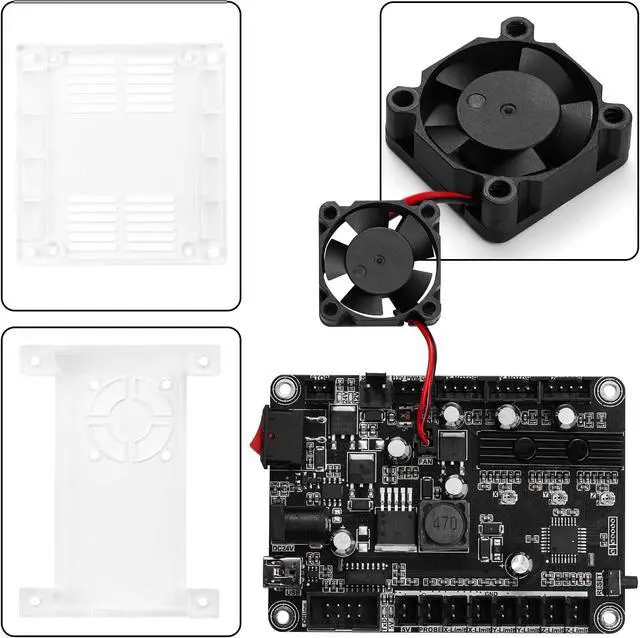

Alt view image 7 of 7 - SainSmart 3 Axis GRBL 1.1f CNC Controller Board with USB Port+USB Cable for DIY CNC Router Machine 1610 1810 2418 3018 3018Pro

Shop All SAINSMART Products | Visit Zhanfu Technology Co., Limited Store

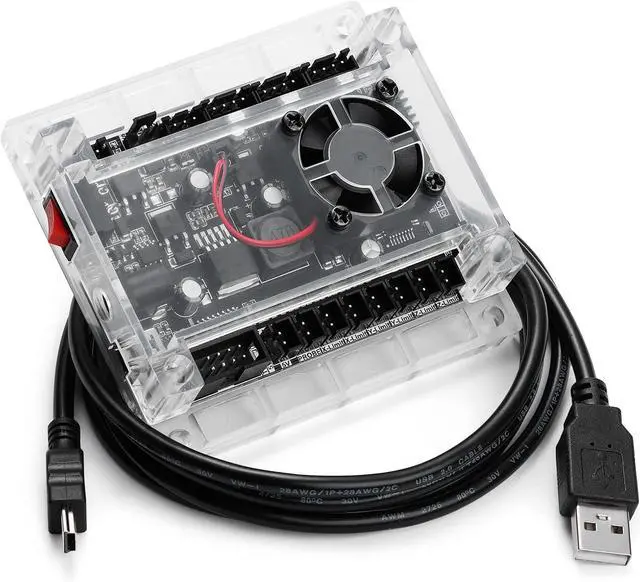

SainSmart 3 Axis GRBL 1.1f CNC Controller Board with USB Port+USB Cable for DIY CNC Router Machine 1610 1810 2418 3018 3018Pro

This controller board is designed for Genmitsu CNC Router 1810-PRO, 3018, and 3018-PRO. It can perfectly compatible with SainSmart Blue Laser Module
Software: GRBL controller, UniversalGcodeSender
Stepper motor drive: DRV8825; Spindle power: 150W; Input voltage: 24V (12-24V)

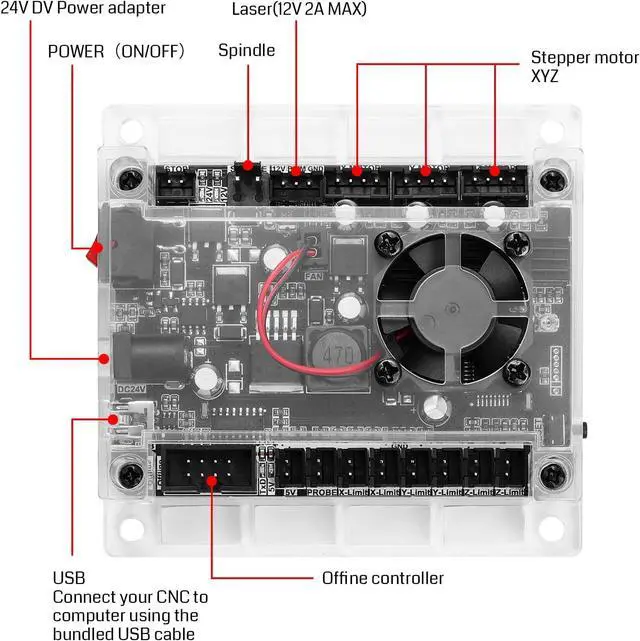

Support XYZ three-axis control, spindle, laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface " + s-")
Support stepper motor: 12V, the maximum current within 2A, recommended within 1.5A and additional heat. (Any stepper motor 42, 57)

Overview

Specs

Reviews

This controller board is designed for Genmitsu CNC Router 1810-PRO, 3018, and 3018-PRO. It can perfectly compatible with SainSmart Blue Laser Module
Software: GRBL controller, UniversalGcodeSender
Stepper motor drive: DRV8825; Spindle power: 150W; Input voltage: 24V (12-24V)
Support XYZ three-axis control, spindle, laser module. Support 3 pin and 2 pin lasers (the 2 pin lasers: please connect the white interface " + s-")
Support stepper motor: 12V, the maximum current within 2A, recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
