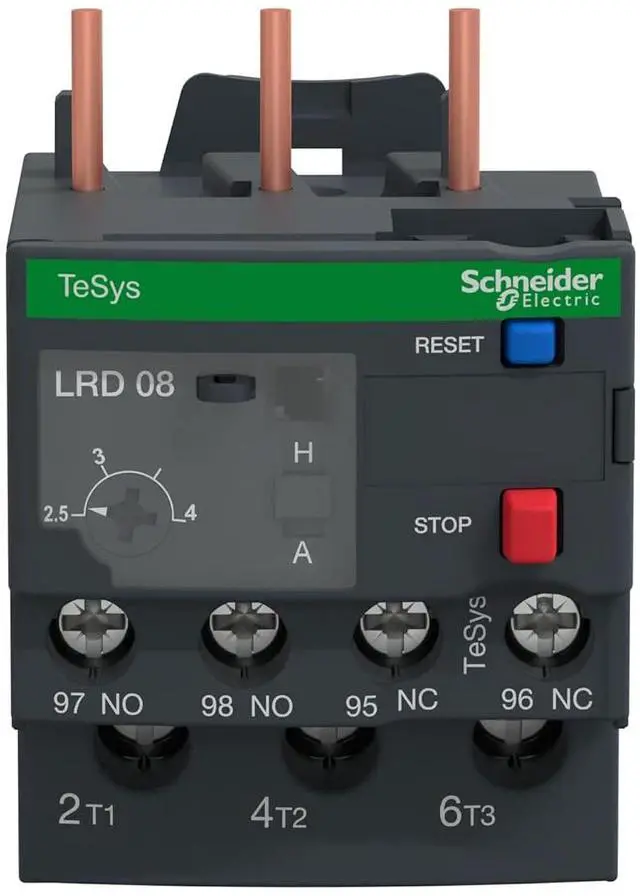

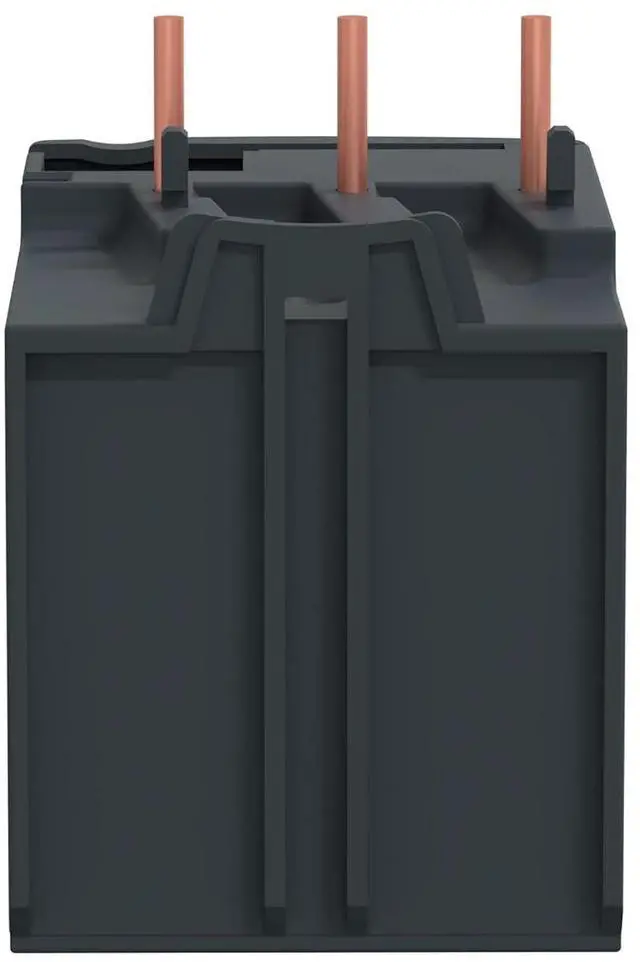

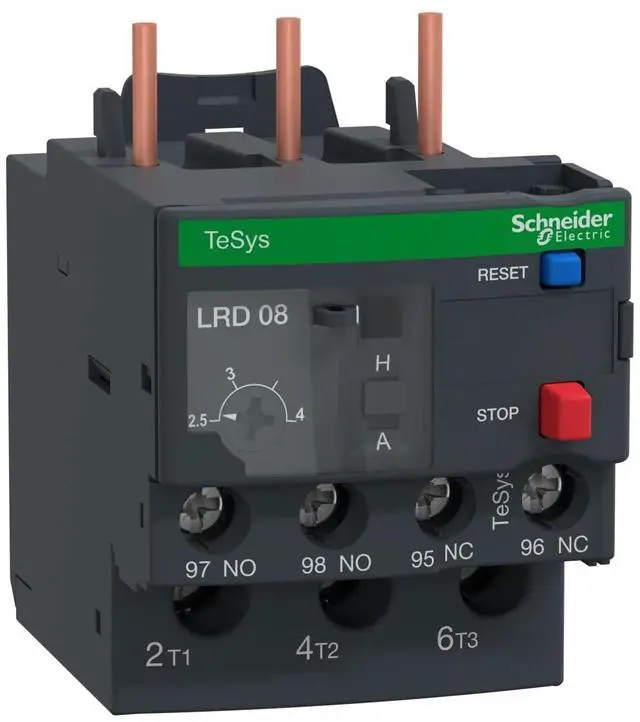

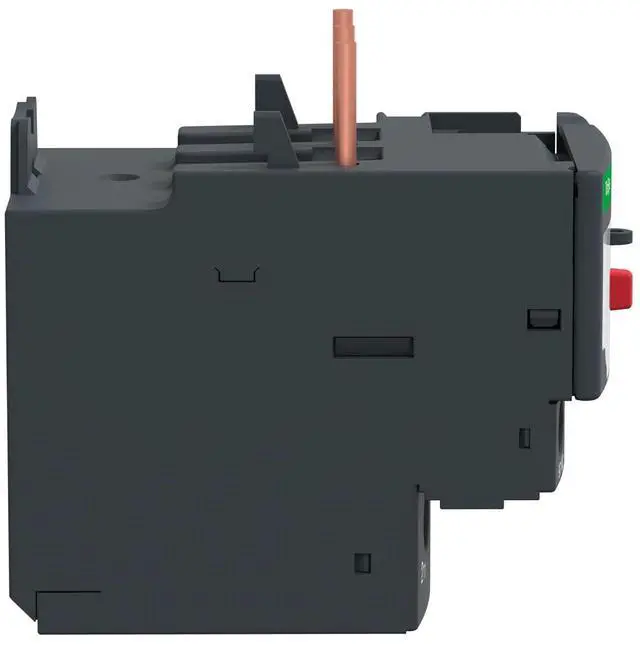

Schneider Electric - TeSys Deca Thermal Overload Relay - LRD Series, 2.5 to 4A, 690VAC, 1NO+1NC, Class 10A, Screw Clamp, Phase Unbalance Detection, Test and Reset Buttons, Contactor Mountable

MOTOR PROTECTION: TeSys Deca Thermal Overload Relays are intended to be used with a TeSys D Contactor. They are designed to protect A/C circuits and motors against overloads by detecting overcurrents and, along with the contactor, disconnecting the power to the motor.
IMPROVED MODEL: With a new modern look and feel, the LRD Series is easier to install and operate with multi-standard screws, using screw clamp terminals for their connections. Additionally, they can be directly mounted on the bottom terminals of a TeSys contactor, or on a plate or rail with specific accessories.

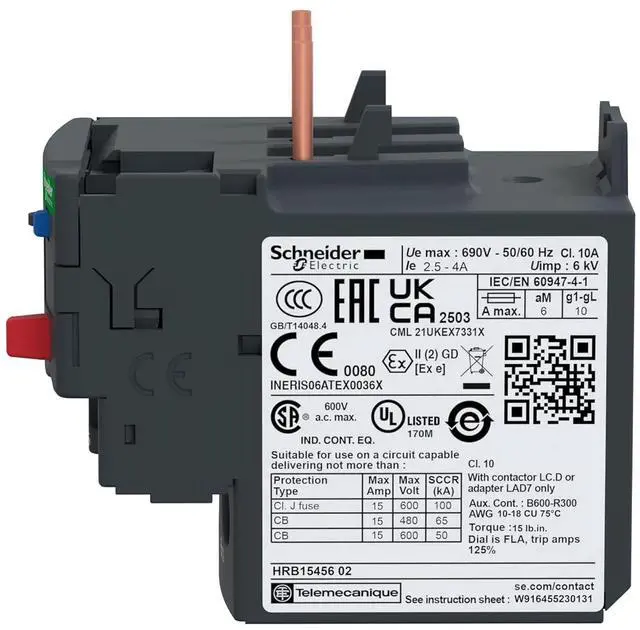

TECHNICAL SPECIFICATIONS: The LRD Series has a tripping class of 10A and a Ue rated operational voltage of 690VAC, and this specific model has a thermal range of 2.5 to 4A. It also has an IP20 degree of protection conforming to IEC standard 60529.
MULTIPLE FEATURES: These overload relays feature manual control via test and reset buttons, a manual / automatic reset selector, and trip signaling via 1NO+1NC auxiliary contacts and trip flag indicator.
ENVIRONMENTAL DATA: Schneider Electric aims to achieve Net Zero status by 2050 through supply chain partnerships, lower impact materials, and circularity via our ongoing "Use Better, Use Longer, Use Again" campaign to extend product lifetimes and recyclability.
