YEPLOOK 6Pin to 4 SATA SSD HDD Power Cable for Corsair RM1000, RM850, RM750, RM650, RM550, RM450 GOLD (2021) Type 4 Modular PSUs

YEPLOOK 6Pin to 4 SATA SSD HDD Power Cable for Corsair RM1000, RM850, RM750, RM650, RM550, RM450 GOLD (2021) Type 4 Modular Power, 50+15+15+15 CM 18AWG

*YEPLOOK Store Pre-Purchase Notes:

1. All images are for reference only. If you need to view real photos, please contact us.

2. Please check compatibility with us before you buy, mix use cables may cause damage.

3. We are responsible for quality inspection and customer support of cables sold direct from YEPLOOK.

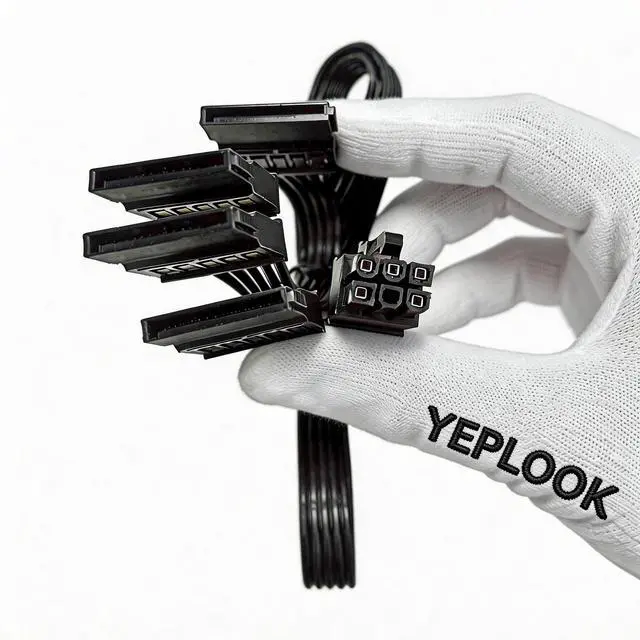

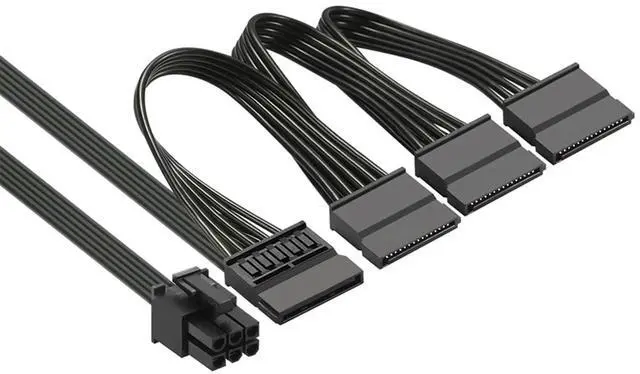

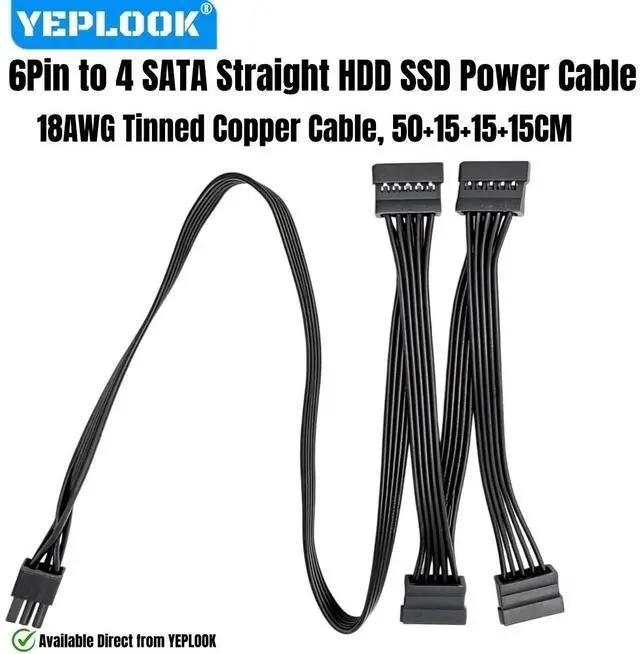

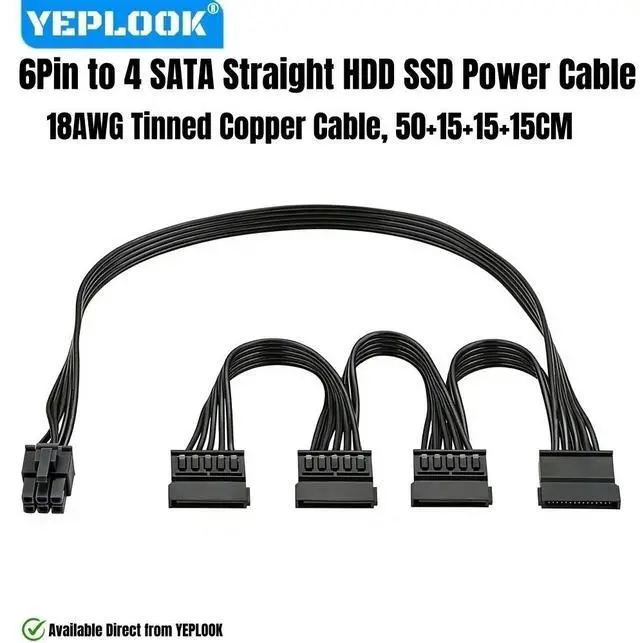

This 6Pin to 4x SATA Straight SSD HDD Power Cable is compatible with Corsair RM Gold series modular powers.
Such as for Corsair RM1000, RM850, RM750, RM650, RM550, RM450 GOLD Modular PSUs.

Not for Corsair AX1200 Gold.
Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.
Not for Corsair Type 5 modular powers. Not for Corsair RM850x SHIFT. Not for Corsair SF850, SF1000.
Not for modular powers of other brands and models.

Mix using cables may cause damage. If your modular power is not listed above, please check compatibility with us to ensure proper installation.

Description

Brand: YEPLOOK
Port 1: 6 Pin Male Connector
Port 2: 4 x SATA Male Connector Straight
Branch Cable Length: about 50+15+15+15CM
Total Cable Length: about 90CM/ 35.43 inch / 2.95 ft.
Cable Gauge: 18AWG standard tinned copper wire.
Advantages: Soft ribbon flat cables with good cable management. Easy to bend, suitable for chassis wiring. Tinned copper wires are good to prevent corrosion and provide a long lifespan.

Package List: 1 Piece 6Pin to 4x SATA Straight SSD HDD Power Cable for Corsair RM Gold Series Modular Powers.

How to Connect?

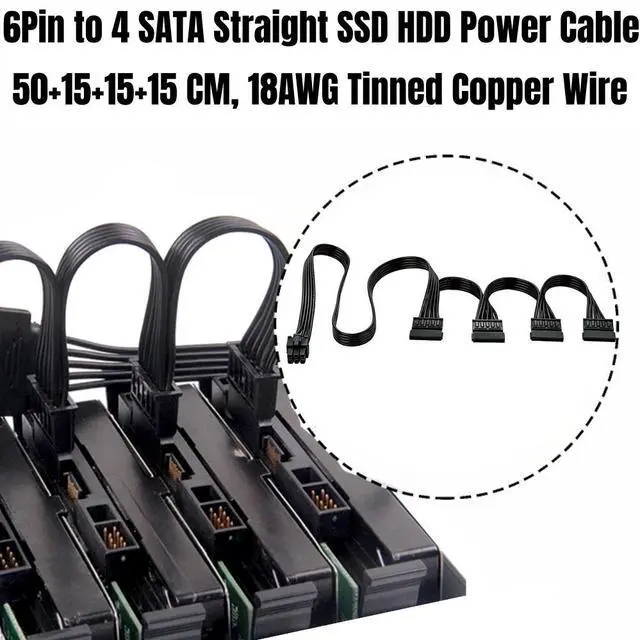

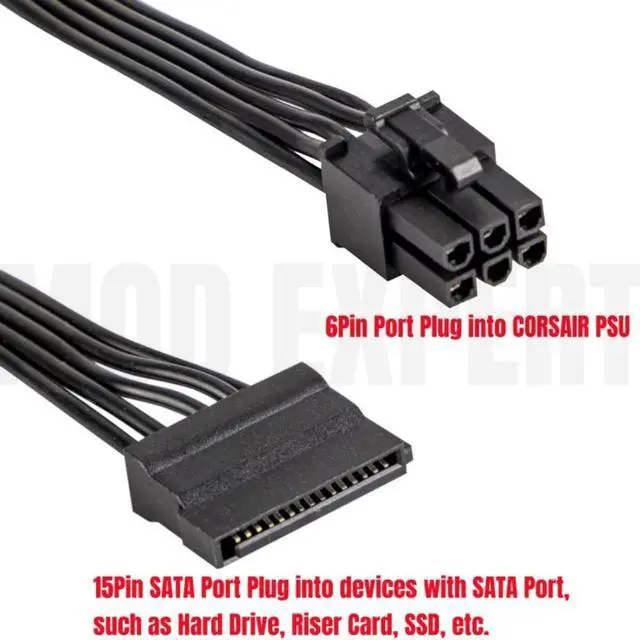

6Pin connector plug into modular power side. SATA connector plug into devices that need powered by SATA ports, Such as SSD, HDD Hard Disk Drive, Riser Cards, etc.

* There is an empty hole (NC) of the 6Pin, which is normal and default pin layout. Because SATA is only need 5 wires to power, not quality defect.
