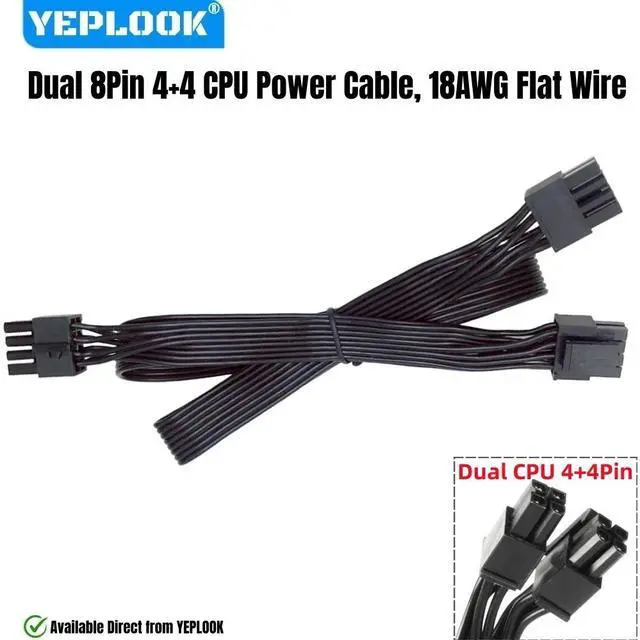

YEPLOOK PSU 8Pin to Dual 8Pin 4+4 CPU Power Cable for Corsair HX1500i, HX1200i, HX1000i HX850i, HX750i HX-i Series Modular Power

YEPLOOK PSU 8Pin to Dual 8Pin 4+4 CPU Power Cable for Corsair HX1500i, HX1200i, HX1000i HX850i, HX750i HX-i Series Modular Power

*YEPLOOK Store Pre-Purchase Notes:

1. All pictures are for reference only, please contact us for real photo if need.

2. Mix use cables may cause damage. Please check compatibility with us before you buy.

3. Not work with GPU graphics card. CPU 8Pin and EPS 4+4Pin male cannot be used intercha+F102eably.

4. Our technicians will inspect and test each cable before shipment. Don't worry about cable quality issues.

This Dual 8Pin 4+4 CPU power cable is compatible with Corsair HX-i modular powers. Such as HX1500i, HX1200i, HX1000i, HX850i, HX750i modular power supply units.
Not for Corsair Type 1 AX1200 Gold.
Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.
Not for Corsair Type 5 modular powers.
Not for modular powers of other brands and models.

Different modular powers generally use different power cables. Do not mix use cables between different brands or models. If your modular power is not mentioned, please check compatibility with us to ensure proper installation.

Description:
Interface: PSU 8Pin to Dual CPU 8Pin 4+4Pin
Cable Gauge: 18AWG standard tin-coating copper wire.
Cable Length: about 70cm / 27.56 inch / 2.3 ft.
Package List: 1x Dual 8Pin 4+4Pin EPS/ATX12V CPU Power Cable for Corsair HX-i series modular powers.

Adavantages:

1. Soft flat cables are easy to bend, suitable for cable management.
2. FLEXIBLE & DURABLE to prevent corrosion and provide a long lifespan.

3. The 4Pin CPU cable can supply up to 155 watts & the 8-pin CPU cable can supply up to 235 watts.

How to Connect?
PSU 8Pin male plug into power supply. (NOTE: this PSU 8pin male connector is ATX 8 pin, not pci-e 8 pin. )
CPU 8Pin (4+4Pin) plug into the motherboard. (NOTE: this CPU 8Pin could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

This CPU power cable use an 8-pin EPS12v. CPU cable that can be split into two 4-pin connectors.
If you want to connect our PSU into a 4-pin EPS motherboard port, simply pull the two halves of the connector apart and connect one half into the motherboard port.
