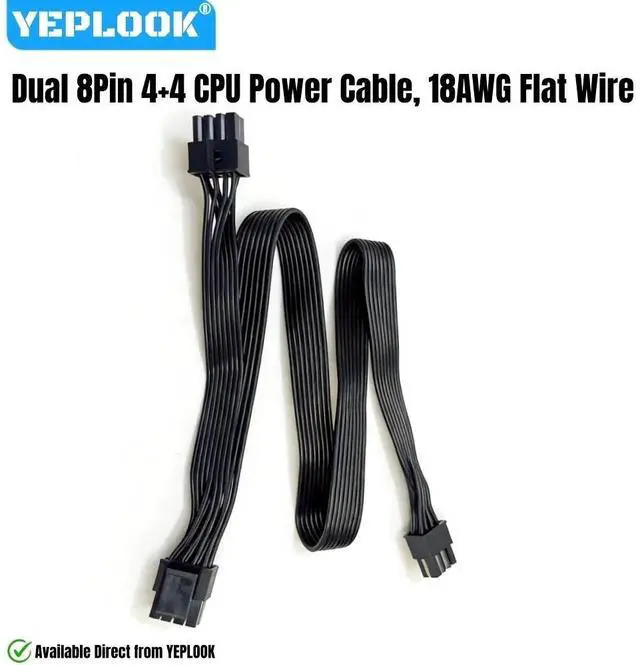

YEPLOOK Dual CPU Power Cable EPS/ATX12V 8Pin 4+4 for Corsair Type 3/Type4 PSUs, RM-i RM-x RM-e AX-i HX HX-i RM CS-M CX-M TX-M SF Modular

Dual CPU Power Cable EPS/ATX12V 8Pin 4+4 for Corsair Type 3/Type4 PSUs, RM-i RM-x RM-e AX-i HX HX-i RM CS-M CX-M TX-M SF Modular Powers

*F100 Pre-Purchase Notes:

1. All pictures are for reference only, please contact us for real photo if need.

2. Mix use cables may cause damage. Please check compatibility with us before you buy.

3. Not work with GPU graphics card. CPU 8Pin and EPS 4+4Pin male cannot be used interchangeably.

4. Our technicians will inspect and test each cable before shipment. Don't worry about cable quality issues.

The Dual CPU Power Cable is Compatible with Corsair TYPE 3 & TYPE 4 Modular Powers.

For Corsair Type 3 Modular Powers:
For Corsair AX-i: AX1500i, AX1200i, AX860i, AX760i
For Corsair HX-i: HX1200i, HX1000i, HX850i, HX750i, HX650i, HX550i (Blue label)
For Corsair HX Gold: HX1050, HX850, HX750, HX650
For Corsair RM: RM1000, RM850, RM750, RM650, RM550, RM450 (Yellow label)
For Corsair CX-M: CX850M, CX750M, CX600M, CX500M, CX450M, CX430M
For Corsair CX: CX750, CX650, CX600, CX550, CX500, CX450, CX430
For Corsair CS-M: CS850M, CS750M, CS650M, CS550M, CS450M
For Corsair TX-M: TX850M, TX750M, TX650M, TX550M

For Corsair Type 4 Modular Powers:

For Corsair AX1600i, AX1000 Titanium, AX850 Titanium
For Corsair SF: SF750, SF600, SF450
For Corsair RM Gold: RM850, RM750, RM650, RM550, RM450 Gold (White label 2021 Version)
For Corsair RM-x: RM1000x, RM850x, RM750x, RM650x, RM550x (Not for RM-x Shift Version)
For Corsair RM-i: RM1000i, RM850i, RM750i, RM650i, RM550i
For Corsair RM-e: RM1200e, RM1000e, RM850e, RM750e
For Corsair HX Platinum: HX1200, HX1000, HX850, HX750 Platinum (White label)
For Corsair HX-i Platinum: HX1500i, HX1200i, HX1000i (White label Type 4 Version)

Not for Corsair AX1200 Gold.
Not for Corsair Type 2 AX850 Gold, AX750 Gold, AX650 Gold.
Not for Corsair Type 5 modular powers.
Not for modular powers of other brands and models.

Different modular powers generally use different power cables. Do not mix use cables between different brands or models. If your modular power is not mentioned, please check compatibility with us to ensure proper installation.

Description:

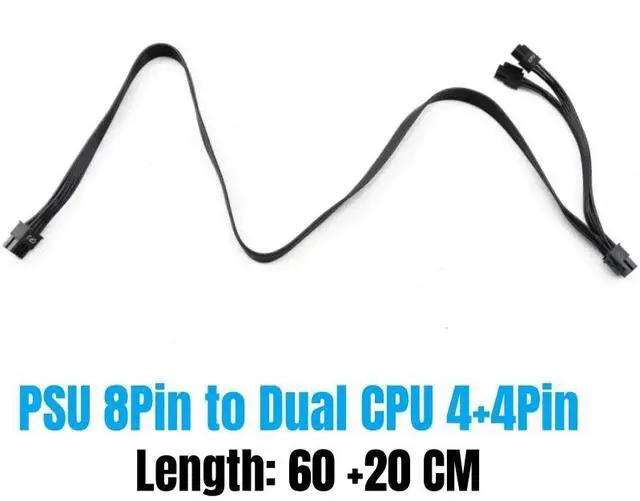

Interface: PSU 8Pin to Dual CPU 8Pin 4+4Pin
Cable Gauge: 18AWG standard tin-coating copper wire.
Cable Length: about 70cm / 27.56 inch / 2.3 ft. F100
Package List: 1x Dual 8Pin 4+4Pin EPS/ATX12V CPU Power Cable for Corsair Type 3 & Type 4 series modular powers.

Adavantages:

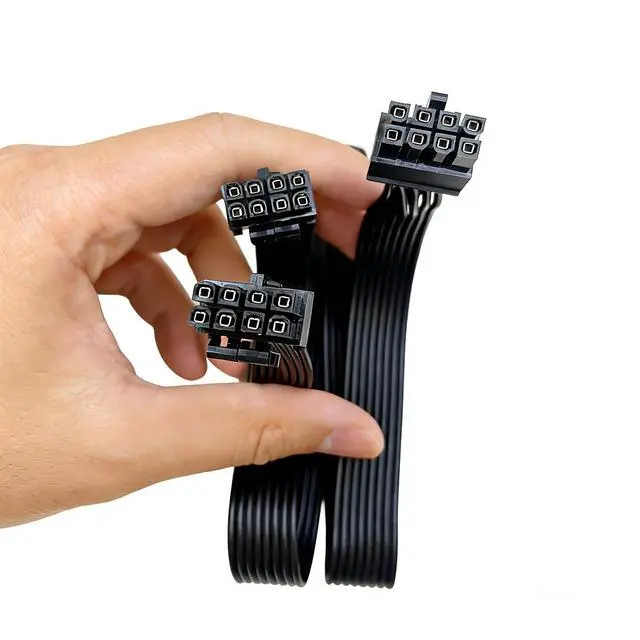

1. Soft flat cables are easy to bend, suitable for cable management.
2. FLEXIBLE & DURABLE to prevent corrosion and provide a long lifespan.

3. The 4Pin CPU cable can supply up to 155 watts & the 8-pin CPU cable can supply up to 235 watts.

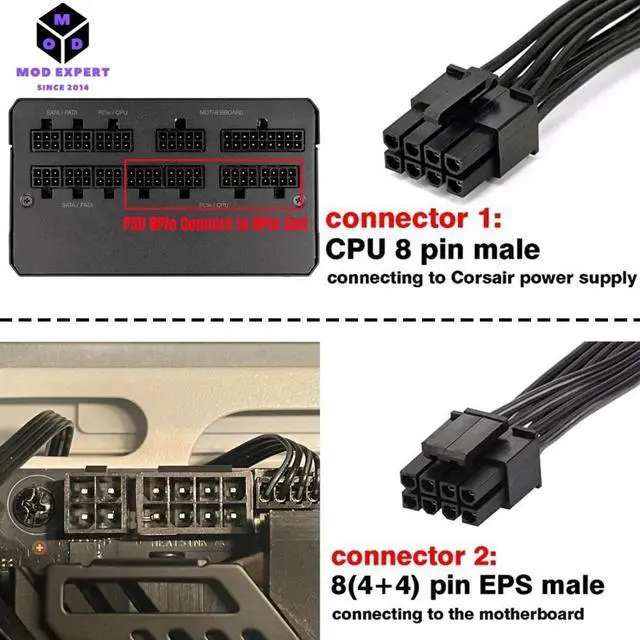

How to Connect?
PSU 8Pin male plug into power supply. (NOTE: this PSU 8pin male connector is ATX 8 pin, not pci-e 8 pin. )
CPU 8Pin (4+4Pin) plug into the motherboard. (NOTE: this CPU 8Pin could be used as EPS ATX 8Pin or P4 ATX 4Pin by sliding on/off the 4Pin. )

This CPU power cable use an 8-pin EPS12v. CPU cable that can be split into two 4-pin connectors.
If you want to connect our PSU into a 4-pin EPS motherboard port, simply pull the two halves of the connector apart and connect one half into the motherboard port.
