Dual LAN Mini PC Windows 7 Fanless Mini PC Intel Celeron J1900 RS485 COM USB WIFI industrial PC Desktop Computer 8GB Ram 64GB SSD

About this item

Intel Pentium N3520/Celeron N2920 Processor, 4 Cores, 4 Threads, 2.17 GHz Base Frequency, 2.42 GHz Max Turbo Frequency, 2 MB Intel Smart Cache, 10W TDP.

Intel HD Graphics for Intel Atom Processor Z3700 Series, 313MHz Graphics Base Frequency, 854MHz Graphics Max Dynamic Frequency.

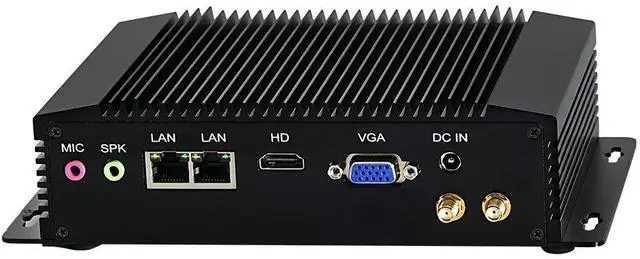

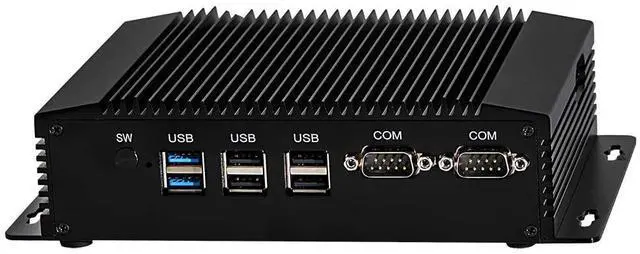

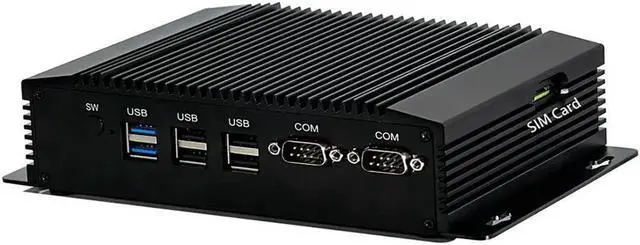

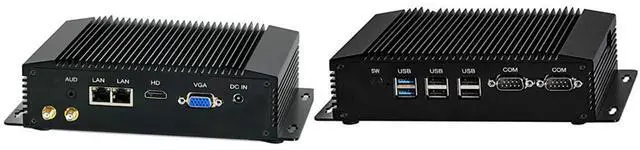

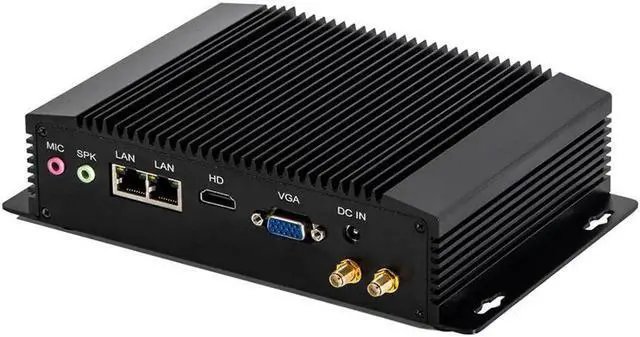

Front-Panel: 1xPower Switch Button, 1xLED Power Indicator, 2xUSB 3.0, 4xUSB 2.0, 2xCOM. Back-Panel: 1x12V DC input, 1xSPK, 1xMIC, 1xHD port, 1xVGA port, 2xLAN Port, 2xWi-Fi Connectors for Antennas. Side-Panel: 1xSIM Card Slot.

Mini PC, Power Adapter, Power Cable, Wi-Fi Antennas, Bracket Mount, 1xSet SATA Power and Data Cables (for 2.5'' drive), Screws.

Function

1. Support 4G module with SIM card slot

2. Support soft switching 2 RS232 to RS422 RS485 in BIOS.

3. Support 256-level watchdog

4. Support 8 bit GPIO

5. Support diskless boot/restore AC power loss/Wake on lan function

6. Support dual screen (VGA+HDMI) for simultaneous display or synchronous different display

KINDLY BE ADVISED

1. The Operating System is Windows 10 Pro; It is licensed and activated before shipping but pnoduct key.

2. The CPU is available for Pentium N3520 and Celeron N2920, It will be shipped with any of them at random. Pentium N3520: 4 Cores, 4 Threads, 2.17GHz Base Frequency, 2.42GHz Max Turbo Frequency, 2MB Cache, 10W TDP. Celeron N2920: 4 Cores, 4 Threads, 1.86GHz Base Frequency, 2.00GHz Burst Frequency, 2MB Cache, 10W TDP.

3. Support Wake On Lan. Support Auto restart after power outage restoration.

4. Fanless passive cooling design, silent solution that's ultra energy-efficient.the advanced fanless passive cooling design maximizes heat dissipation, meaning all operations can be conducted in absolute silence. business friendly features, 0 noise,low consumption,very slim.

Model Number: Partaker I25

Color: Black

Material: Aluminum

CPU: Intel Core J1900/N3520/N2920 processor , ship any one of them

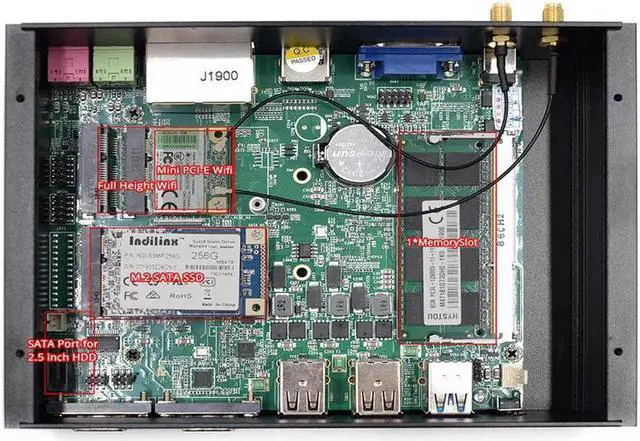

Memory: 1* SO-DIMM DDR3L 1333, max. 8GB RAM

Storage: 1* Msata SSD+1* 2.5 Inch HDD

Expansion: 1 * MSATA3.0, 3Gb/s; 1 * SATA3.0 , 6Gb/s+ 1 * MSATA SSD, 1 * WiFi module/3G 4G module

Audio Cards: ALC892

Network Card: 2* Intel i211 10/100/1000 BaseT LAN

WiFi: 802.11.b/g/n

Bluetooth: Optional (Default without this function, please do need to leave us message on the order, thank you)

I/O Port: 2*LAN+ 2*COM (RS232 RS422 RS485)+ 1*VGA+ 1*HD+ 2*USB 3.0+ 4* USB2.0+ Mic+ Spk+Sim Card Slot

Power: DC100-240V AC/50-60Hz, DC 12V/3A

Operating Temperature: 0°C~70°C Centigrade (32°F~140°F)

Storage Temperature: -20°C~80°C Centigrade (-68°F~176°F)

Relative Humidity: 10%~90% (non-condensing)

Mini PC Stand: Yes

Vesa Mount: Optional

Weight: 1.5kgs

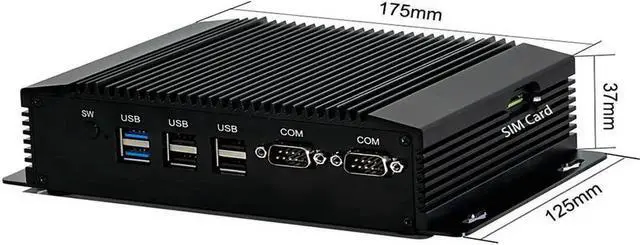

Measurement: 175*130*36mm

Consumption: 10W

Motherboard Design: Fanless

Function: 1. Support 4G module with SIM card slot

2. Support soft switching 2 RS232 to RS422 RS485 in BIOS.

3. Support 256-level watchdog

4. Support 8 bit GPIO

Warranty: 3 years

System Support: Windows 7/8/8.1/10,WES7/8,Linux Ubuntu,Vxworks etc;

System Default Option: Windows 10 pro as the default option;

ATTENTION: Barebone, Single RAM, Single SSD or SSD+HDD without any system.

Linux ubuntu or other OS, Do need to leave us message on the order, thank you.
