Industrial PC, Fanless Mini PC, IPC, Windows 11 or Linux Ubuntu, 4G, WOL, Watchdog Supported, I7 7510U 7560U, I27, 2 x LAN, GPIO, 6 x COM RS232 422 485, 8G RAM, 128G SSD

Model Number: Partaker I27

Material: Aluminum

Type: IPC type with mounting ears

CPU: Intel I7 7510U / 7560U, ship one of them

Memory: 1 x SO-DIMM DDR4-2133, max. 32GB

Storage: 1 x mSATA SSD, 1 x M. 2 2280 SATA/NVME SSD, 1 x 2.5 Inch SATA SSD/HDD

Audio: ALC662

Network: 2 x Intel 2.5G bE 225-V B3 / I226-V

WiFi: 802.11 ac 2.4 and 5Ghz, with SIM slot, 4G could be customized, contact us if need

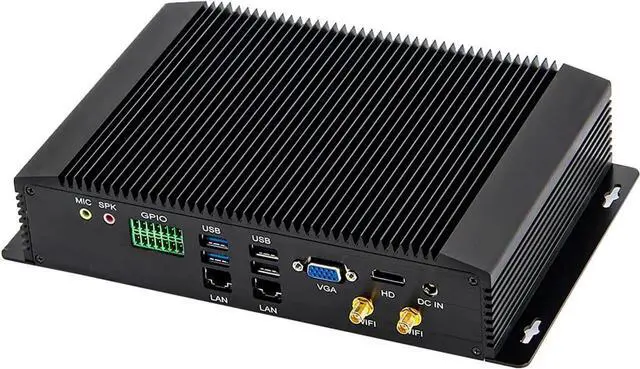

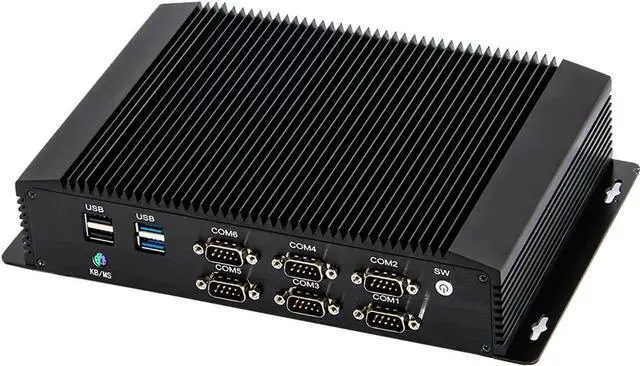

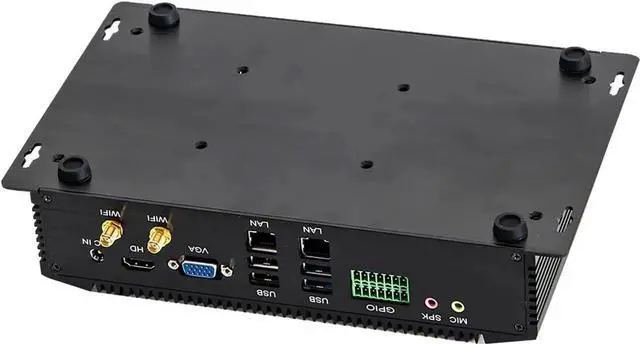

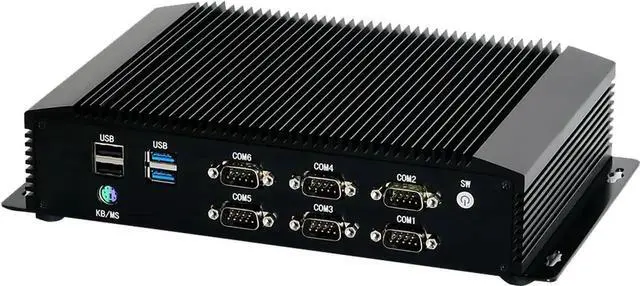

I/O Port: 4 x USB 3.0, 4 x USB 2.0, 2 x LAN, VGA, HDMI, GPIO, 6 x COM, DC, SW, PS/2

Power: DC100-240V AC/50-60Hz, DC 12V5A

Operating Temperature: -10°C~60°C

Storage Temperature: -20°C~80°C

Relative Humidity: 10%~90% non-condensing

Weight: 1.25 kgs

Measurement: 230 x 175 x 50mm

Consumption: 15W

Cooling system: Fanless

Function: 1. Green ultra-low power consumption, 7 x 24 hours

2.6 x COM supports COM1 COM2 for RS232 RS422 RS485 soft switching under BIOS

3.8 -bit GPIO for industrial equipment needs

4. Watchdog for 256-level

5. Support 4G network module with sim slot onboard, wake on Lan, automatic boot after power failure, resume by alarm, PXE lan boot function

Packing List: Partaker I27 industrial pc, power supply, power cord, WiFi antennas, warranty card

System Support: Windows 10/11, Linux Ubuntu etc

System Default Option: Windows 11 pro in English

ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
